Overview

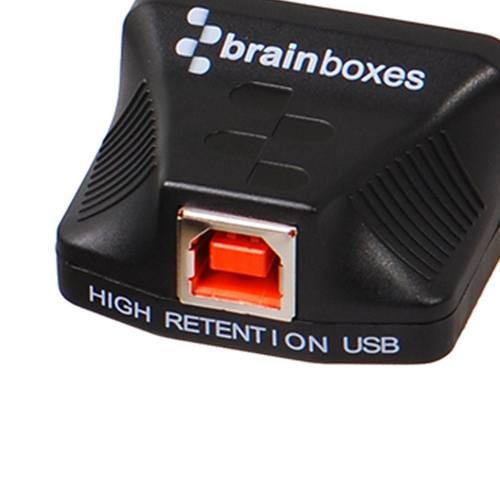

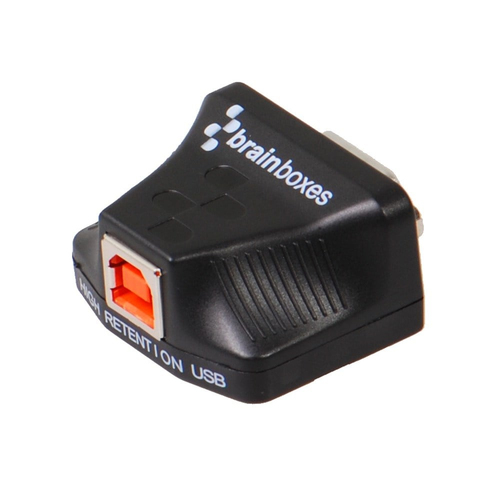

Tough ultra small USB-C to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection, comes with 1m USB-B to USB-C cable .Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values. We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019
Specifications
Ports & interfaces
| Connector 1 | USB-C |
|---|
| Connector 2 | DB9 |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Male |
|---|
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
| USB version | 2.0 |
|---|
| Cable length | 1 m |
|---|
Performance
| Product colour | Black |
|---|
| Data transfer rate | 0.48 Gbit/s |
|---|
| Data bits | 7, 8 |
|---|
| Stop bits | 1, 2 |
|---|
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
|---|
| Baud rate | 921.6 Kbit/s |
|---|
| Parity bit | Even, Mark, No, Odd, Space |
|---|
| FIFO (First In, First Out) | 512 B |
|---|
| Plug and Play | Yes |
|---|
| Compatible operating systems | Microsoft Windows 10
Microsoft Windows 8 32 bit & 64 bit Editions
Raspberry Pi
Microsoft Windows 7 32 bit & 64 bit Editions
Windows Server 2008 32 bit & 64 bit Editions
Windows Vista 32 bit & 64 bit Editions
Mac OS X
Windows XP 32 bit & 64 bit Editions
Linux |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 80 °C |
|---|
Certificates
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
|---|

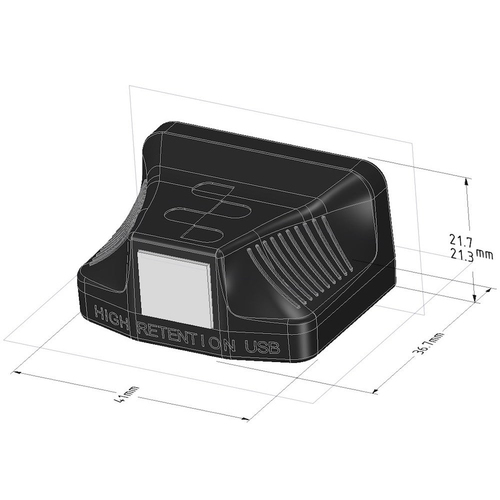

Weight & dimensions
| Width | 38 mm |
|---|
| Depth | 41 mm |
|---|
| Height | 22 mm |
|---|
| Weight | 24 g |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
| Cables included | USB Type-A to USB Type-B |
|---|
Packaging data
| Package width | 135 mm |
|---|
| Package depth | 160 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 155 g |
|---|
Logistics data
| Export Control Classification Number (ECCN) | 4A994 |
|---|
| Harmonized System (HS) code | 84718 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
