BRAINBOXES LTD US-757
View 1 View 2 View 3
BRAINBOXES LTD

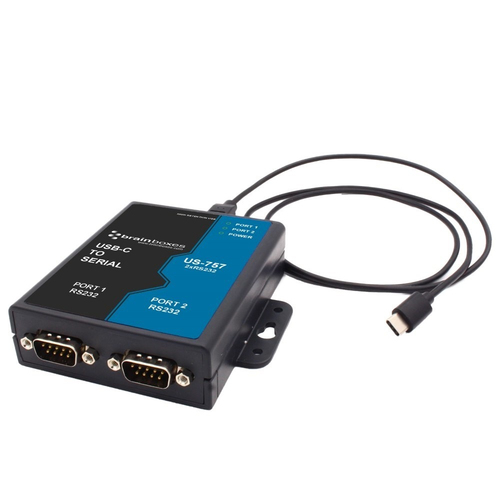

Brainboxes USB-C to 2 Port RS232 Serial Server Hub

Part number US-757

USB-C 2 PORT USB RS232 SERIAL LIGHT INDUSTRIAL HUB +32F TO +140F

  • 2 port RS-232 USB-C to serial adapter
  • Data rate from 300 to 921,600 baud

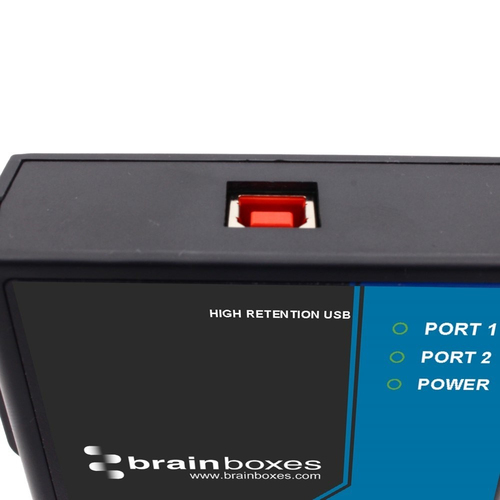

  • High Retention USB Socket with 1m USB-B to USB-C cable
  • Drivers for all popular operating systems including Windows 10
  • Works where many other USB to Serial devices do not
Manufacturer
BRAINBOXES LTD
Part number
US-757
Condition
New
Category
Cables › Cables/Connectors

Overview

USB-C to Serial adapter providing two RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte transmit and 384 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. High retention USB port gives a secure connection.Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019.

Specifications

Ports & interfaces
Host interfaceUSB Type-C
Host interface genderMale
Output interfaceSerial
Serial ports quantity2
Serial interface typeRS-232
Design
InternalNo
Product colourBlack
LED indicatorsStatus
Country of originUnited Kingdom
Features
Baud rate1000 Kbit/s
FIFO (First In, First Out)256 B
Data bits5, 6, 7, 8
Stop bits1, 1.5, 2
Flow control supportYes
Parity bitEven, Mark, No, Odd, Space
Flow Control typeDTR/DSR, RTS/CTS, XON/XOFF
Plug and PlayYes
Export Control Classification Number (ECCN)4A994
Power
Output voltage3.3 V
USB poweredYes
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-40 - 80 °C
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedYes
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008, Windows Server 2008 x64
Technical details
Compliance certificatesRoHS, CE, Federal Communications Commission (FCC)
Weight & dimensions
Width102 mm
Depth100 mm
Height27 mm
Weight109 g
Packaging data
Cables includedUSB Type-A to USB Type-B
Package width160 mm
Package depth49 mm
Package height135 mm
Package weight260 g
Logistics data
Harmonized System (HS) code84718
Other features
Cable length1 m

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
