Brainboxes USB-C to 1 Port 422/485 Industrial USB to Serial Adaptor
Part number US-720
USB-C 1 PORT USB 422/485 SERIAL INDUST L -40F TO +176F TEMP RANGE
- 1 port RS-422/485 USB-C to serial adapter
- High retention USB connector with 1m USB-B to USB-C cable
- Our smallest form factor USB-C to Serial adaptor
- Works where many other USB to Serial devices do not
- Industrial Specification -40 °C to +80 °C / -40 °F to +176 °F
- Manufacturer
- BRAINBOXES LTD
- Part number
- US-720
- Term
- Per Ingram SKU 9AK570
- Condition
- New
- Category
- Cables › Cables/Connectors
- 1GPA category
- Hardware
Overview

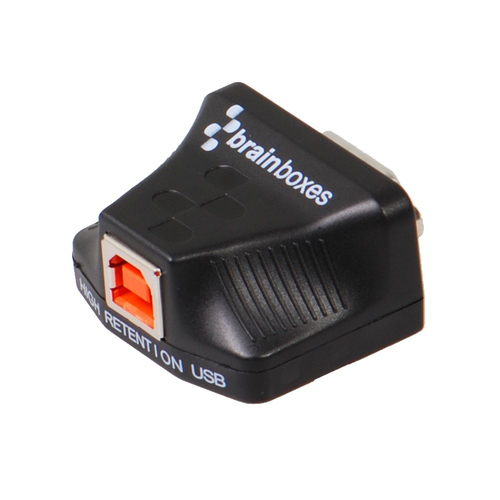

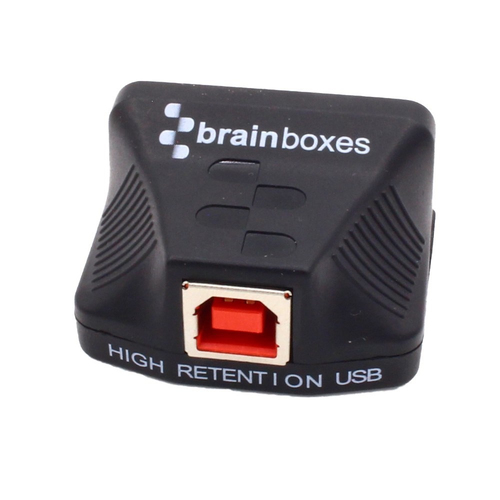

Tough ultra small USB-C to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection, comes with 1m USB-B to USB-C cable .
Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.
We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019
Specifications
| Connector 1 | USB-C |
|---|---|
| Connector 2 | DB9 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | 2.0 |
| Cable length | 0.5 m |
| Product colour | Black |
|---|---|
| Full duplex | Yes |
| Data transfer rate | 0.48 Gbit/s |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 2 |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 512 B |
| Plug and Play | Yes |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Operating temperature (T-T) | 0 - 60 °C |
|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
|---|

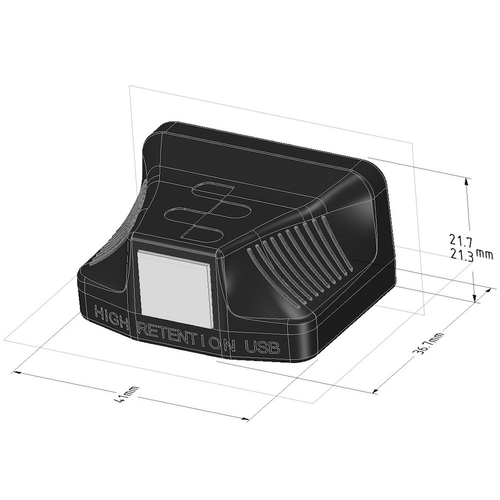

| Width | 41 mm |
|---|---|
| Depth | 38 mm |
| Height | 22 mm |
| Weight | 24 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| Package width | 160 mm |
|---|---|
| Package depth | 49 mm |
| Package height | 135 mm |
| Package weight | 156 g |
| Package type | Box |
| Export Control Classification Number (ECCN) | 4A994 |
|---|---|
| Harmonized System (HS) code | 84718 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
