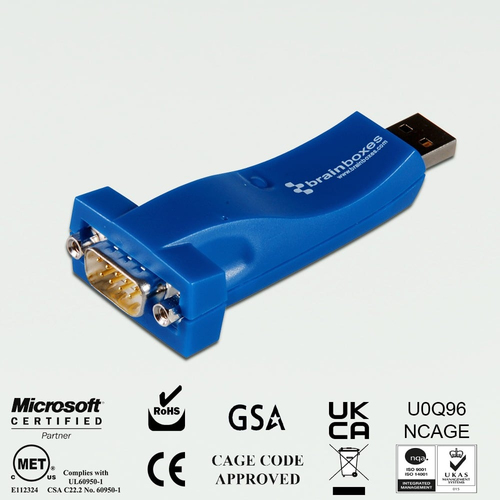

Brainboxes USB 1 Port RS422/485 1MBaud
Part number US-324
1PORT USB TO SERIAL RS422 /485

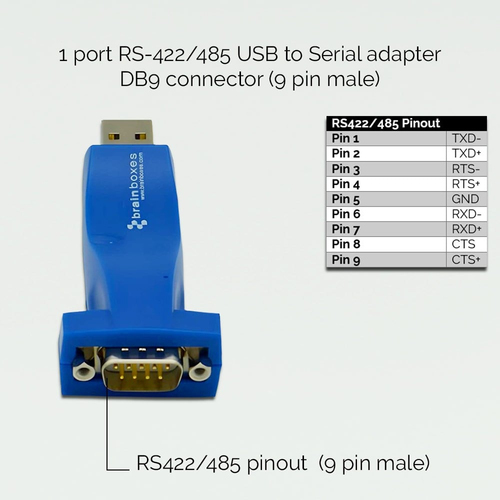

- 1 Port RS-422/485 USB to Serial Adapter
- Data rate from 300 to 921,600 baud

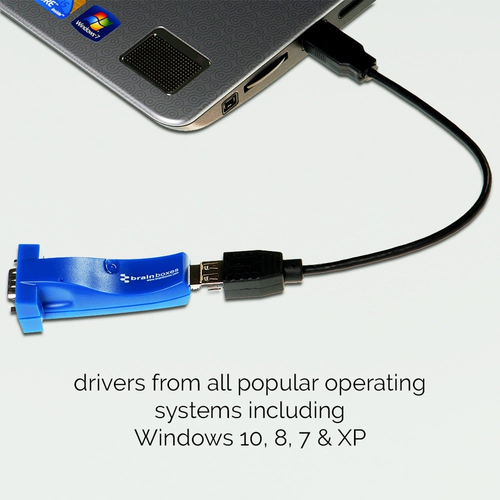

- Drivers for all popular operating systems including Windows 10, 8, 7 and XP
- Works where many other USB to Serial devices do not

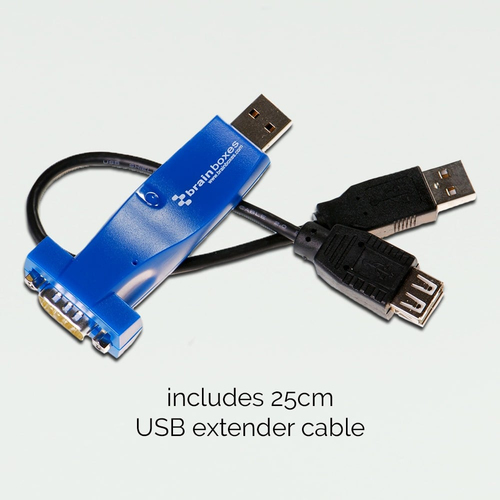

- Includes 25cm USB Extender cable
- Manufacturer
- BRAINBOXES LTD
- Part number
- US-324
- Condition
- New
- Category
- Input & Output Devices › Serial/Parallel & Io
Overview
USB to Serial adapter providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.
Specifications
| Connector 1 | USB A |
|---|---|
| Connector 2 | DB9 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | 2.0 |
| Connector(s) | 1x RS422/485 |
| Cable length | 0.25 m |
| Product colour | Blue |
|---|---|
| Full duplex | Yes |
| Data transfer rate | 0.48 Gbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| Compatible operating systems | Win 7, Vista, XP |
| Operating temperature (T-T) | 0 - 60 °C |
|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
|---|---|
| Certification | CE, ROHS, WEEE |
| Width | 35 mm |
|---|---|
| Depth | 89 mm |
| Height | 20 mm |
| Weight | 23 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Cables included | USB |
| Package width | 135 mm |
|---|---|
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 133 g |
| Export Control Classification Number (ECCN) | 4A994 |
|---|---|
| Harmonized System (HS) code | 84718 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
