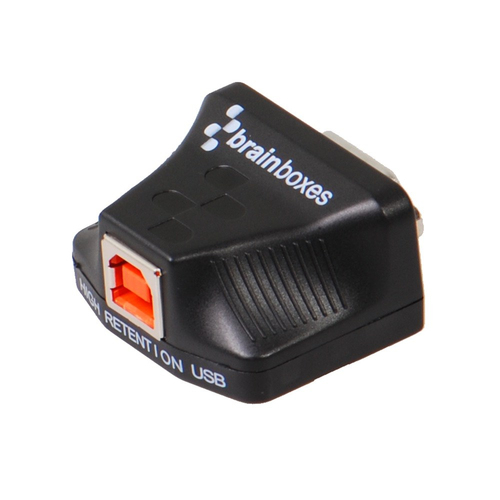

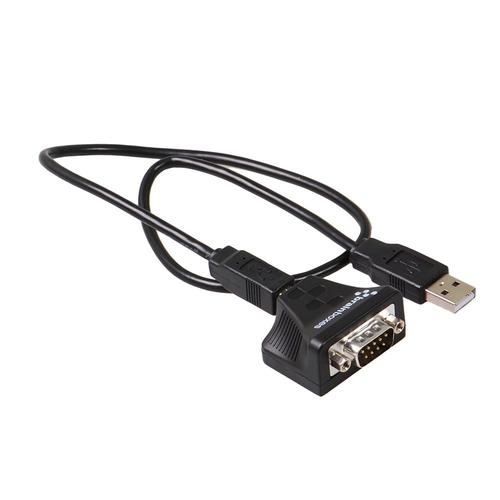

Brainboxes Compact 1 Port RS422/485 High Retention USB 1MBaud
Part number US-320
RS 422/485 HIGH RETENTION USB CONNECTOR. OPERATING TEMPERATURE RANGE OF -40C TO
- 1 Port RS-422/485 USB to Serial Adapter

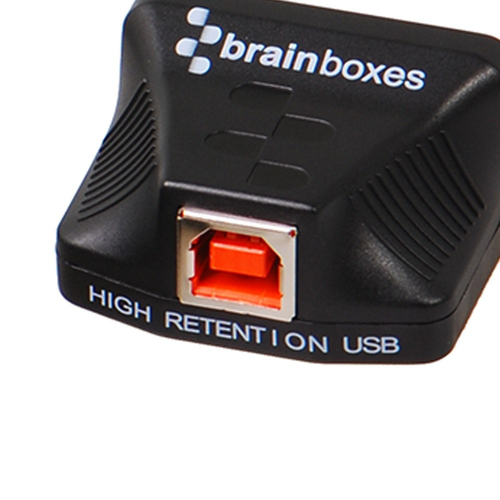

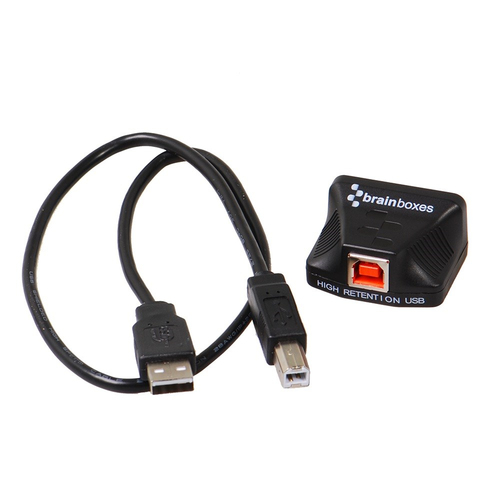

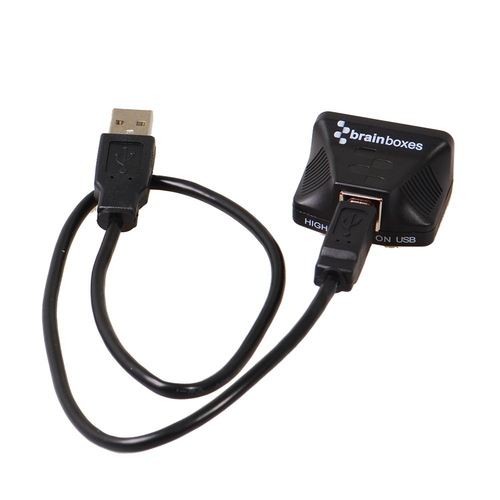

- High Retention USB connector with 50cm USB cable
- Our smallest form factor USB to Serial
- Works where many other USB to Serial devices do not. Drivers for Windows 10, 8, 7, XP, Mac and Linux
- Industrial Specification -40 °C to +80 °C / -40 °F to +176 °F
- Manufacturer
- BRAINBOXES LTD
- Part number
- US-320
- Condition
- New
- Category
- Cables › Cables/Connectors
- 1GPA category
- Hardware
Overview
Tough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection.
Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.
We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.
Specifications

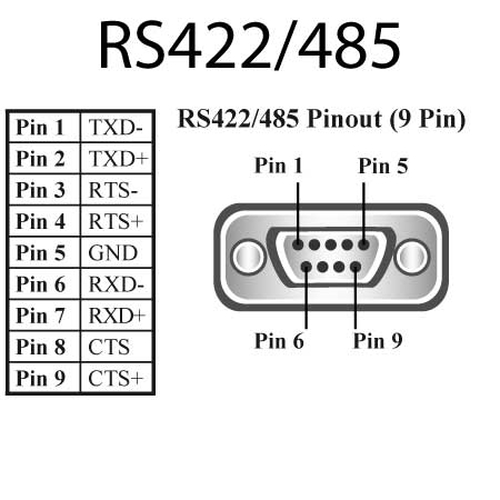

| Connector 1 | RS-422/485 |
|---|---|
| Connector 2 | USB |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | 2.0 |
| Cable length | 0.5 m |
| Product colour | Black |
|---|---|
| Data transfer rate | 0.48 Gbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 512 B |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Output voltage | 5 V |
|---|---|
| Output current | 80 mA |
| Operating temperature (T-T) | -40 - 80 °C |
|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
|---|

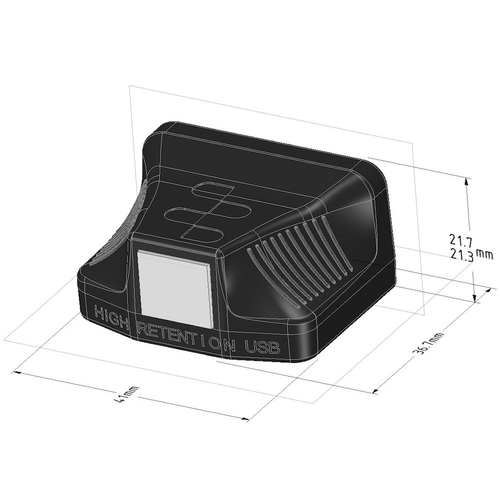

| Width | 41 mm |
|---|---|
| Depth | 38 mm |
| Height | 22 mm |
| Weight | 24 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| Package width | 160 mm |
|---|---|
| Package depth | 135 mm |
| Package height | 45 mm |
| Package weight | 156 g |
| Export Control Classification Number (ECCN) | 4A994 |
|---|---|
| Harmonized System (HS) code | 84718 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
