Overview

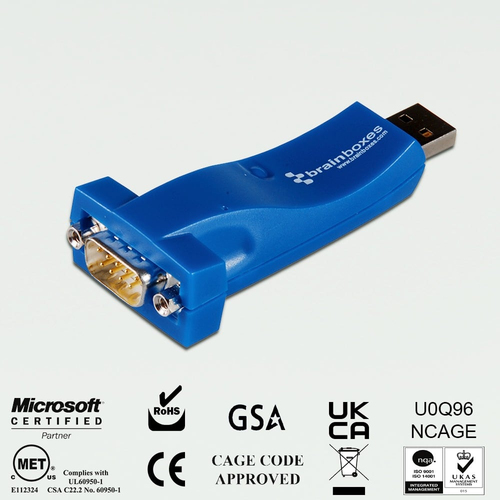

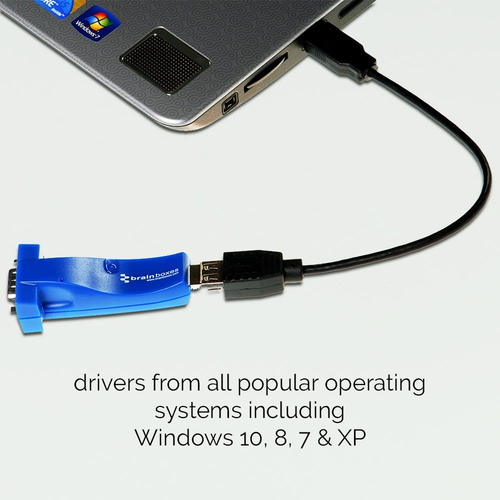

USB to Serial adapter providing one RS232 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. Drivers for Windows 32 bit and 64 bit Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.
Specifications
Ports & interfaces
| Connector 1 | USB A |
|---|

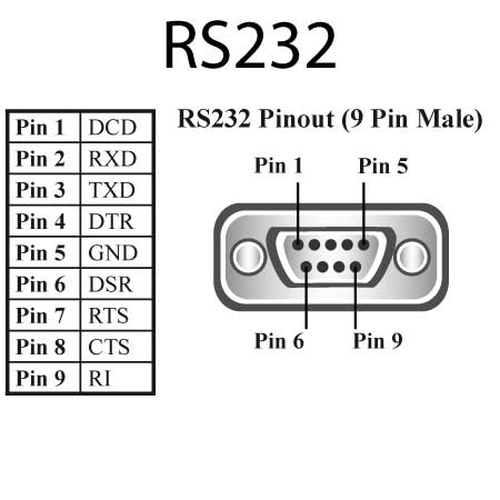

| Connector 2 | DB9 |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Male |
|---|
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
| USB version | 2.0 |
|---|
| Connector(s) | DB9 |
|---|
| Cable length | 0.25 m |
|---|
Performance
| Product colour | Blue |
|---|
| Data transfer rate | 0.48 Gbit/s |
|---|
| Data bits | 7, 8 |
|---|
| Stop bits | 1, 2 |
|---|
| Baud rate | 921.6 Kbit/s |
|---|
| Parity bit | Even, Mark, No, Odd, Space |
|---|
| FIFO (First In, First Out) | 256 B |
|---|
| Compatible operating systems | Win Vista, XP |
|---|
Operational conditions
| Operating temperature (T-T) | -30 - 80 °C |
|---|
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
|---|
| Certification | RoHS, CE, FCC |
|---|
Weight & dimensions
| Width | 35 mm |
|---|
| Depth | 89 mm |
|---|
| Height | 20 mm |
|---|
| Weight | 23 g |
|---|
Packaging content

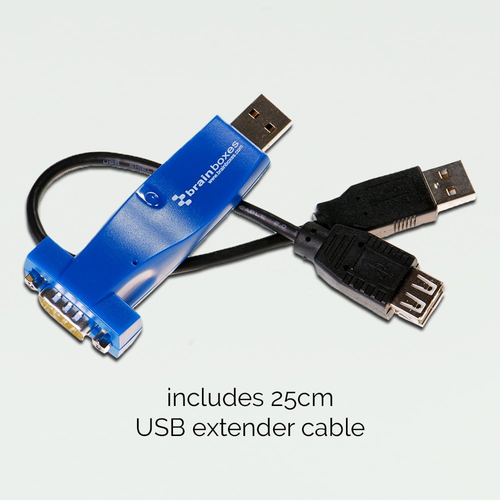

| Cables included | USB Type-A |
|---|
Packaging data
| Package width | 135 mm |
|---|
| Package depth | 160 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 151 g |
|---|
Technical details
| Host interface | USB |
|---|
Other features
| Ports quantity | 1 |
|---|
| Mac compatibility | No |
|---|
Logistics data
| Country of origin | United Kingdom |
|---|
| Export Control Classification Number (ECCN) | 4A994 |
|---|
| Harmonized System (HS) code | 84718 |
|---|
