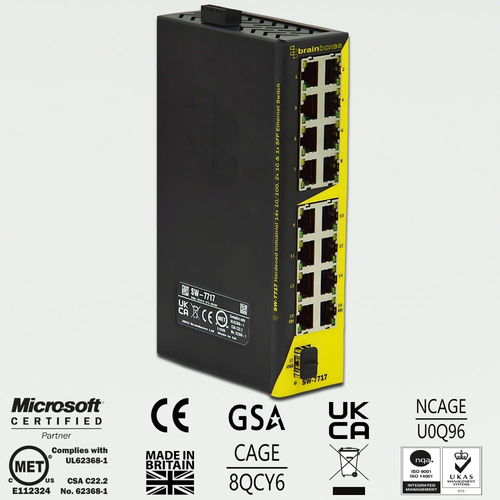

Brainboxes Hard Industrial 14x10/100,2x1Gb Trunk & 1SFP Ethernet Switch
Part number SW-7717
14X10/100 2X1G 1XSFP SWITCH HARDENED INDUSTRIAL ETHERNET SWITCH
- Hardened Industrial 14x 10/100, 2x 1G & 1x SFP Ethernet Switch
- 14x 10/100, 2x Gigabit & 1x SFP Port Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +5 V to +30 VDC
- Low Power Consumption: 7.5 W Max
- Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
- DIN rail mountable with included mounting kit (MK-103)
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-7717
- Term
- Per Ingram SKU NJ4822
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

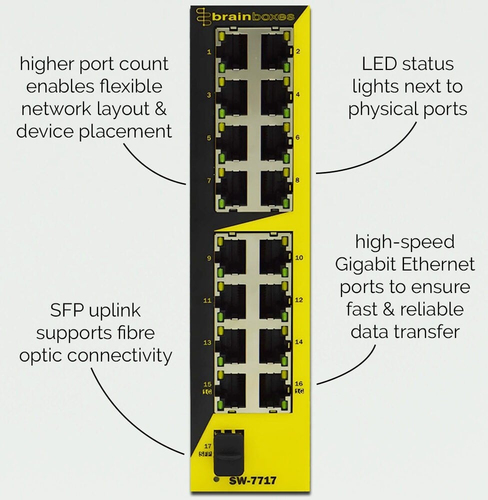

Hardened Industrial 14x 10/100, 2x 1G & 1x SFP Ethernet Switch – SFP uplink supports fibre optic connectivity, overcoming distance limitations of copper Ethernet cables and enabling communication between remote devices and control systems.
14x 10/100 Fast Ethernet ports and 2x 10/100/1000 Gigabit ports ensure flexibility in network integration, accommodating diverse network requirements and device capabilities, making it easier to integrate into existing industrial automation setups.
Extend network reach and reliability by integrating fibre optic uplinks to connect equipment across large production areas/multiple manufacturing floors.
Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.
Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.

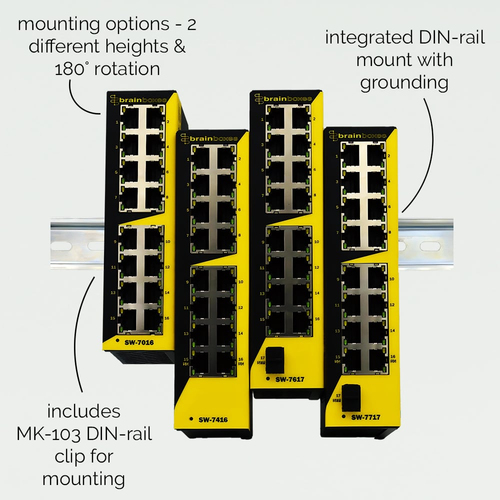

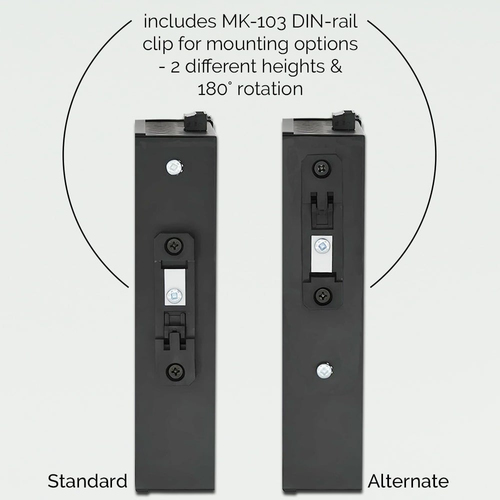

Includes MK-103 DIN Rail clip for several mounting options: 2 different heights and 180° rotation.
Specifications
| Switch type | Unmanaged |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 14 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 1 |
| Fiber ethernet cabling technology | 1000BASE-X |
|---|
| Form factor | DIN rail |
|---|---|
| Product colour | Black, Yellow |
| DIN rail mounting | Yes |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 7.5 W |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 80 °C |

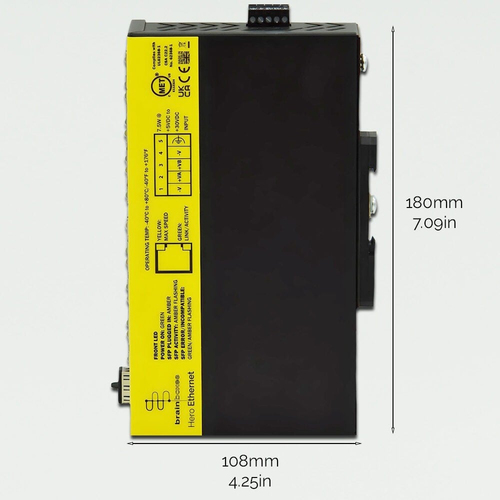

| Width | 180 mm |
|---|---|
| Depth | 108 mm |
| Height | 43 mm |
| Weight | 640 g |
| DIN rail included | Yes |
|---|---|
| Package width | 140 mm |
| Package depth | 200 mm |
| Package height | 80 mm |
| Package weight | 750 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
