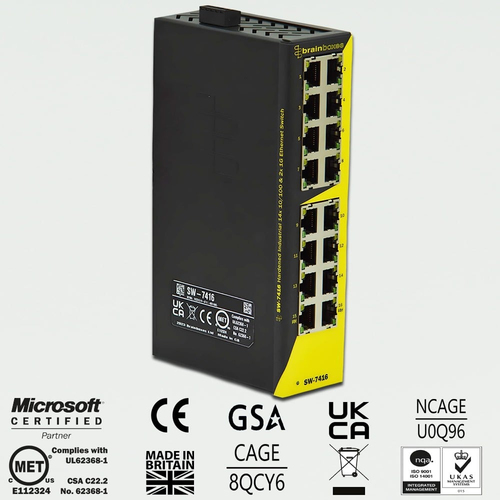

Brainboxes Hard Industrial 14x10/100 & 2x1Gb Trunk Ethernet Switch
Part number SW-7416
14X10/100 2X1G ENET SWITCH HARDENED INDUSTRIAL ETHERNET SWITCH
- Hardened Industrial 14x 10/100 & 2x 1G Ethernet Switch
- 14x 10/100 & 2x Gigabit Port Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +5 V to +30 VDC
- Low Power Consumption: 6 W Max
- Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
- DIN rail mountable with included mounting kit (MK-103)
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-7416
- Term
- Per Ingram SKU NJ4820
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Hardened Industrial 14x 10/100 & 2x 1G Ethernet Switch - enhance efficiency, accuracy, and throughput in high-speed assembly operations.

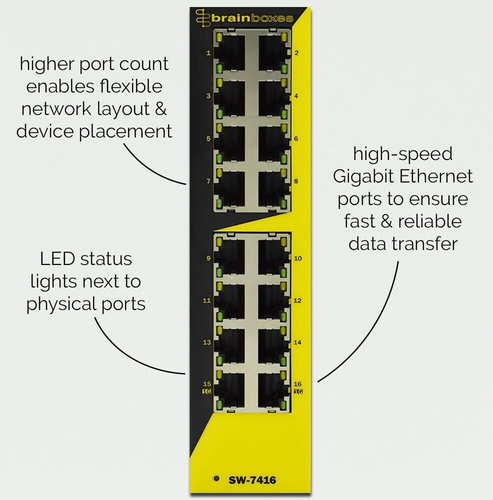

14x 10/100 Fast Ethernet ports and 2x 10/100/1000 Gigabit ports ensure flexibility in network integration, accommodating diverse network requirements and device capabilities, making it easier to integrate into existing industrial automation setups.
Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.
Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.

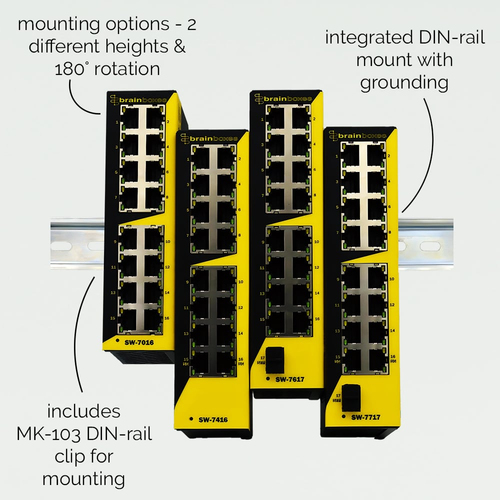

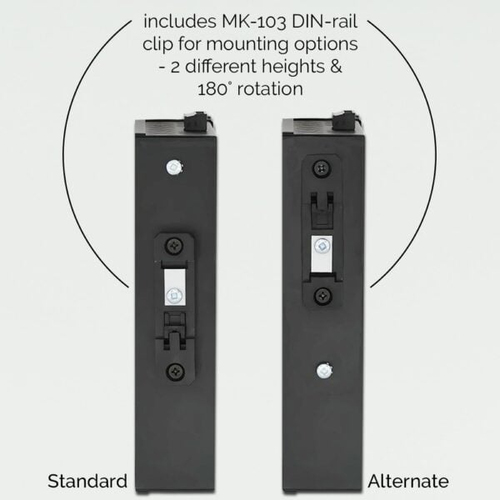

Includes MK-103 DIN Rail clip for several mounting options: 2 different heights and 180° rotation.
Specifications
| Switch type | Unmanaged |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 14 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Power connector | DC-in jack |
| Form factor | DIN rail |
|---|---|
| Product colour | Black, Yellow |
| DIN rail mounting | Yes |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 80 °C |

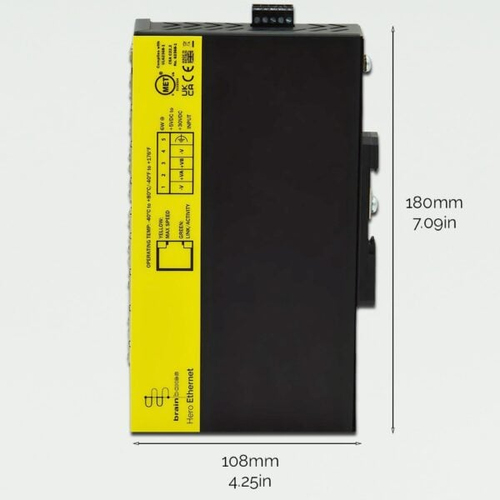

| Width | 180 mm |
|---|---|
| Depth | 108 mm |
| Height | 43 mm |
| Weight | 640 g |
| DIN rail included | Yes |
|---|---|
| Package width | 140 mm |
| Package depth | 200 mm |
| Package height | 80 mm |
| Package weight | 750 g |
| Compliance certificates | CE, UKCA, Federal Communications Commission (FCC) |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
