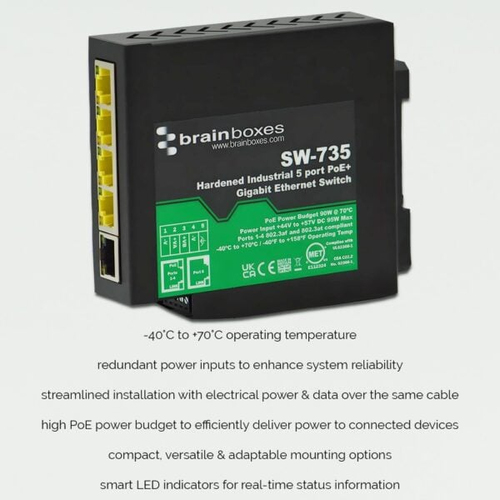

Brainboxes Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch
Part number SW-735
IND.5 PORT POE+ GB ENET SWITCH HARDENED INDUSTRIAL -40F TO +158F
- 5x Port PoE+ Gigabit Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +44 V to +70 VDC
- Low Power Consumption: 5.5 W Max
- Operating Temperature Rating: -40 °C to +70 °C /-40 °F to +158 °F
- Hardened DIN rail mountable
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-735
- Term
- Per Ingram SKU JT9388
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Hardened Industrial 5 Port PoE+ Fast Ethernet device.
Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.
Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Specifications
| Switch type | Unmanaged |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|
| MAC address table | 1000 entries |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.448 MB |
| Form factor | DIN rail |
|---|---|
| Product colour | Black |

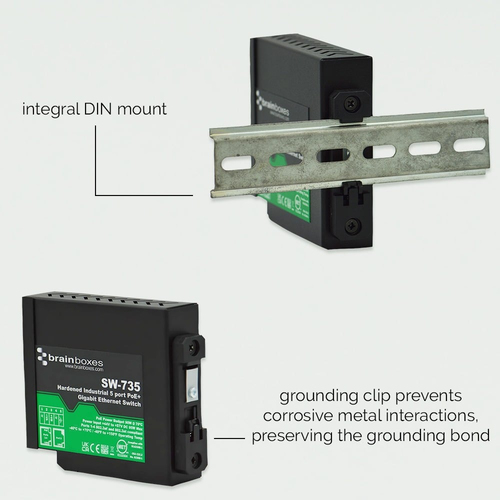

| DIN rail mounting | Yes |
| Export Control Classification Number (ECCN) | 8517.62.00.00 |
|---|
| Power source | DC/PoE |
|---|---|
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 5.5 W |
| Power over Ethernet (PoE) | Yes |
|---|---|

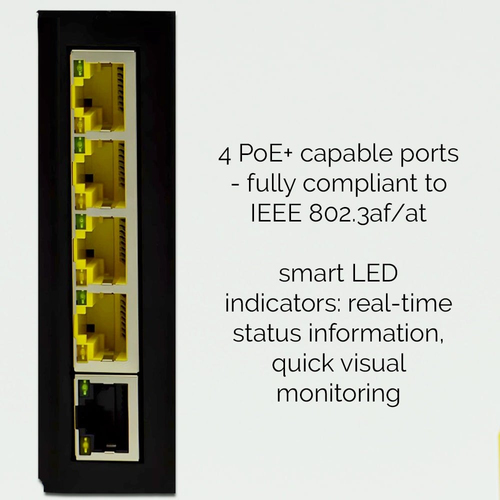

| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operating temperature (T-T) | -40 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 115 mm |
|---|---|
| Depth | 99 mm |
| Height | 28 mm |
| Weight | 357 g |
| Package width | 135 mm |
|---|---|
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 422 g |

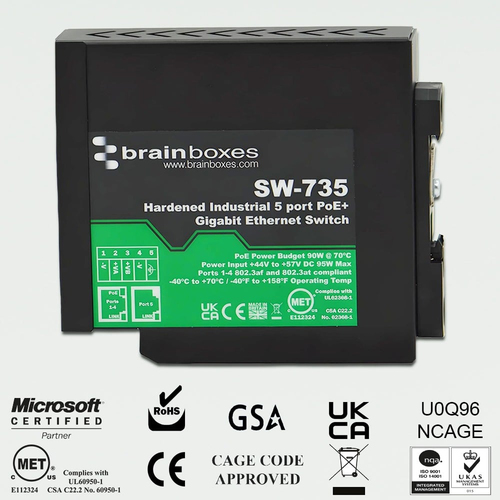

| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
|---|
| Country of origin | United Kingdom |
|---|---|
| Harmonized System (HS) code | 851762 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
