Overview

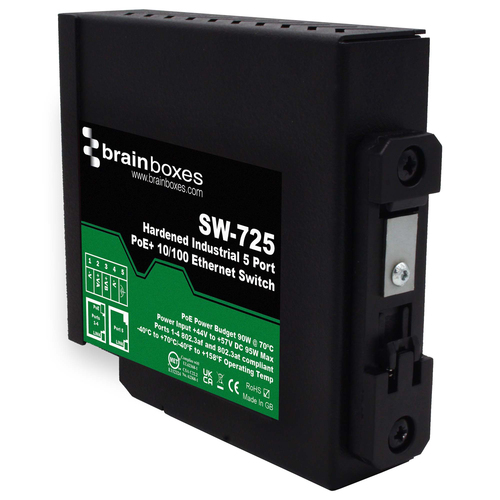

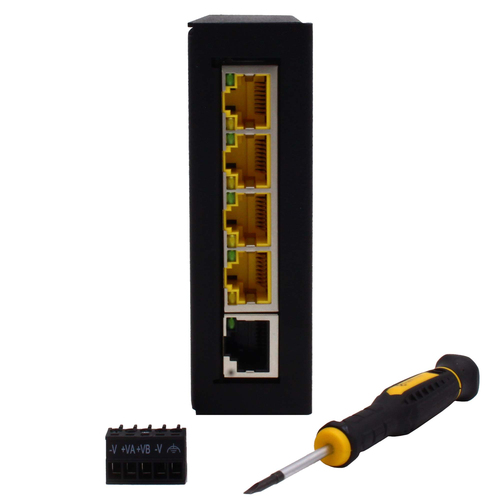

Hardened Industrial 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Specifications
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|
| Fast Ethernet (copper) ports quantity | 5 |
|---|
Network
| Networking standards | IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|
| 10G support | No |
|---|
Data transmission
| MAC address table | 1000 entries |
|---|
| Jumbo frames support | No |
|---|
| Packet buffer memory | 0.448 MB |
|---|
Design

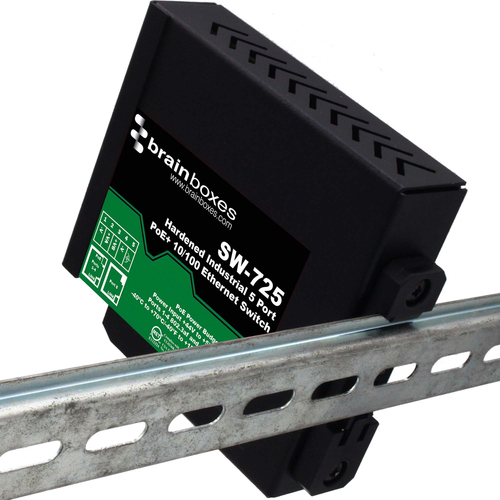

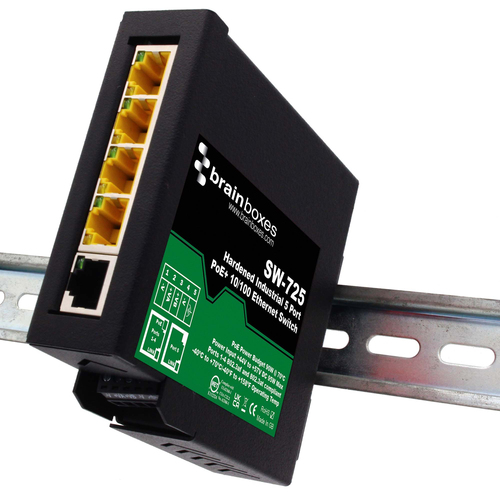

| Form factor | DIN rail |
|---|
| Product colour | Black, Green |
|---|
| DIN rail mounting | Yes |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC/PoE |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| DC input voltage | 44 - 57 V |
|---|
| Power consumption (max) | 5.5 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 5 |
|---|
| Total Power over Ethernet (PoE) budget | 90 W |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 115 mm |
|---|
| Depth | 99 mm |
|---|
| Height | 28 mm |
|---|
| Weight | 357 g |
|---|
Packaging data
| Package width | 160 mm |
|---|
| Package depth | 135 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 422 g |
|---|
Certificates
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
|---|
Logistics data
| Country of origin | United Kingdom |
|---|
| Harmonized System (HS) code | 851762 |
|---|
