Overview

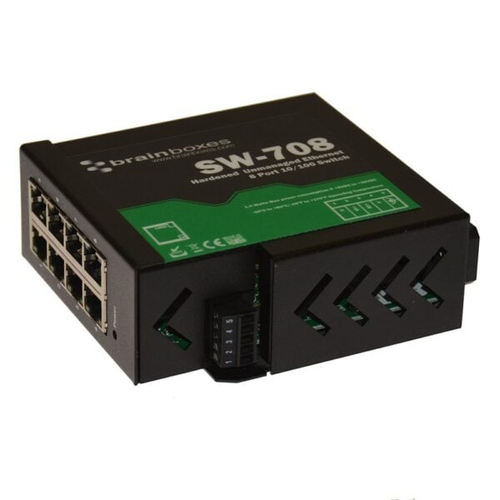

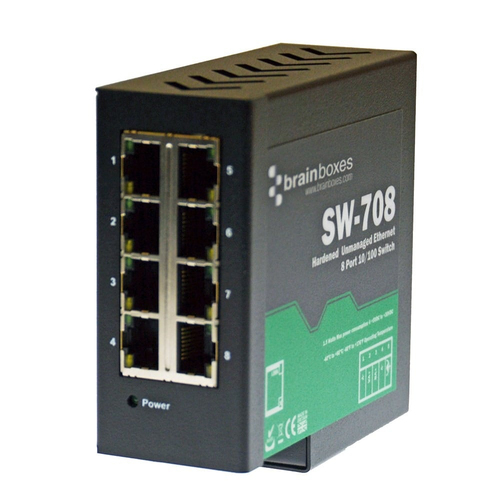

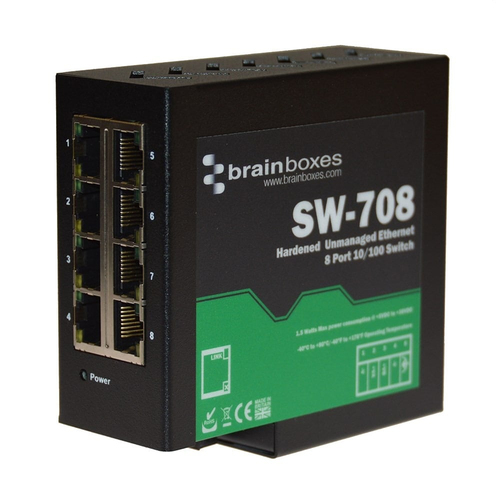

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated brainboxes-ed-593-front-panel-ethernet-port-status-leds. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Specifications
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|
| Fast Ethernet (copper) ports quantity | 8 |
|---|
| Power connector | DC-in jack |
|---|
Network
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|
| 10G support | No |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Auto-sensing | Yes |
|---|
Data transmission
| MAC address table | 1000 entries |
|---|
| Jumbo frames support | No |
|---|
| Packet buffer memory | 0.448 MB |
|---|
Design

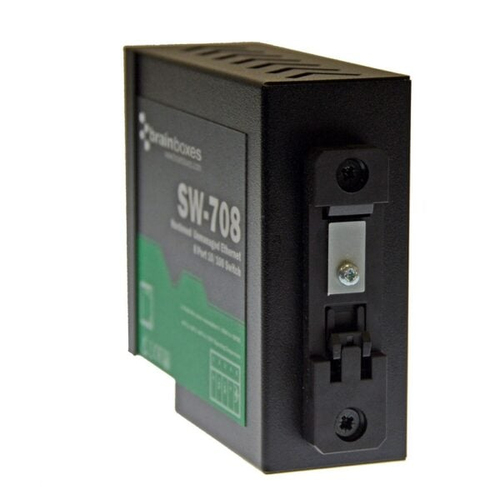

| Form factor | DIN rail |
|---|
| Product colour | Black |
|---|
| Housing material | Metal |
|---|
| LED indicators | Activity, Link |
|---|
| International Protection (IP) code | IP20 |
|---|
| DIN rail mounting | Yes |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| DC input voltage | 5 - 30 V |
|---|
| Power consumption (max) | 1.5 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 80 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 120 mm |
|---|
| Depth | 100 mm |
|---|
| Height | 40 mm |
|---|
| Weight | 393 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Packaging data
| Package width | 160 mm |
|---|
| Package depth | 135 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 443 g |
|---|
Certificates
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
|---|
Logistics data
| Country of origin | United Kingdom |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
