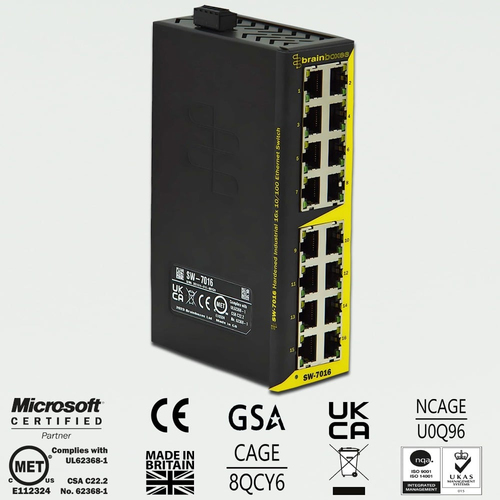

Brainboxes Hard Industrial 16 Port 10/100 Ethernet Switch
Part number SW-7016
IND.16X10/100 ENET SWITCH HARDENED INDUSTRIAL ETHERNET SWITCH
- Hardened Industrial 16x 10/100 Ethernet Switch
- 16x Port 10/100 Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +5 V to +30 VDC
- Low Power Consumption: 3.8 W Max
- Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F

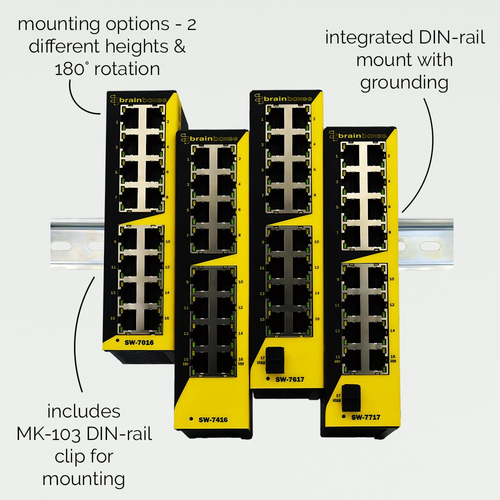

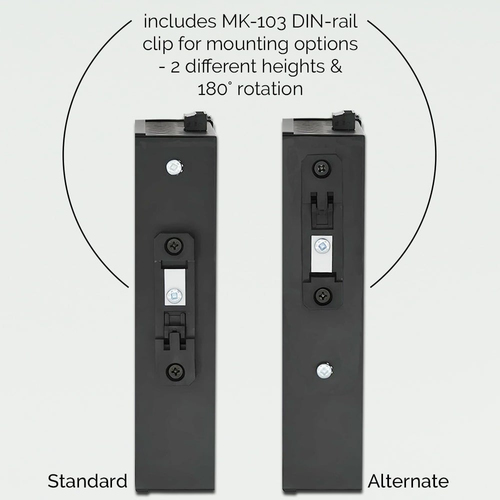

- DIN rail mountable with included mounting kit (MK-103)
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-7016
- Term
- Per Ingram SKU NJ4821
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Hardened Industrial 16x 10/100 Ethernet Switch - enables real-time communication between control units, sensors, and central monitoring systems; streamlining operations to improve efficiency and productivity.

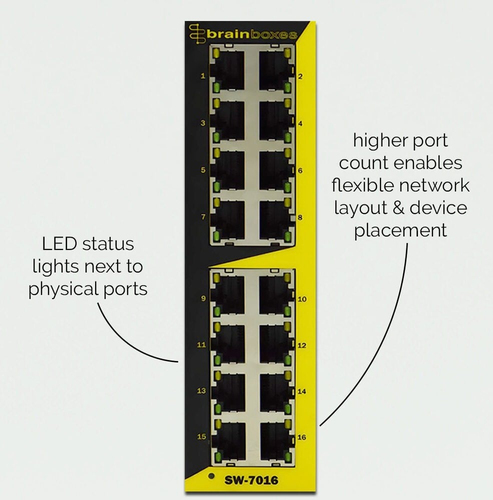

16x Fast Ethernet 10/100 ports provide ample connectivity for expanding industrial automation networks without compromising performance.
Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.
Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.
Specifications
| Switch type | Unmanaged |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Form factor | DIN rail |
|---|---|
| Product colour | Black, Yellow |
| DIN rail mounting | Yes |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 3.8 W |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 80 °C |

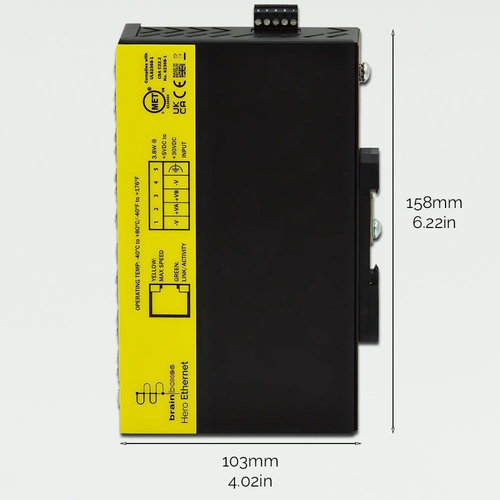

| Width | 158 mm |
|---|---|
| Depth | 103 mm |
| Height | 43 mm |
| Weight | 530 g |
| DIN rail included | Yes |
|---|---|
| Package width | 140 mm |
| Package depth | 200 mm |
| Package height | 80 mm |
| Package weight | 670 g |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
