Brainboxes Industrial SFP + 4 Port PoE+ Gigabit Ethernet Switch
Part number SW-595
4 PORT POE+ GB ENET SWITCH/SFP INDUSTRIAL HIGH-SPEED DATA TRANSFER
- 1x SFP & 4x PoE+ Gigabit Port Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +44 V to +57 VDC
- Low Power Consumption: 5.3 W Max
- Operating Temperature Rating: -40 °C to +70 °C /-40 °F to +158 °F

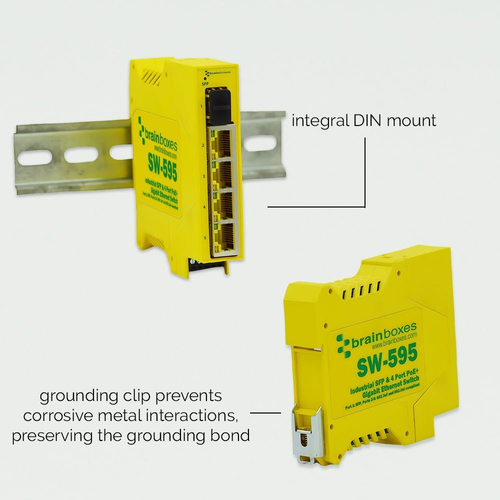

- DIN rail mountable
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-595
- Term
- Per Ingram SKU JT9389
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

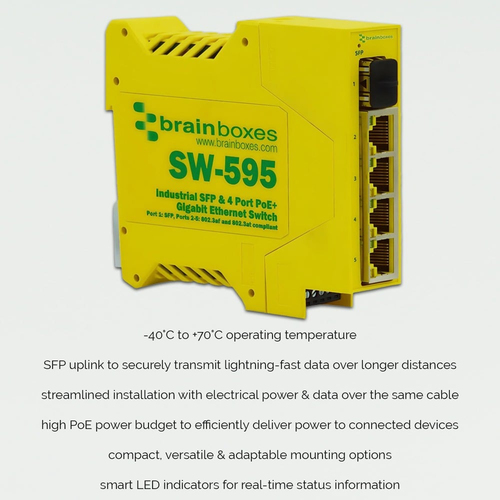

PoE+ Industrial Gigabit SFP Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

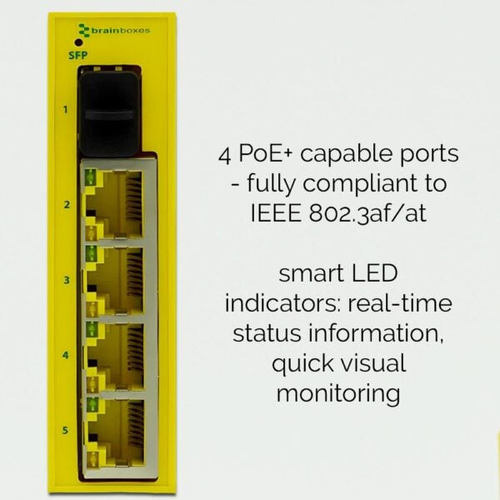

Galvanically Isolated Ethernet brainboxes-SW-595-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Compatible DIN rail power supply available: PW-301
Specifications
| Switch type | Unmanaged |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|
| Fiber ethernet cabling technology | 1000BASE-X |
|---|
| MAC address table | 1000 entries |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.448 MB |
| Form factor | DIN rail |
|---|---|
| Product colour | Yellow |
| DIN rail mounting | Yes |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 5.3 W |
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operating temperature (T-T) | -40 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 115 mm |
|---|---|
| Depth | 100 mm |
| Height | 23 mm |
| Weight | 136 g |
| Package width | 135 mm |
|---|---|
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 231 g |

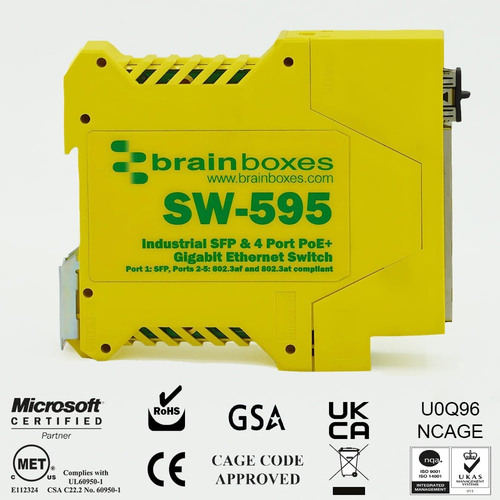

| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
|---|
| Country of origin | United Kingdom |
|---|---|
| Harmonized System (HS) code | 851762 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
