Overview

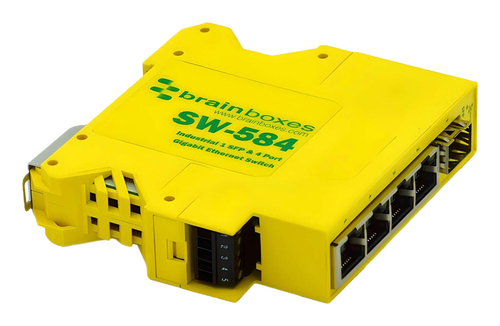

Industrial Gigabit Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

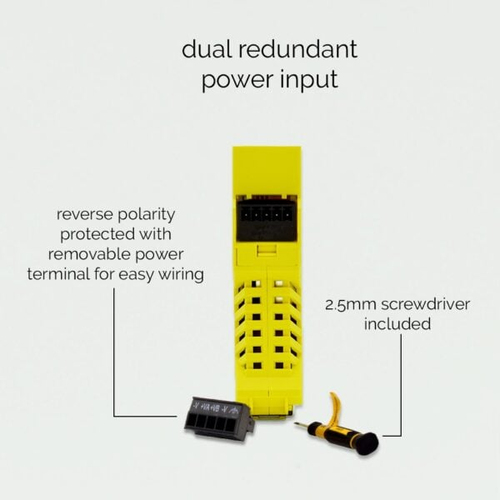

Galvanically Isolated Ethernet brainboxes-SW-584-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Specifications
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces

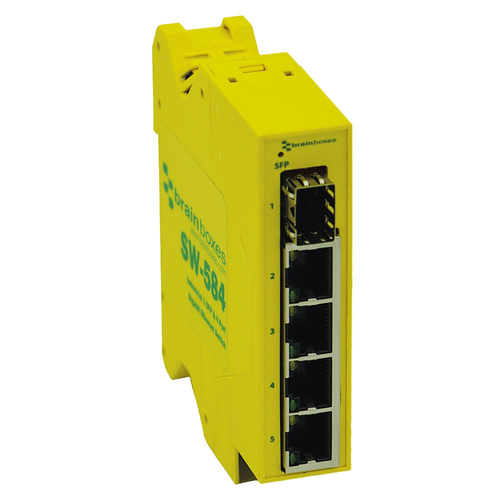

| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 4 |
|---|
| Combo SFP ports quantity | 1 |
|---|
Network
| Auto MDI/MDI-X | Yes |
|---|
| Auto-sensing | Yes |
|---|
Optical fiber
| Fiber ethernet cabling technology | 1000BASE-X |
|---|
Data transmission
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
Design

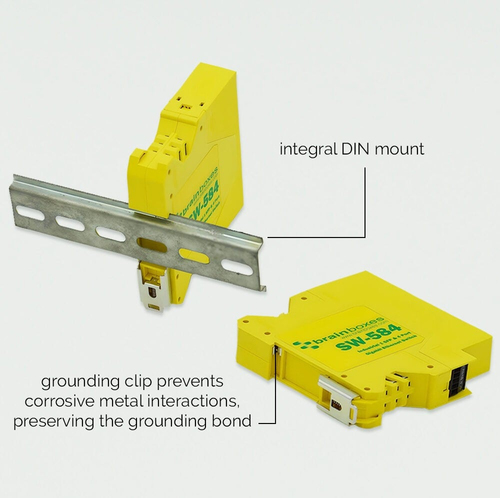

| Form factor | DIN rail |
|---|
| Product colour | Yellow |
|---|
| Housing material | Polyamide |
|---|
| International Protection (IP) code | IP20 |
|---|
| DIN rail mounting | Yes |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| DC input voltage | 5 - 30 V |
|---|
| Power consumption (max) | 3.6 W |
|---|
| Power protection features | Over current |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 80 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|

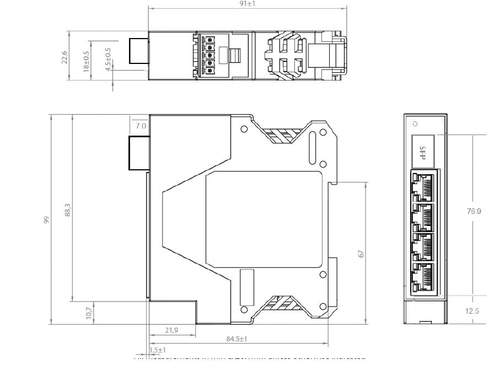

Weight & dimensions
| Width | 99 mm |
|---|
| Depth | 95 mm |
|---|
| Height | 22 mm |
|---|
| Weight | 109 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Packaging data
| Package width | 135 mm |
|---|
| Package depth | 160 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 204 g |
|---|

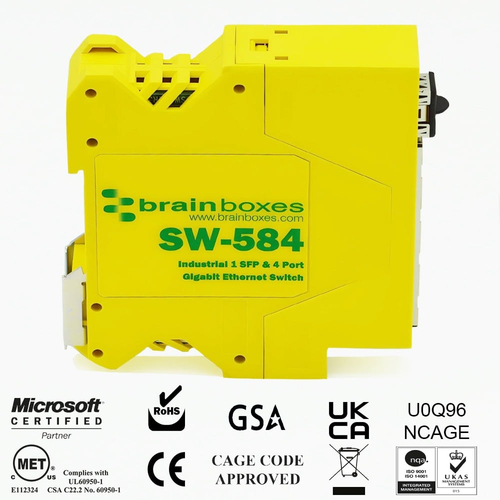

Certificates
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
|---|
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
