Brainboxes Industrial 5 Port PoE+ Gigabit Ethernet Switch
Part number SW-535
IND.5 PORT POE+ GB ENET SWITCH INDUSTRIAL COMPACT -40F TO +158F
- 5x Port PoE+ Gigabit Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +44 V to +57 VDC
- Low Power Consumption: 5.5 W Max
- Operating Temperature Rating: -40 °C to +70 °C /-40 °F to +158 °F

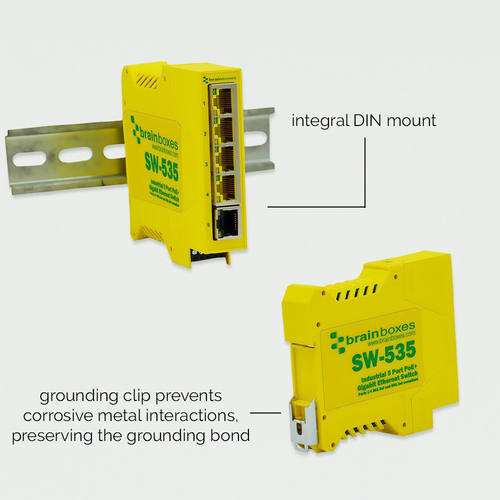

- DIN rail mountable
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-535
- Term
- Per Ingram SKU JT9386
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

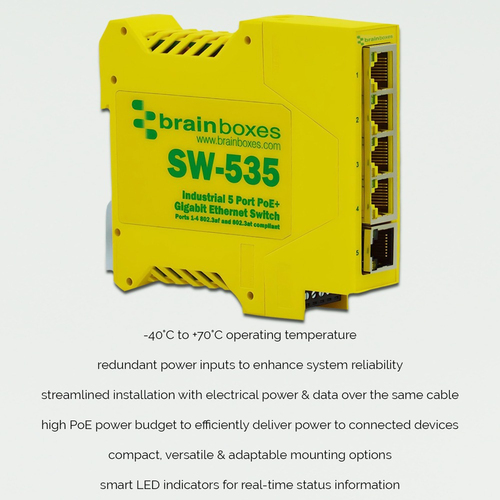

Industrial Compact 5 Port PoE+ Gigabit Ethernet device.
Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.
Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more.
Compatible DIN rail power supply available: PW-301
Specifications
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

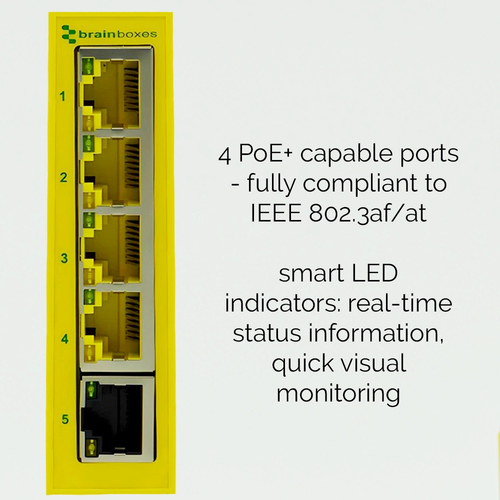

| Networking standards | IEEE 802.3af, IEEE 802.3at |
|---|---|
| 10G support | No |
| Rack mounting | No |
|---|---|
| Stackable | No |
| Form factor | DIN rail |
| Product colour | Yellow |
| DIN rail mounting | Yes |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC/PoE |
|---|---|
| Power supply included | No |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 5.5 W |
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operating temperature (T-T) | -40 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 0 mm |
|---|---|
| Depth | 0 mm |
| Height | 0 mm |
| Weight | 233 g |
| Quick start guide | Yes |
|---|
| Package width | 135 mm |
|---|---|
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 240 g |

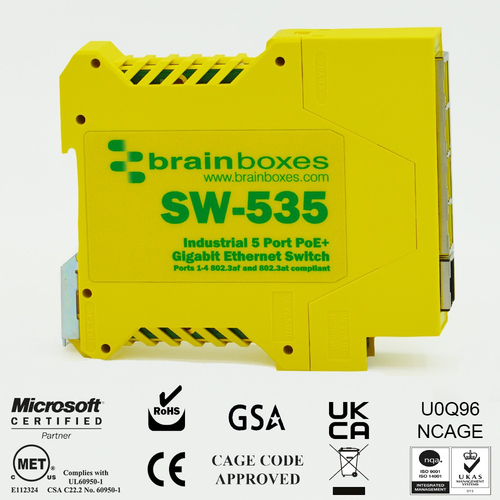

| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
