Overview

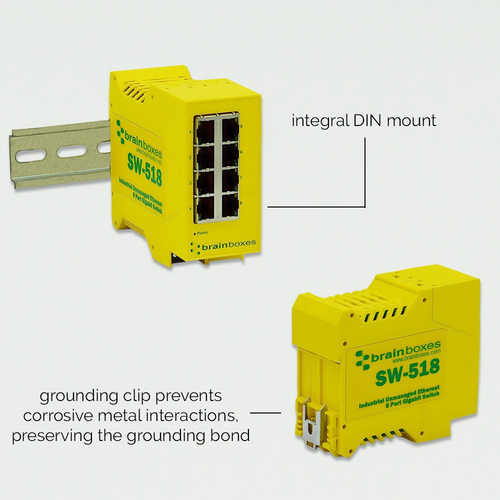

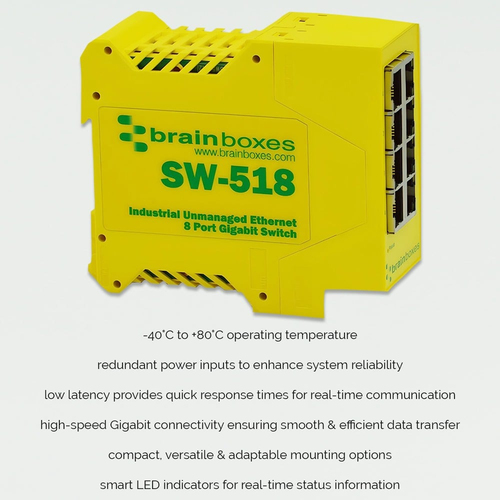

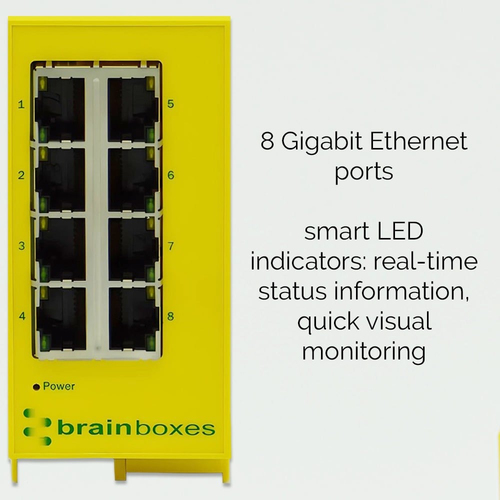

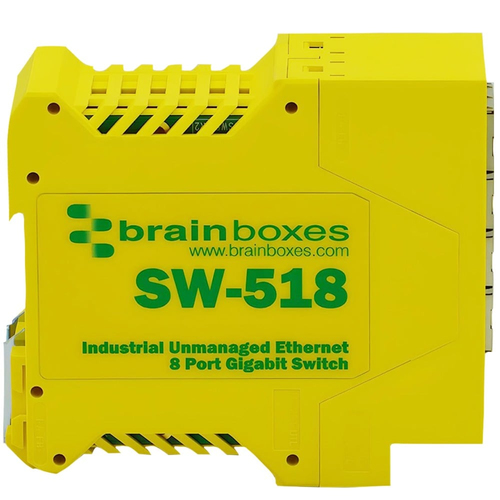

Industrial 8 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet brainboxes-SW-518-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Specifications
Management features
| Switch type | Unmanaged |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
Network
| 10G support | No |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Design
| Form factor | DIN rail |
|---|
| Product colour | Yellow |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| DC input voltage | 5 - 30 V |
|---|
| Power consumption (max) | 6.5 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 80 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
Weight & dimensions
| Width | 116.2 mm |
|---|
| Depth | 99 mm |
|---|
| Height | 45.3 mm |
|---|
| Weight | 180 g |
|---|
Packaging data
| Package width | 135 mm |
|---|
| Package depth | 160 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 260 g |
|---|
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
