Overview

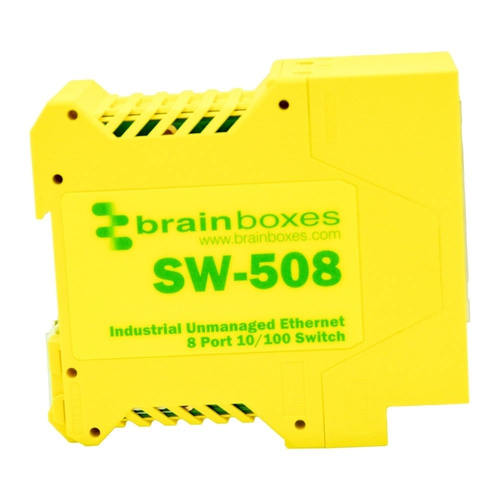

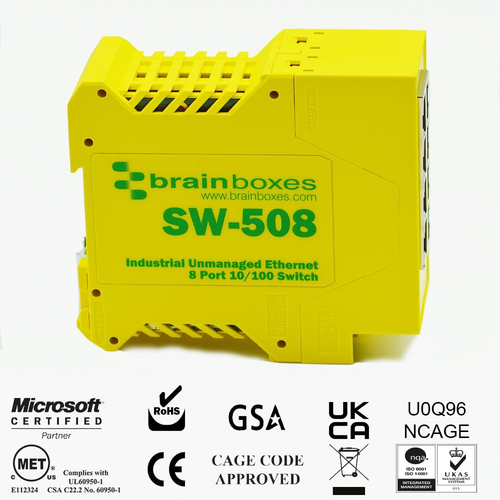

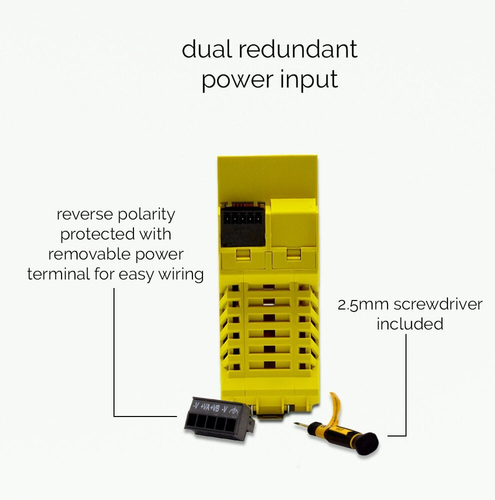

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated brainboxes-SW-508-front-panel-ethernet-port-status-leds. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Specifications
Management features
| Switch type | Unmanaged |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces

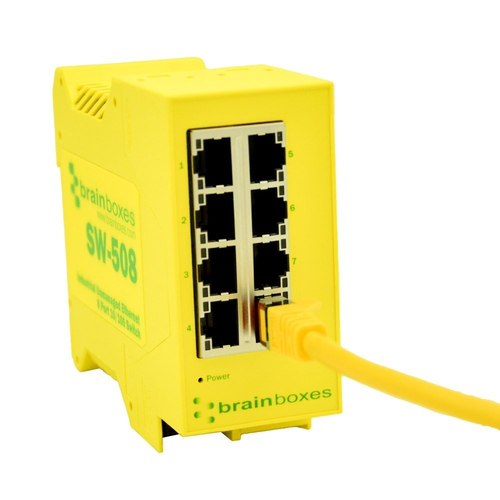

| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|
Network
| 10G support | No |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
|---|
| Auto-sensing | Yes |
|---|
Data transmission
| MAC address table | 1000 entries |
|---|
| Jumbo frames support | No |
|---|
Design
| Rack mounting | No |
|---|
| Form factor | DIN rail |
|---|
| Product colour | Yellow |
|---|
| Housing material | Polyamide |
|---|
| LED indicators | Yes |
|---|
| International Protection (IP) code | IP20 |
|---|

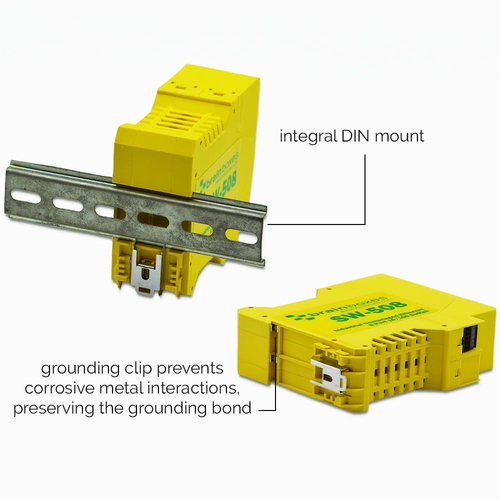

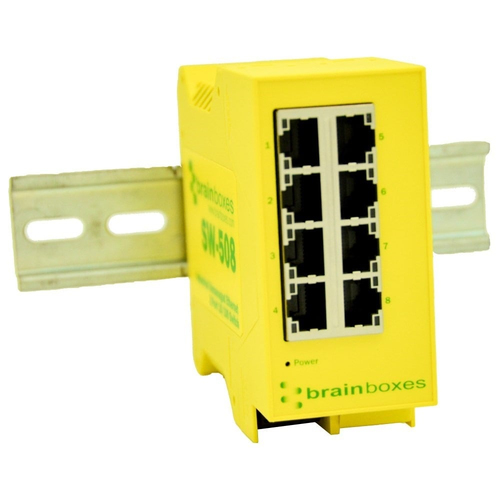

| DIN rail mounting | Yes |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| DC input voltage | 5 - 30 V |
|---|
| Power consumption (max) | 1.5 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 80 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 99 mm |
|---|
| Depth | 94 mm |
|---|
| Height | 23 mm |
|---|
| Weight | 160 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Packaging data
| Package width | 49 mm |
|---|
| Package depth | 160 mm |
|---|
| Package height | 135 mm |
|---|
| Package weight | 199 g |
|---|
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
