Overview

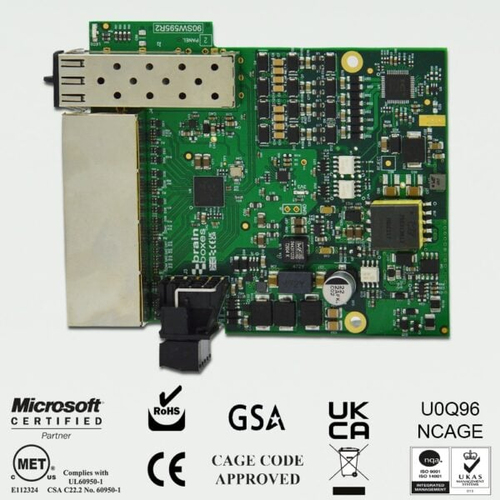

Embedded PoE+ Industrial Gigabit SFP Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet brainboxes-SW-195-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Specifications
Management features
| Switch type | Unmanaged |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 1 |
|---|
| Power connector | DC-in jack |
|---|
Network
| 10G support | No |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
Data transmission
| MAC address table | 1000 entries |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
Design
| Rack mounting | No |
|---|
| Form factor | Embedded |
|---|
| Product colour | Green |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| DC input voltage | 44 - 57 V |
|---|
| Power consumption (max) | 5.3 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 4 |
|---|
| Total Power over Ethernet (PoE) budget | 90 W |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 105 mm |
|---|
| Depth | 86 mm |
|---|
| Height | 20 mm |
|---|
| Weight | 89 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Packaging data
| Package width | 135 mm |
|---|
| Package depth | 160 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 160 g |
|---|
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
|---|
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
