Brainboxes Embedded Industrial 5 Port PoE+ Gigabit Ethernet Switch
Part number SW-135
EMB.5 PORT POE+ GB ENET SWITCH INDUSTRIAL 5 PORT EMBEDDABLE SWITCH
- 5x Port PoE+ Gigabit Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +44 V to +57 VDC
- Low Power Consumption: 5.5 W Max
- Operating Temperature Rating: -40 °C to +70 °C /-40 °F to +158 °F
- Embeddable
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-135
- Term
- Per Ingram SKU JT9385
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

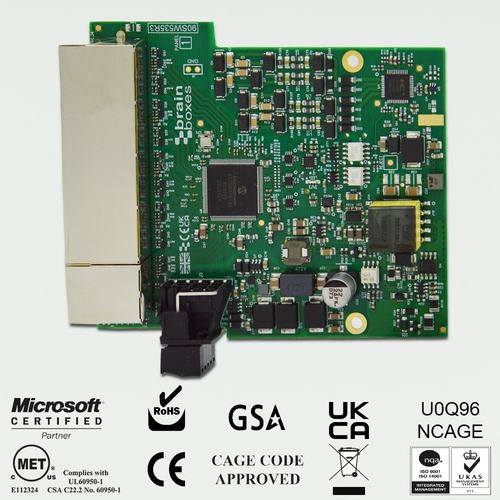

Compact embeddable 5 Port PoE+ Gigabit Ethernet device.
Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.
Galvanically Isolated Ethernet brainboxes-SW-135-front-panel-ethernet-port-status-leds capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Specifications
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| 10G support | No |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address table | 1000 entries |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Rack mounting | No |
|---|---|
| Form factor | Embedded |
| Product colour | Green |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 5.5 W |
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Operating temperature (T-T) | -40 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 105 mm |
|---|---|
| Depth | 86 mm |
| Height | 20 mm |
| Weight | 90 g |
| Package width | 135 mm |
|---|---|
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 162 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
