Overview

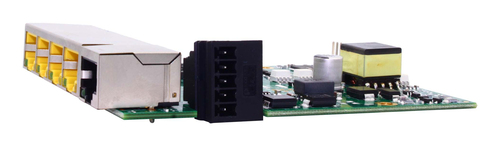

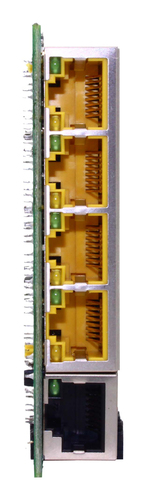

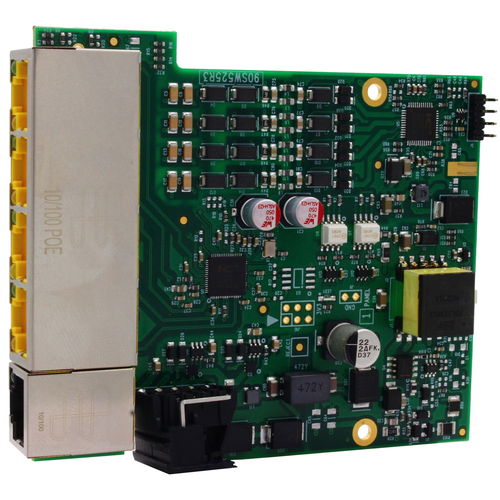

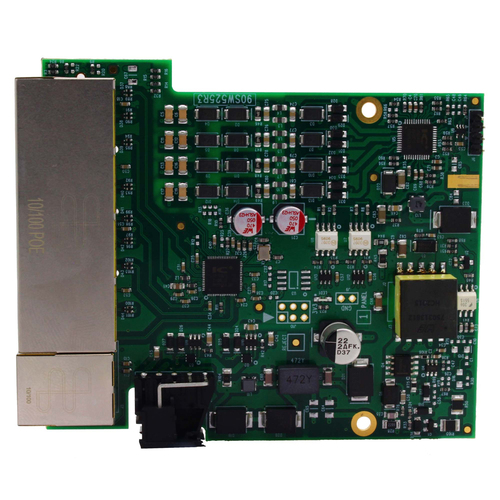

Compact embeddable 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet brainboxes-SW-125-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Specifications
Management features
| Switch type | Unmanaged |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|
Network
| 10G support | No |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
|---|
Data transmission
| MAC address table | 1000 entries |
|---|
Design
| Rack mounting | No |
|---|
| Form factor | Embedded |
|---|
| Product colour | Green |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| DC input voltage | 44 - 57 V |
|---|
| Power consumption (max) | 5.5 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|
| Power over Ethernet (PoE) ports quantity | 5 |
|---|
| Total Power over Ethernet (PoE) budget | 90 W |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 116 mm |
|---|
| Depth | 99 mm |
|---|
| Height | 23 mm |
|---|
| Weight | 124 g |
|---|
Packaging data
| Package width | 135 mm |
|---|
| Package depth | 160 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 235 g |
|---|
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
|---|
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
