Overview

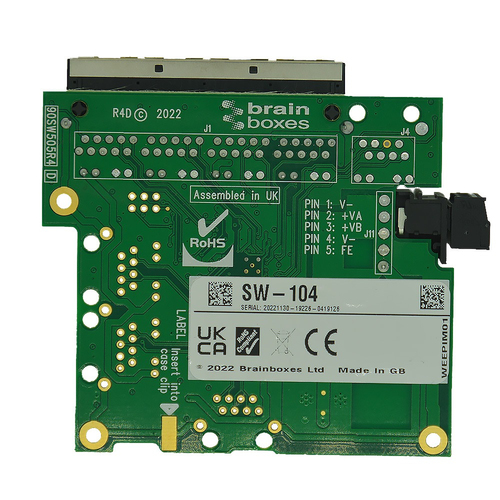

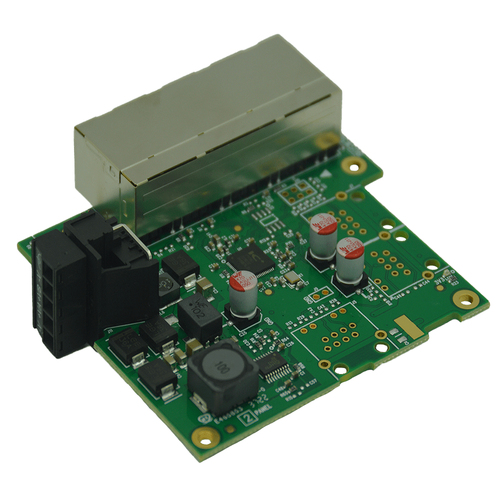

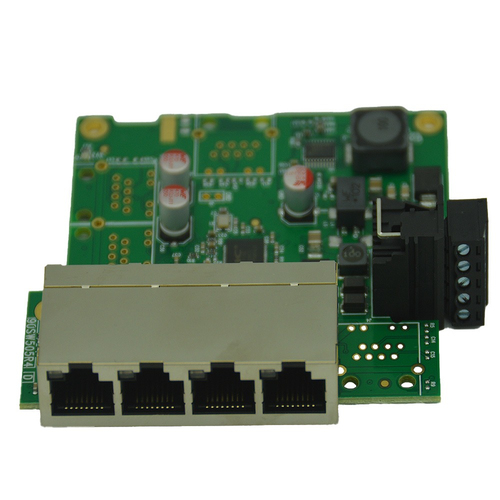

Industrial Embedded Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet brainboxes-SW-104-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Specifications
Management features
| Switch type | Unmanaged |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|
Network
| 10G support | No |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
|---|
Data transmission
| MAC address table | 1000 entries |
|---|
Design
| Rack mounting | No |
|---|
| Form factor | Embedded |
|---|
| Product colour | Green |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| DC input voltage | 5 - 30 V |
|---|
| Power consumption (typical) | 1.1 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 80 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|

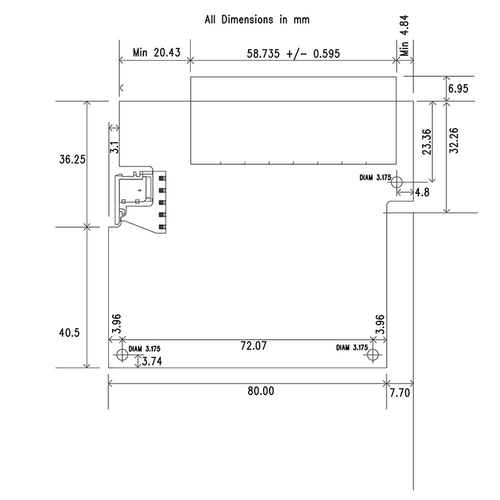

Weight & dimensions
| Width | 99 mm |
|---|
| Depth | 95 mm |
|---|
| Height | 29 mm |
|---|
| Weight | 270 g |
|---|
Packaging data
| Package width | 160 mm |
|---|
| Package depth | 135 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 338 g |
|---|
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
