Brainboxes Light Industrial 5 Port Gigabit Ethernet Switch
Part number SW-015
5 PORT GIGABIT ETHERNET SWITCH TEMPERATURE RANGE +14F TO +140F
- 5x Port Gigabit Unmanaged Ethernet Switch
- Wide Power Input: +5 V to +30 VDC
- Low Power Consumption: 3.6 W Max
- Operating Temperature Rating: -10 °C to +60 °C / 14 °F to +140 °F
- Wall Mountable or DIN rail mountable with included mounting kit (MK-048)
- Manufacturer
- BRAINBOXES LTD
- Part number
- SW-015
- Term
- Per Ingram SKU 7WF617
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

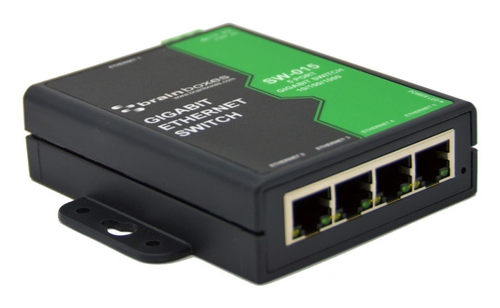

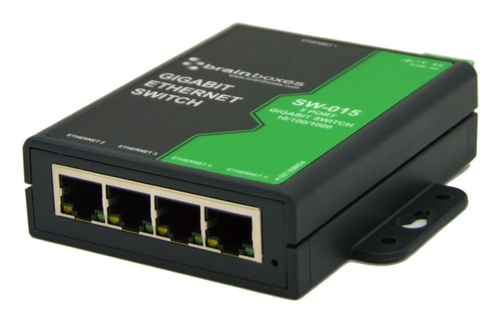

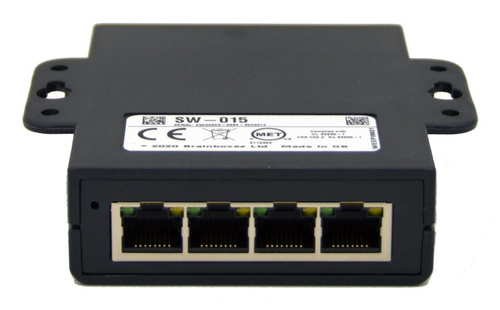

Compact 5 port Gigabit Ethernet unmanaged switch.
With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.
Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)
Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.

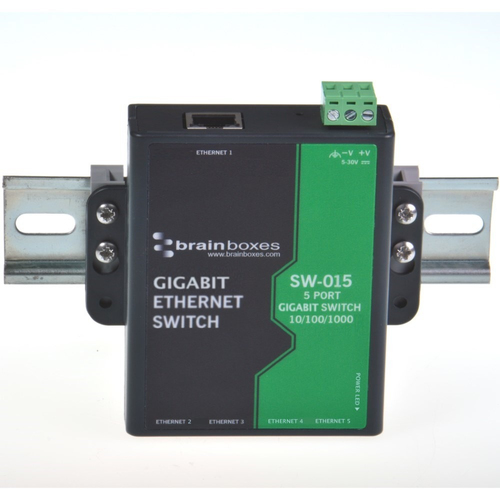

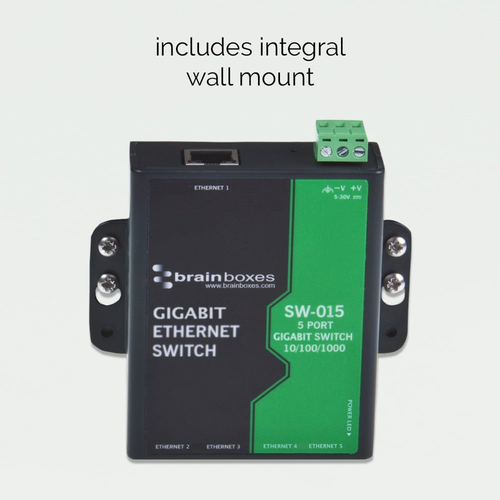

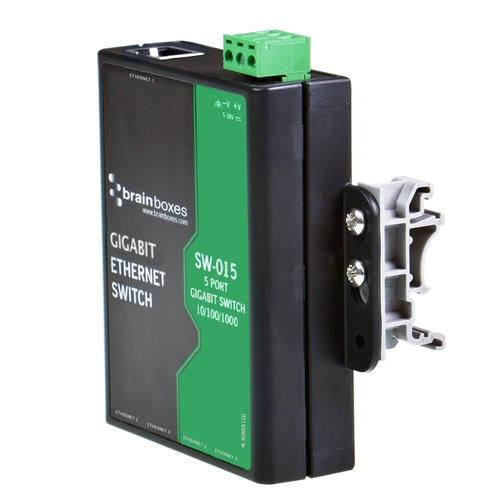

Wall mountable using mounting screw holes, also includes DIN Rail mount accessory (MK-048)
Specifications
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G support | No |
|---|---|
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Form factor | DIN rail |
|---|---|
| Product colour | Black, Green |
| Housing material | Polyamide |
| LED indicators | Activity, Link, Speed |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 3.6 W |
| Power protection features | Reverse polarity |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -10 - 60 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 110 mm |
|---|---|
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 129 g |

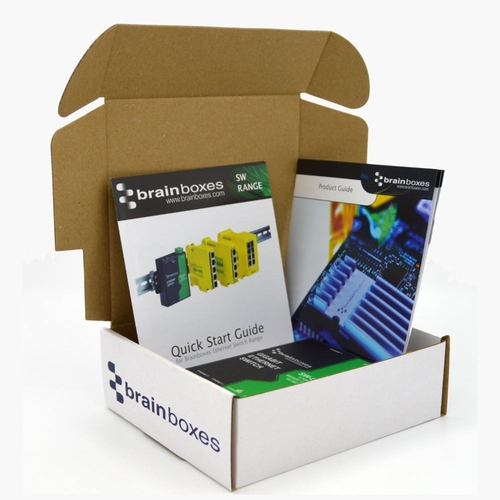

| Quick start guide | Yes |
|---|
| Package width | 160 mm |
|---|---|
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 209 g |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
