Overview

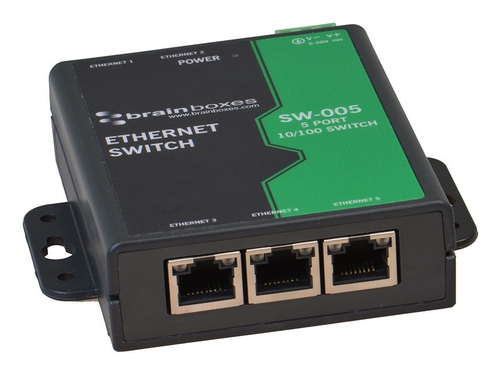

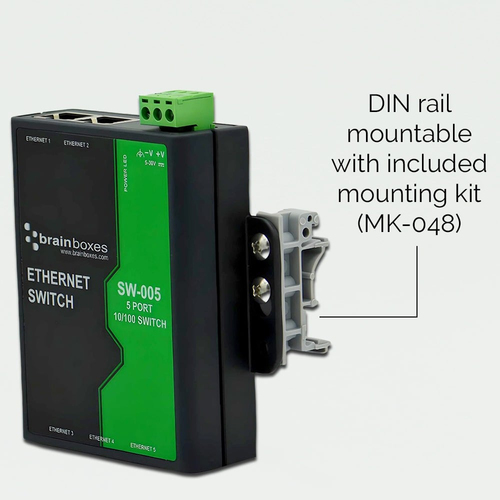

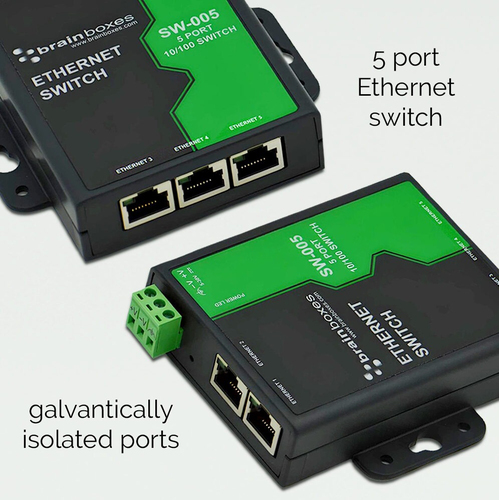

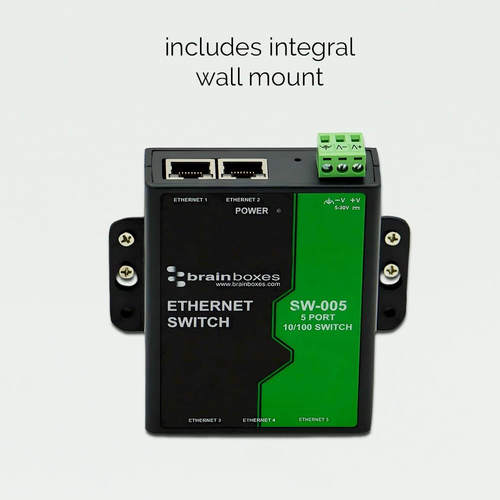

Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated brainboxes-SW-005-front-panel-ethernet-port-status-leds. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, also includes DIN Rail mount accessory (MK-048)
Specifications
Management features
| Switch type | Unmanaged |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|

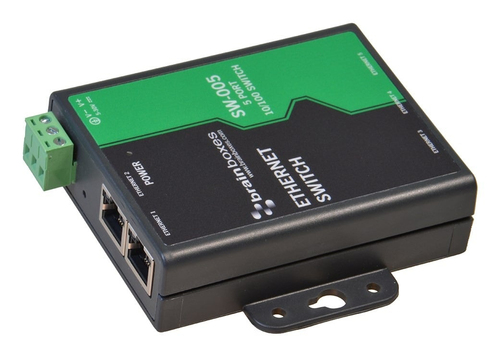

| Power connector | Terminal block (3-pin) |
|---|
Network
| 10G support | No |
|---|
| Broadcast storm control | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
Data transmission
| Jumbo frames support | No |
|---|
Design
| Rack mounting | No |
|---|
| Stackable | No |
|---|
| Form factor | DIN rail |
|---|
| Product colour | Black, Green |
|---|
| Housing material | Polyamide |
|---|
| LED indicators | Activity, Link, Speed |
|---|
| International Protection (IP) code | IP30 |
|---|
| Wall mountable | Yes |
|---|
| DIN rail mounting | Yes |
|---|
Performance
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
Power
| Power source | DC |
|---|
| DC input voltage | 5 - 30 V |
|---|
| Power consumption (max) | 1.1 W |
|---|
| Power consumption note | 1.1W Max: 220mA @+5VDC / 36mA @+30VDC |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -10 - 60 °C |
|---|
| Storage temperature (T-T) | -10 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
Weight & dimensions
| Width | 100.8 mm |
|---|
| Depth | 106.6 mm |
|---|
| Height | 25.8 mm |
|---|
| Weight | 132 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Packaging data
| Package width | 160 mm |
|---|
| Package depth | 135 mm |
|---|
| Package height | 49 mm |
|---|
| Package weight | 221 g |
|---|
Certificates

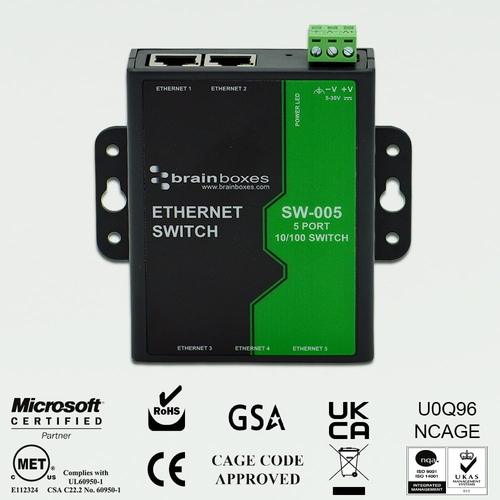

| Certification | CE, WEEE, RoHS, AEO |
|---|
Logistics data
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
