Brainboxes Pure Embedded 5 Port Gigabit Ethernet Switch Module
Part number PE-515
PURE EMBEDDED 5 PORT GBE SWITCH SFF WITH BOARD TO BOARD CABLE CONN
- Pure Embedded Industrial 5 Port Gigabit Ethernet Switch
- 5x Port Gigabit Unmanaged Ethernet Switch
- Power Input: +3.3 to +5 VDC
- Low Power Consumption: 3.3 W Max
- Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +185 °F
- Pure Embedded
- Manufacturer
- BRAINBOXES LTD
- Part number
- PE-515
- Term
- Per Ingram SKU SG0826
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

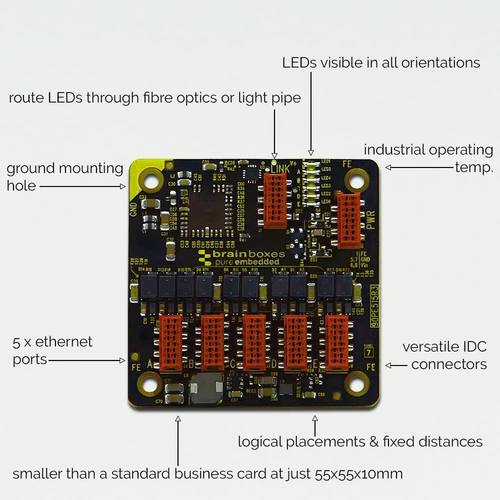

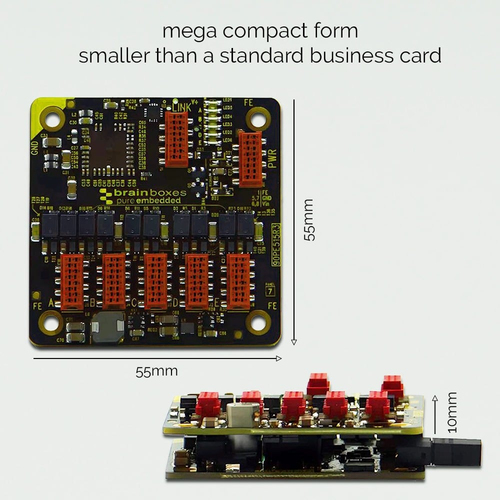

PE-515 Pure Embedded Industrial 5 Port Gigabit Ethernet Switch has a mega compact form – at 55 x 55 x 16mm / 2.17 x 2.17 x 0.63in it's smaller than a standard business card.
3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.

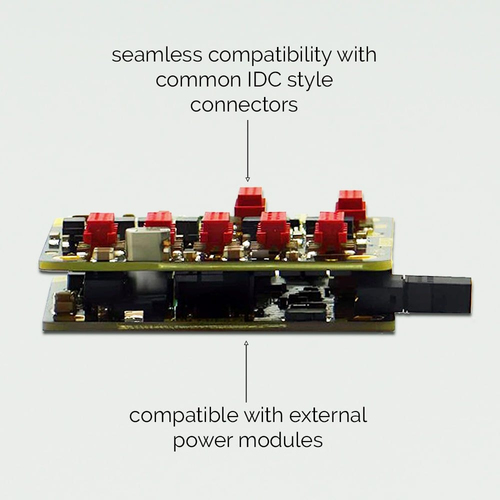

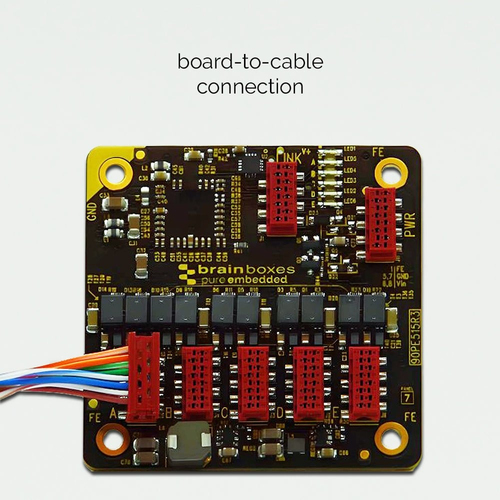

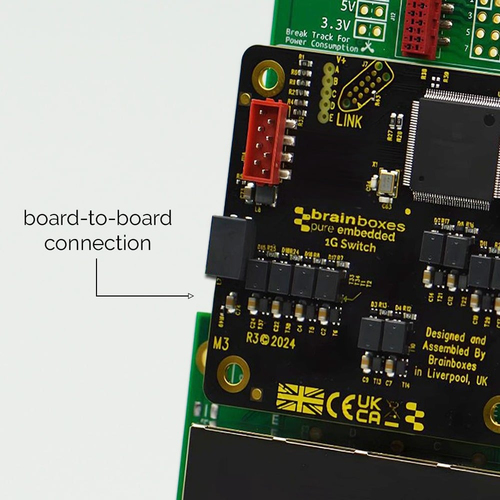

Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes, or by electrical signal wired out of the connector
Specifications
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Form factor | Embedded |
|---|---|
| Product colour | Multicolour |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| DC input voltage | 3.3 V |
| Power consumption (max) | 3.3 W |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 55 mm |
|---|---|
| Depth | 55 mm |
| Height | 12.1 mm |
| Weight | 23 g |
| Package width | 90 mm |
|---|---|
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 32 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | CE, UKCA, RoHS, REACH, WEEE |
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
