Brainboxes Pure Embedded 5 Port 10/100 Ethernet Switch Module
Part number PE-505
EMBEDDED 10/100 5 PORT SWITCH INDUSTRIAL ETHERNET SWITCH
- Pure Embedded Industrial 5 Port 10/100 Ethernet Switch
- 5x Port 10/100 Unmanaged Ethernet Switch
- Power Input: +3.3 or 5 VDC
- Low Power Consumption: 2.5 W Max
- Operating Temperature Rating: -40 °C to +85 °C /-40 °F to +185 °F
- Pure Embedded
- Manufacturer
- BRAINBOXES LTD
- Part number
- PE-505
- Term
- Per Ingram SKU HK1720
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

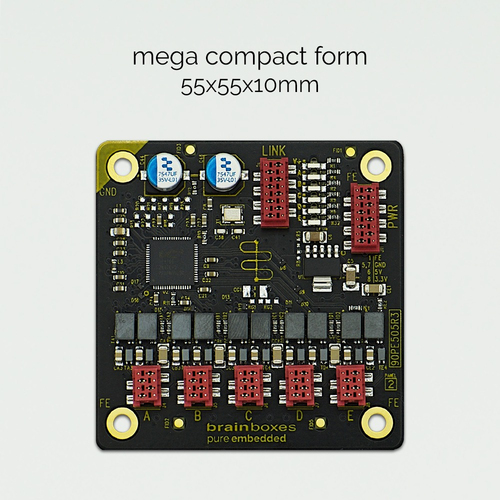

PE-505 Pure Embedded Industrial 5 Port 10/100 Ethernet Switch has a mega compact form – at 55x55x10mm it's smaller than a standard business card.

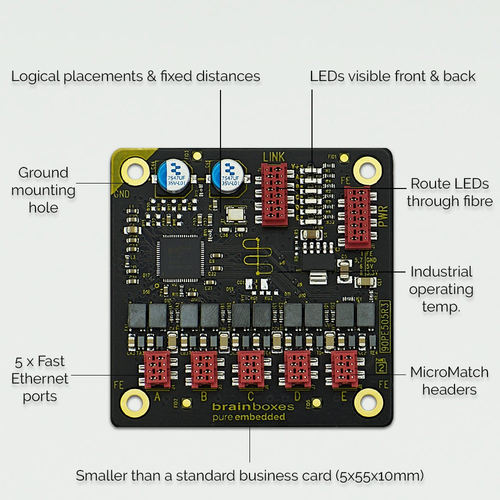

3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.

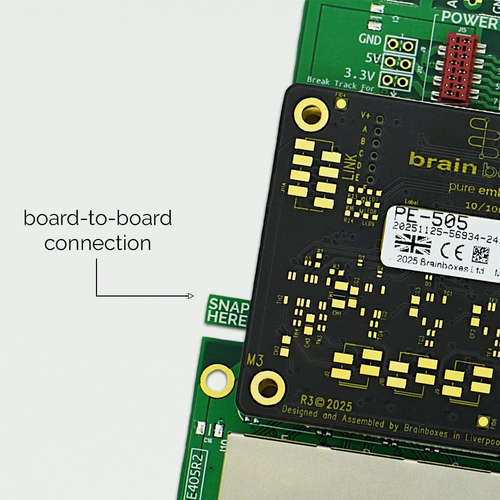

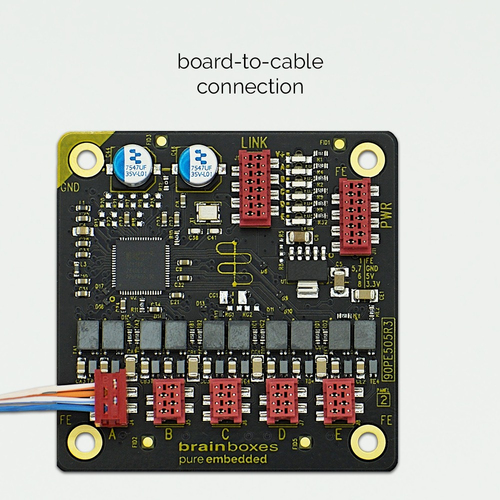

Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes, or by electrical signal wired out of the connector.
Specifications
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Rack mounting | No |
|---|---|
| Stackable | No |
| Form factor | Embedded |
| Product colour | Multicolour |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| DC input voltage | 3.3 V |
| Power consumption (max) | 2.5 W |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -40 - 85 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 55 mm |
|---|---|
| Depth | 55 mm |
| Height | 7.1 mm |
| Weight | 18 g |
| Package width | 90 mm |
|---|---|
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 27 g |

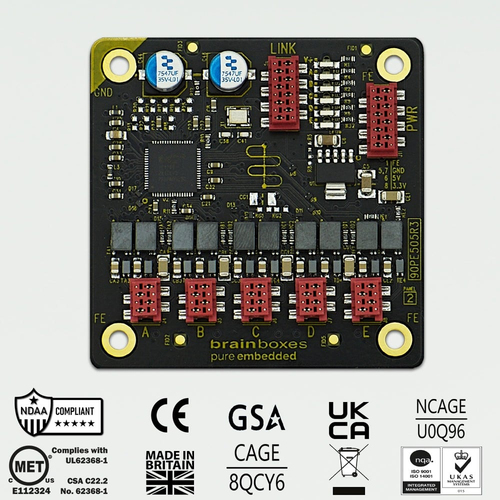

| Certification | CE, UKCA, RoHS, REACH, WEEE |
|---|
| Country of origin | United Kingdom |
|---|---|
| Harmonized System (HS) code | 851762 |
