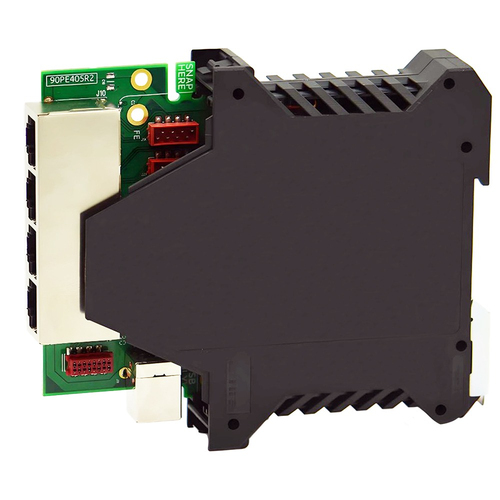

Brainboxes Pure Embedded 5 Port Gigabit Ethernet Switch Eval Kit
Part number PE-415
PE 5 PORT GBE SWITCHEVALUATION TEST DEBUG PROTOTYPES BEFORE INSTA
- Pure Embedded Industrial Gigabit Ethernet Evaluation Kit
- Power Input: +3.3 to 5 VDC
- Low Power Consumption: 3.3 W Max
- Operating Temperature Rating: -40 °C to +80 °C /-40 °F to +176 °F
- Pure Embedded
- Manufacturer
- BRAINBOXES LTD
- Part number
- PE-415
- Condition
- New
- Category
- Network Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
Pure Embedded Industrial Gigabit Ethernet Switch Evaluation Kit - allows easy access to all features of the PE-515* and allows for further testing and debugging within a prototype system before any commitment to custom fixtures or designs is made.

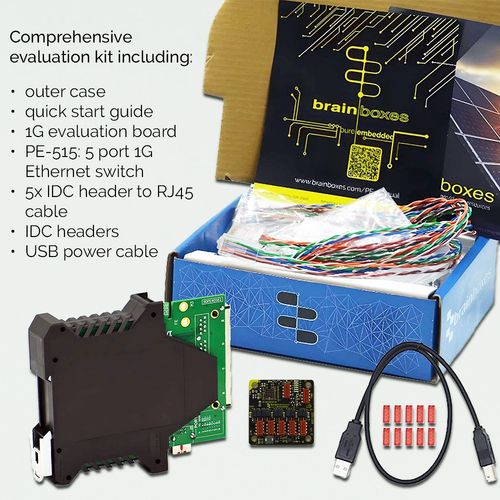

PE-415 Embedded Industrial Gigabit Ethernet Evaluation Kit includes:

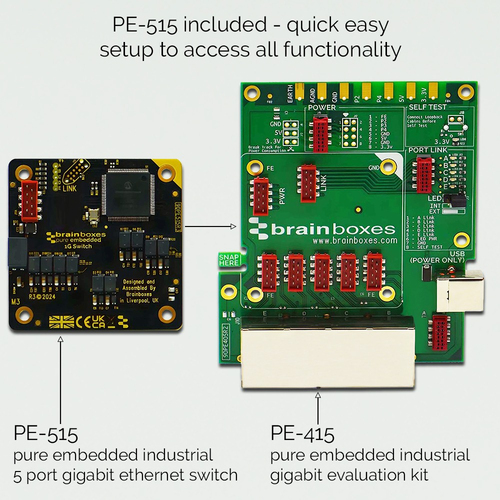

Pure Embedded Industrial 5 Port Gigabit Ethernet Switch (PE-515)*

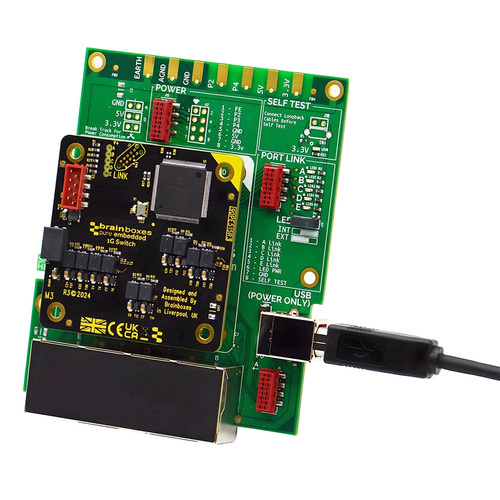

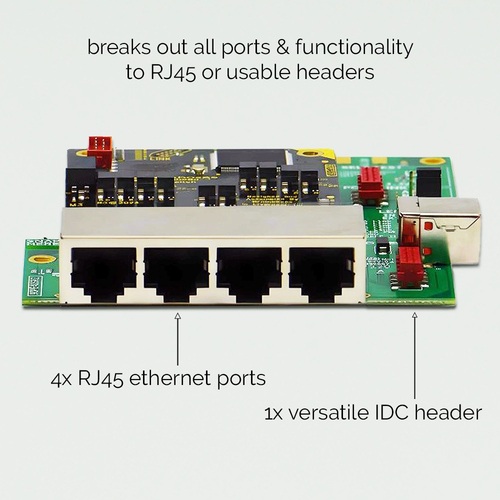

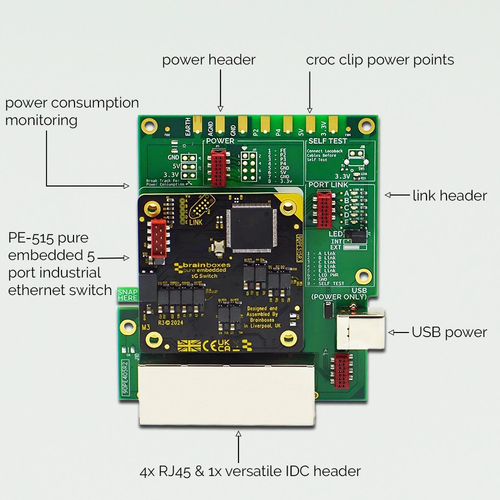

Evaluation Board (breaks out all ports and functionality to RJ45 or usable headers)
5x IDC Header to RJ45 Cable
IDC Headers

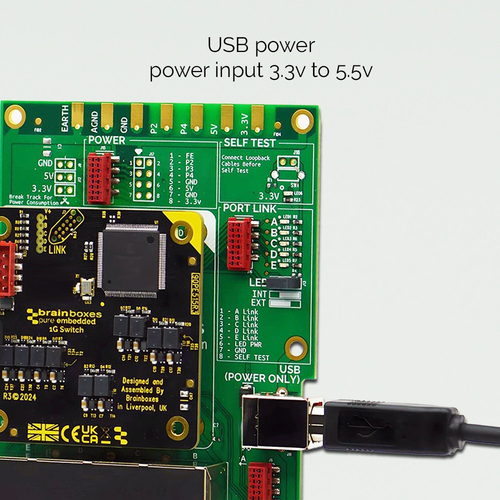

USB Power Cable
*PE-515 Pure Embedded Industrial 5 Port Gigabit Ethernet Switch
3D CAD files and PCB footprints
Mega compact form – smaller than a standard business card (55x55x10mm)
Seamless integration with design software - logical placements and fixed distances
Board-to-board and board-to-cable connection
Stability of design guaranteed for min. 10 years
LEDs visible in all orientations – option to route through fibre
Specifications
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Form factor | Embedded |
|---|---|
| Product colour | Multicolour |
| Export Control Classification Number (ECCN) | 5A991.b |
|---|
| Power source | DC |
|---|---|
| DC input voltage | 3.3 V |
| Power consumption (max) | 3.3 W |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 117 mm |
|---|---|
| Depth | 98 mm |
| Height | 22 mm |
| Weight | 123 g |
| Package width | 135 mm |
|---|---|
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 261 g |
| Certification | CE, UKCA, RoHS, REACH, WEEE |
|---|
| Harmonized System (HS) code | 851762 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
