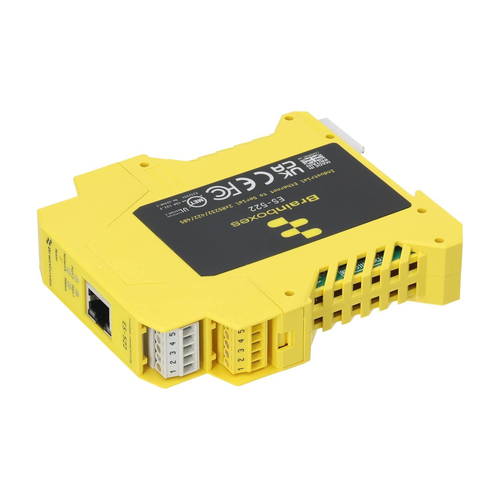

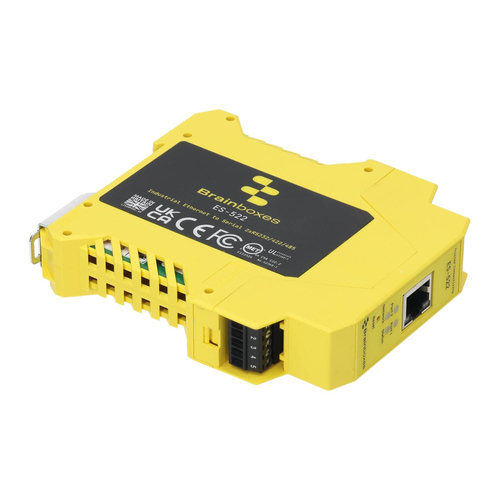

Brainboxes ES-522 Industrial Ethernet to Serial 2xRS232/422/485
Part number ES-522
RS232/422/485 -30 TO +80 TEMP RANGE
- 2 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
- Data rate from 110 to 921,600 baud (1 MegaBaud). Removable, colour-coded, number terminal blocks
- Install Virtual Com ports in Windows, tunnel over ethernet between 2 devices, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more
- Serial Port Tunnelling allows serial cable replacement over any distance, no software required
- -40°C to +80°C/-40ºF to +176ºF Temperature range

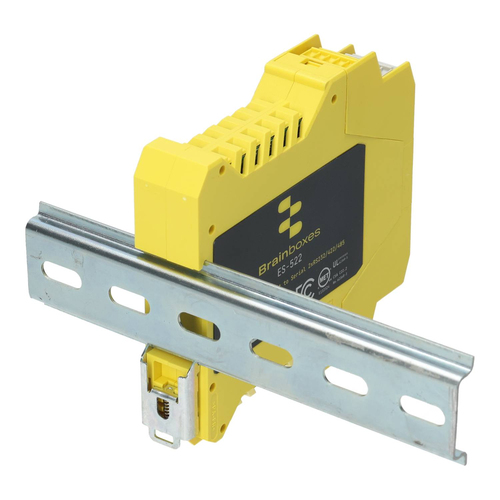

- Robust, Slim Design, Integrated DIN rail mount
- Manufacturer
- BRAINBOXES LTD
- Part number
- ES-522
- Condition
- New
- Category
- Network Devices › Servers
- 1GPA category
- Hardware
Overview
Ethernet to Serial Device with 2 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-522 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.
Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Specifications
| Serial ports quantity | 2 |
|---|---|
| Serial interface type | RS-232, RS-422/485 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA, UL |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Cabling technology | 10/100BaseT(X) |
| Power consumption (max) | 2.9 W |
|---|---|
| Power consumption (typical) | 1.4 W |
| Input voltage | 5 - 30 V |
| Windows operating systems supported | Windows XP, Windows Vista x64, Windows Vista, Windows 7 x64, Windows 7, Windows 8, Windows 8 x64, Windows 10 |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Width | 105 mm |
|---|---|
| Depth | 115 mm |
| Height | 23 mm |
| Weight | 113 g |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 206 g |
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -30 - 80 °C |
| Compatible operating systems | Windows XP/Vista/Server 2007/Server 2008/7/8 Linux |
|---|
| Product colour | Yellow |
|---|
| Country of origin | United Kingdom |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
