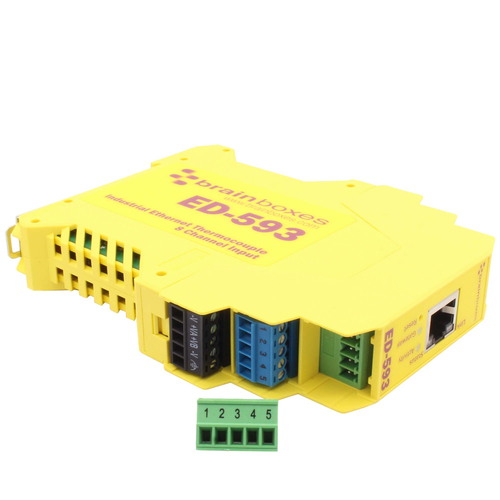

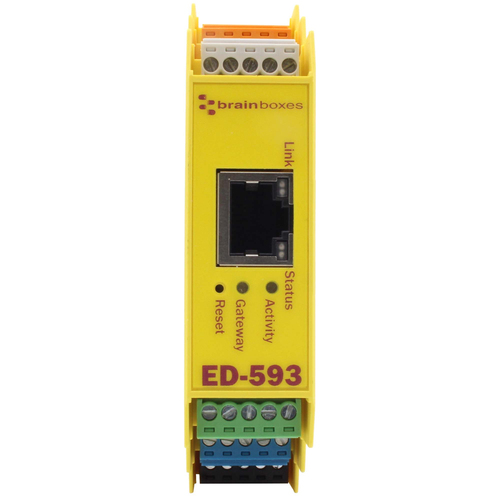

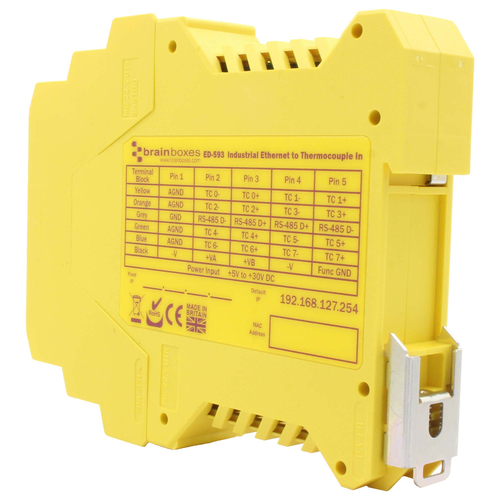

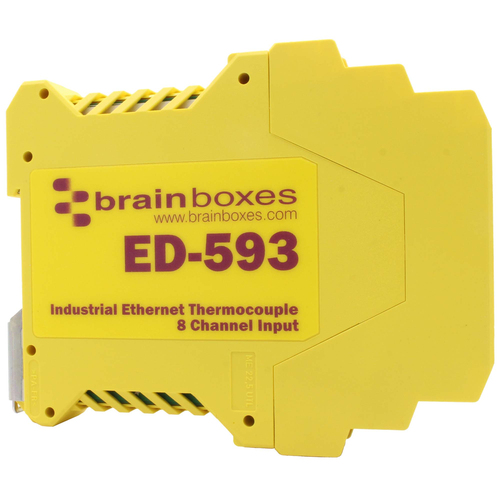

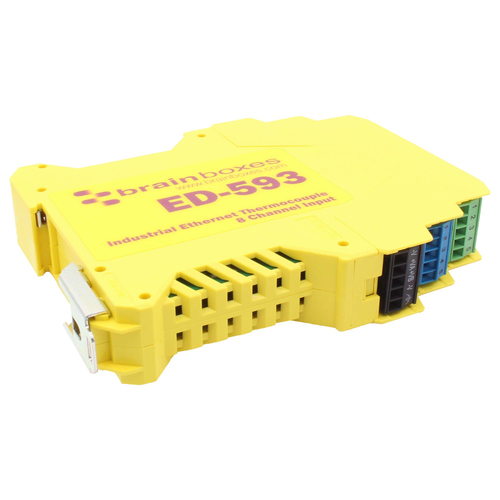

Brainboxes Ethernet to 8 Channel Thermocouple Input
Part number ED-593
AV ACCESSORY - 8 THERMOCOUPLE INPUTS; FACTORY FLOOR PROCESS CONTROL AND AUTOMATI
- 8 Thermocouple Inputs
- Configurable RS485 HD Serial Gateway Port
- Factory floor process control and automation, integrated DIN rail mount
- Supports simple ASCII
- -40°C to +80°C temperature range
- Software APIs for Visual Basic, C# and more
- Manufacturer
- BRAINBOXES LTD
- Part number
- ED-593
- Condition
- New
- Category
- Input & Output Devices › Serial/Parallel & Io
Overview
Ethernet to Thermocouple device with 8 input channels. Powerful ARM 80 MHz, 32 Bit CPU.
The device can be controlled over TCP/IP using simple ASCII commands. Additionally, Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device can be configured from any modern web browser, and can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.
The ED product range is designed for harsh environments.
Specifications
| Module type | Analog |
|---|---|
| Signal direction | Input |
| Channels quantity | 8 channels |
| Serial interface type | RS-485 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | DCON ASCII (over TCP or Virtual COM port) |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| DIN rail mounting | Yes |
| Maximum output voltage | 30 V |
| Isolation | 1.5 kV |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Product colour | Multicolour |
| Power consumption | 100 mA |
|---|---|
| DC input voltage | 5 - 30 V |
| Maximum input voltage | 30 V |
| Power supply type | PW-600/PW-650 |
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 135 mm |
|---|---|
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 192 g |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 192 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA, UL |
|---|
| Country of origin | United Kingdom |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
