Brainboxes Ethernet to 4 Channel RTD Input
Part number ED-582
ETHERNET TO RTD -22F TO +176F
- 4 High Precision RTD Inputs
- Configurable RS485 HD Serial Gateway Port
- Compatible with PT100, PT1000 and Ni120
- Factory floor process control and automation, integrated DIN rail mount
- Supports simple ASCII TCP Protocol
- Measurement range -200°C to +600°C
- Software APIs for Visual Basic, C# and more
- Manufacturer
- BRAINBOXES LTD
- Part number
- ED-582
- Condition
- New
- Category
- Network Devices › Routers & Components
- 1GPA category
- Hardware
Overview
Ethernet to RTD device: 4 input channels. Powerful ARM 120MHz, 32 Bit CPU
The device can be controlled over simple ASCII TCP Protocol or ASCII over virtual COM port. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more.
Can be configured and secured from a web browser, and installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.
The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
Specifications

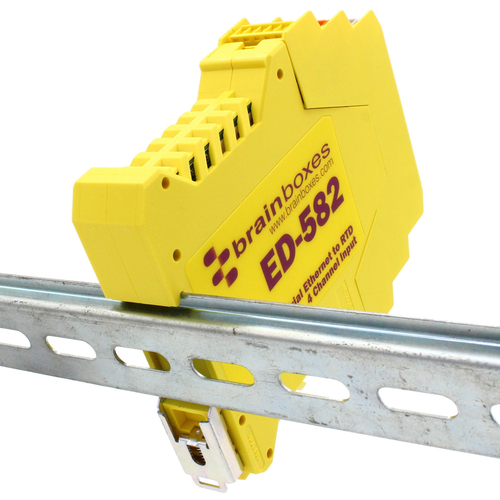

| Module type | Analog |
|---|---|
| Signal direction | Input |
| Channels quantity | 4 channels |
| Serial interface type | RS-485 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | DCON ASCII over TCP or Com Port |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| DIN rail mounting | Yes |
| Maximum output current per channel | 0.85 A |
| Maximum combined load | 6.8 A |
| Isolation | 1.5 kV |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, Windows 7 x64, Windows Vista x64, Windows 8 x64, Windows XP x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Product colour | Yellow |
| Power consumption | 100 mA |
|---|---|
| DC input voltage | 5 - 30 V |
| Maximum input voltage | 35 V |
| Power supply type | PW-600/PW-650 |
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 135 mm |
|---|---|
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 225 g |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 225 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
|---|
| Country of origin | United Kingdom |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |

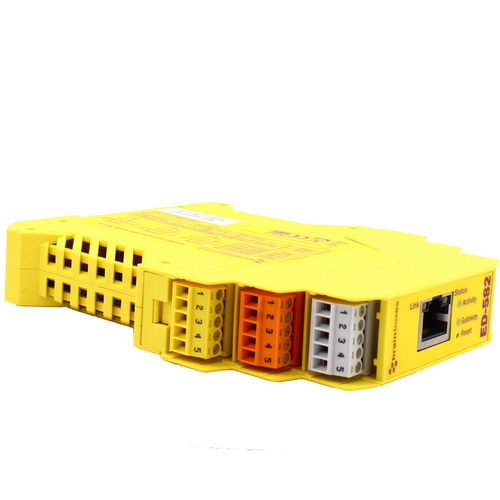

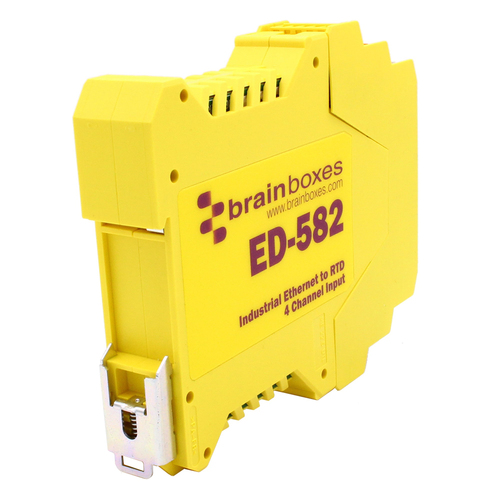

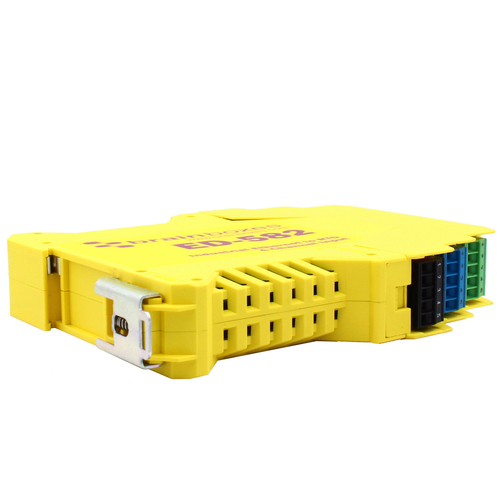

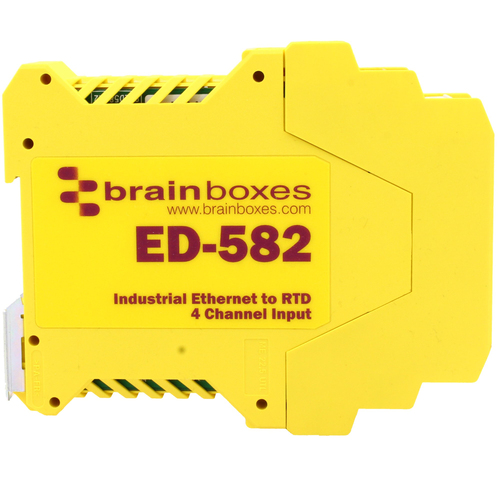

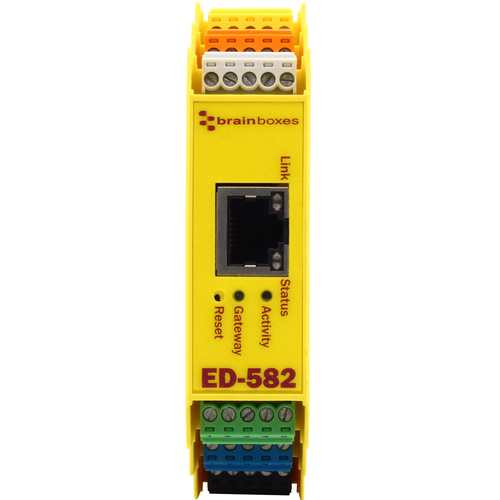

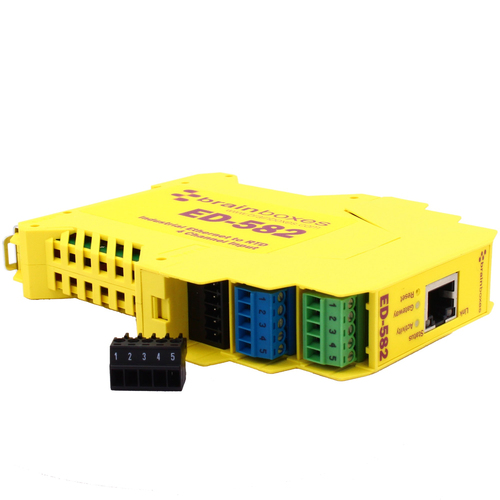

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
