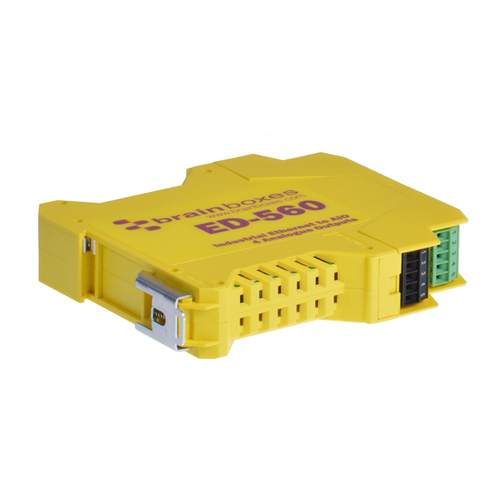

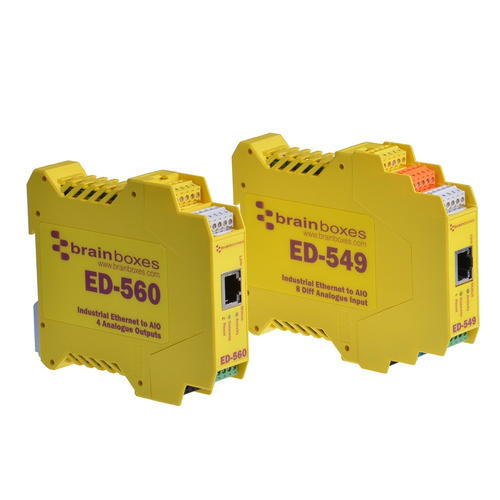

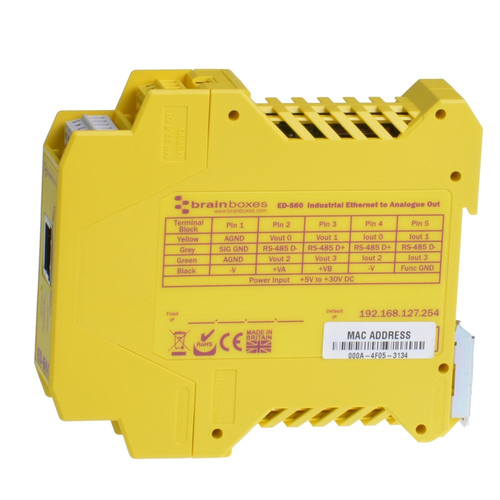

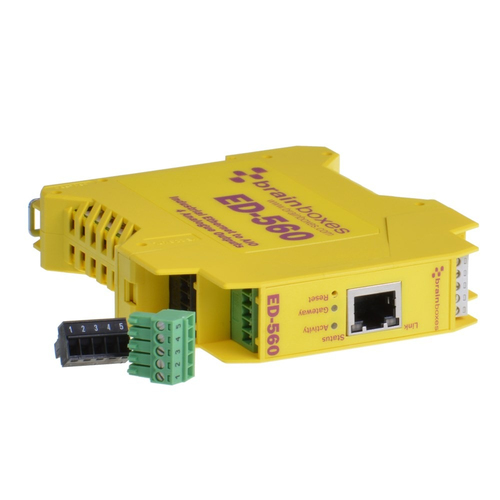

Brainboxes ED-560 Ethernet to 4 Analogue Outputs + Serial Gateway
Part number ED-560
ETHERNET TO TO 4 ANALOG I/O SELECT CURRENT/VOLTAGE -22 +176F
- 4 Analogue Outputs - individually selectable as Current or Voltage
- Configurable RS485 HD Serial Gateway Port
- Precision 0-10V and 4-20mA outputs
- Control instantly from any web-browser
- -40°C to +80°C Operating Temperature range
- Use with Modbus or ASCII commands
- Manufacturer
- BRAINBOXES LTD
- Part number
- ED-560
- Term
- Per Ingram SKU 8C8753
- Condition
- New
- Category
- Network Devices › Servers
- 1GPA category
- Hardware
Overview
The ED-560 has 4 Analogue Outputs + RS485 Expansion. It is suitable for high-precision control of voltages and currents.
As well as the popular 0-10V and 4-20mA outputs, the ED-560 allows full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 4 analogue outputs. Each channel is individually configurable for voltage or current output with its own programmable gain.
The device installs as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. From other platforms and operating systems the device can be controlled over TCP/IP. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the ED device using Microsoft .NET framework, C++, Java, Javascript, PHP and more. The device can be configured and secured from a web browser.
The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Specifications
| Module type | Analog |
|---|---|
| Signal direction | Output |
| Channels quantity | 4 channels |
| Digital output channels quantity | 4 channels |
| Serial interface type | RS-485 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | Modbus TCP or DCON ASCII (over TCP or Virtual COM port) |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |

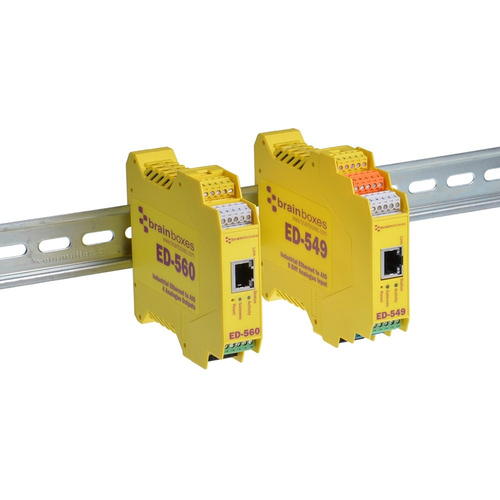

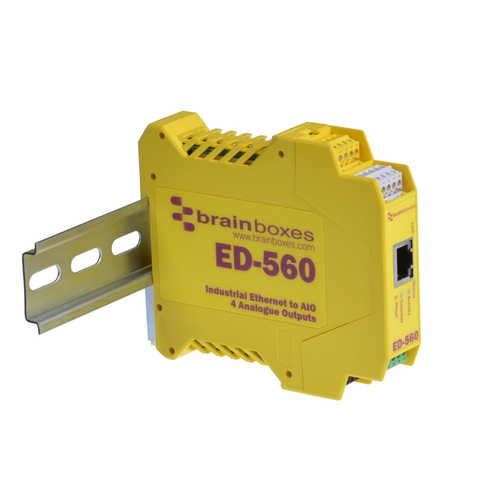

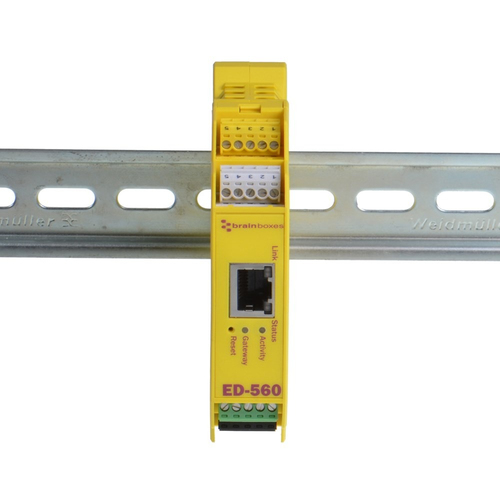

| DIN rail mounting | Yes |
| Maximum output voltage | 30 V |
| Isolation | 1.5 kV |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64 |
| Mobile operating systems supported | Android, iOS |
| Product colour | Yellow |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Power consumption | 100 mA |
|---|---|
| DC input voltage | +5 - +30 V |
| Maximum input voltage | 35 V |
| Power supply type | PW-600/PW-650 |
| Operating temperature (T-T) | -30 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Relative humidity | 5 - 95% |
| Width | 135 mm |
|---|---|
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 197 g |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 197 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA, UL |
|---|
| Country of origin | United Kingdom |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
