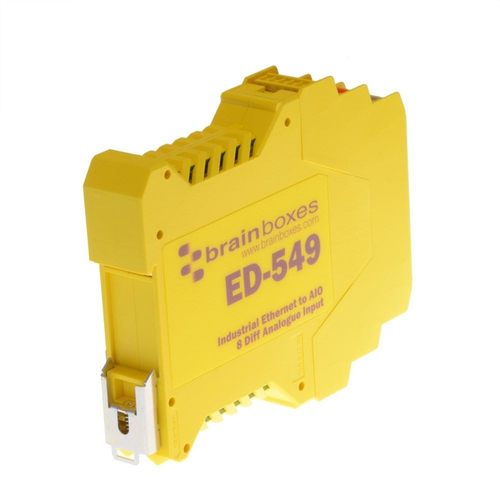

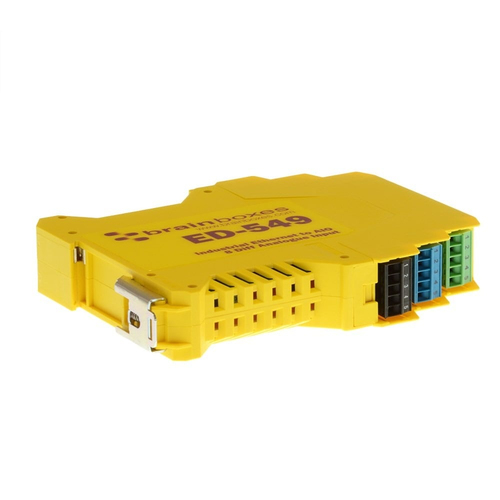

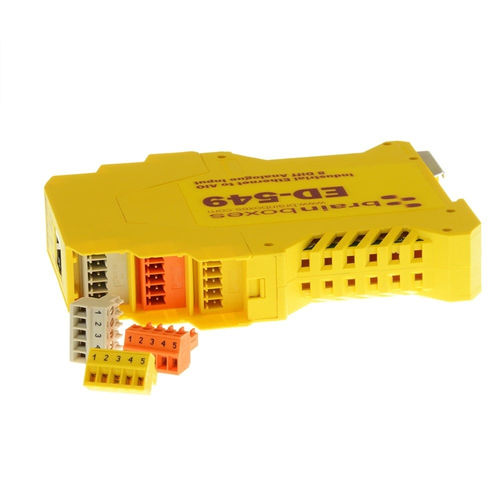

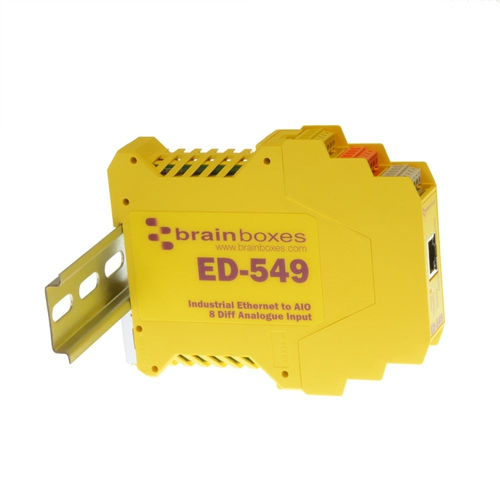

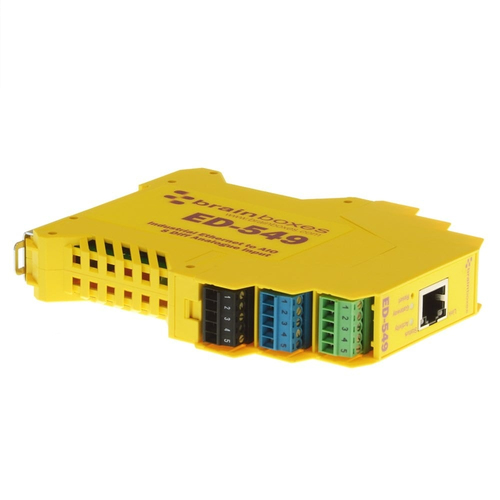

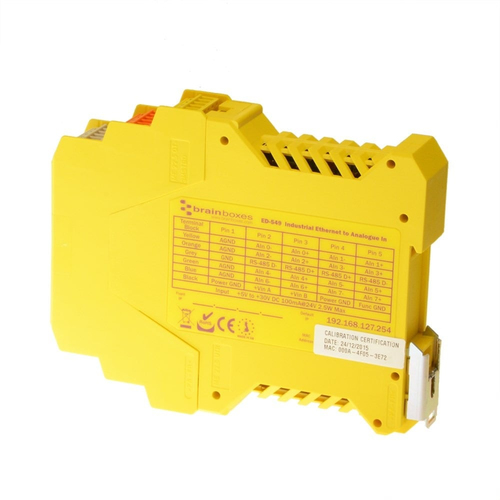

Brainboxes ED-549 Ethernet to 8 Analogue Inputs + Serial Gateway
Part number ED-549
8 ANALOGUE INPUTS, INDEPENDENTLY CONFIGURABLE AS DIFFERENTIAL VOLTAGE INPUTS OR
- 8 Differential Channels, individually configurable
- Configurable RS485 HD Serial Gateway Port
- 0-10V and 4-20mA inputs - connect all types of sensors

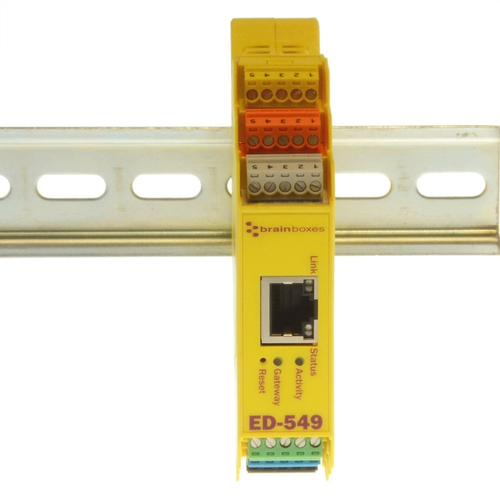

- Factory floor process control and automation, Integrated DIN rail mount
- Monitor instantly from any web-browser
- -40°C to +80°C Temperature range
- Programmable Gain Amp allows full resolution measurements down to 75mV
- Manufacturer
- BRAINBOXES LTD
- Part number
- ED-549
- Condition
- New
- Category
- Input & Output Devices › Serial/Parallel & Io
- 1GPA category
- Hardware
Overview
Ideal for all kinds of industry standard sensors and transducers. The ED-549 has 8 Analogue Inputs + RS485 Gateway. It is suitable for high-precision measurements of voltages and currents. Most parameters in the real world are measured using sensors generating analogue outputs. Brainboxes ED-549 takes these real world signals and turns them into data on your network. As well as the popular 0-10V and 4-20mA input devices, the inbuilt Programmable Gain Amplifier (PGA) allows full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 8 analogue inputs. Each channel is individually configurable for voltage or current input with its own programmable gain.
Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device can be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Specifications
| Module type | Analog |
|---|---|
| Signal direction | Input |
| Channels quantity | 8 channels |
| Digital input channels quantity | 0 channels |
| Digital output channels quantity | 0 channels |
| Serial interface type | RS-485 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | Modbus TCP or DCON ASCII (over TCP or Virtual COM port) |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| DIN rail mounting | Yes |
| Isolation | 1.5 kV |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64 |
| Mobile operating systems supported | Android, iOS |
| Product colour | Yellow |
| Power consumption | 100 mA |
|---|---|
| DC input voltage | 5 - 30 V |
| Maximum input voltage | 35 V |
| Power supply type | PW-600/PW-650 |
| Operating temperature (T-T) | -30 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Relative humidity | 5 - 95% |
| Width | 135 mm |
|---|---|
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 233 g |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 233 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA, UL |
|---|
| Country of origin | United Kingdom |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
