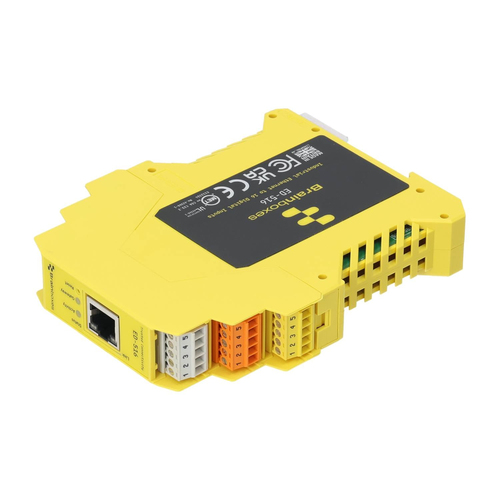

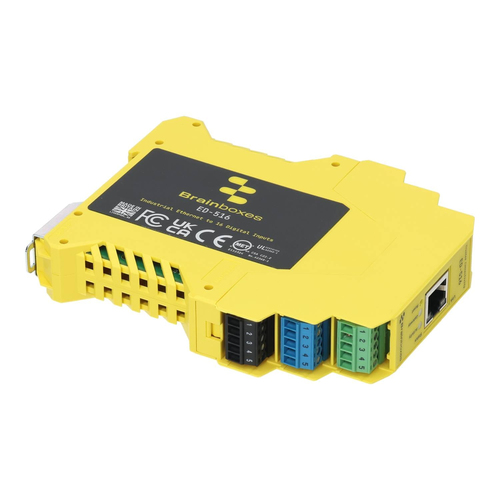

Brainboxes ED-516 Ethernet to 16 Digital Inputs + Serial Gateway
Part number ED-516
ETHERNET TO 16 DIGITAL INPUTS
- 16 Digital Inputs
- Configurable RS485 HD Serial Gateway Port
- Monitor any input from TTL to high voltage high current industrial devices

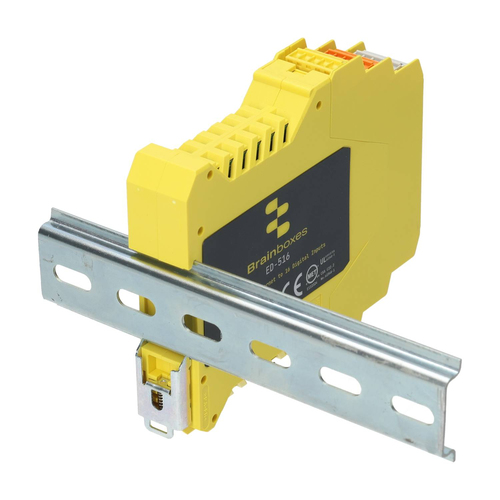

- Factory floor process control and automation, Integrated DIN rail mount
- Supports simple ASCII or industry standard Modbus TCP
- -40°C to +80°C Temperature range
- Software APIs for Visual Basic, C# and more
- Manufacturer
- BRAINBOXES LTD
- Part number
- ED-516
- Condition
- New
- Category
- Network Devices › Routers & Components
- 1GPA category
- Hardware
Overview
Ethernet to DIO device: 16 non-isolated digital input channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU.
The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.
The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
Specifications
| Module type | Digital |
|---|---|
| Signal direction | Input |
| Digital input channels quantity | 16 channels |
| Digital output channels quantity | 0 channels |
| Serial interface type | RS-485 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | Modbus TCP or DCON ASCII (over TCP or Virtual COM port) |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| DIN rail mounting | Yes |
| Maximum output current per channel | 0.85 A |
| Maximum combined load | 6.8 A |
| Isolation | 1.5 kV |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, Windows XP x64, Windows Vista x64, Windows 8 x64, Windows 7 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Product colour | Yellow |
| Power consumption | 100 mA |
|---|---|
| DC input voltage | 5 - 30 V |
| Maximum input voltage | 35 V |
| Power supply type | PW-600/PW-650 |
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 135 mm |
|---|---|
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 230 g |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 230 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA |
|---|
| Country of origin | United Kingdom |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
