Brainboxes ED-004 Ethernet to 4 Digital IO and RS232 Serial Port
Part number ED-004
ETHERNET TO 4 DIO + ETHERNET TO
- 4 Digital Inputs/Outputs + RS232 Serial Port
- Complete Ethernet to Serial Device Server: up to 1 MegaBaud
- Factory floor process control and automation
- User friendly software interface, Legacy compatible
- -10ºC to +60ºC / +14ºF to +140ºF Temperature range, Wall mountable
- Software APIs for Visual Basic, C# and more
- Manufacturer
- BRAINBOXES LTD
- Part number
- ED-004
- Condition
- New
- Category
- Network Devices › Routers & Components
- 1GPA category
- Hardware
Overview

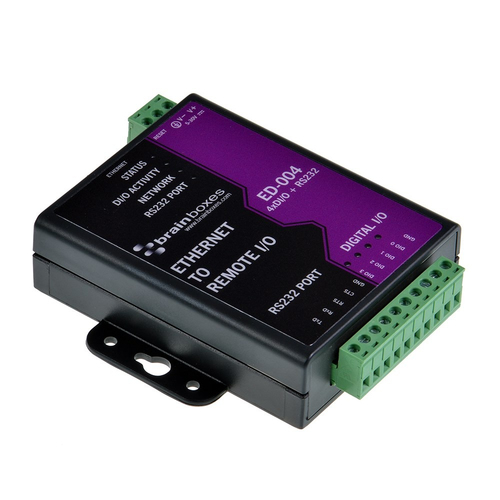

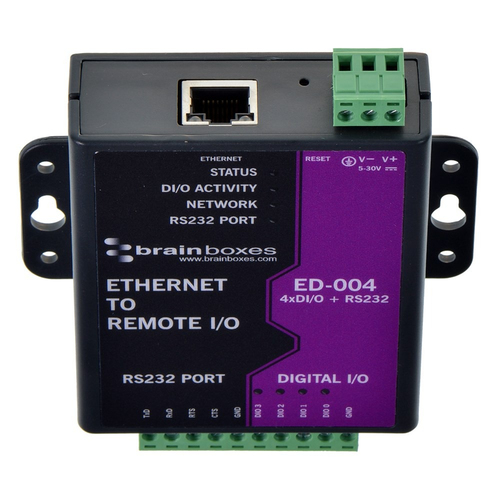

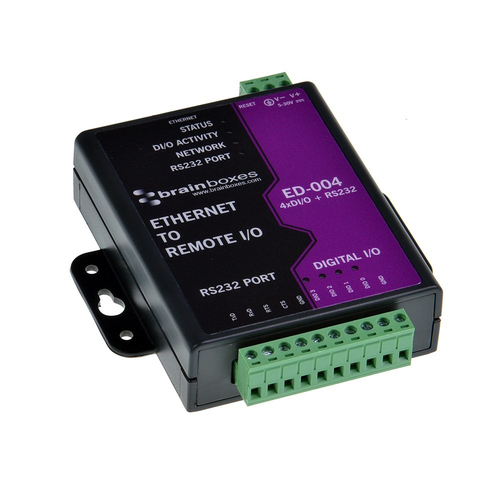

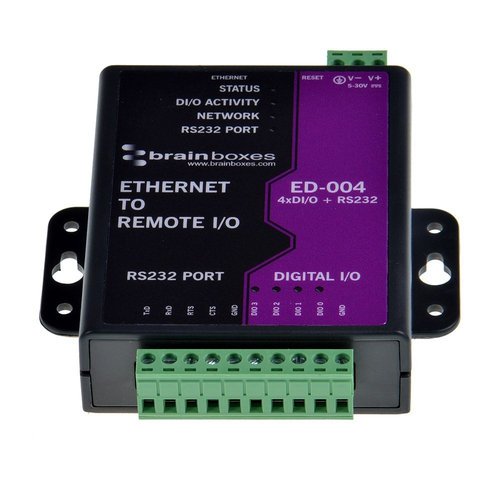

Ethernet to DIO device with Serial port: 4 digital input channels or 4 digital output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Specifications
| Module type | Digital |
|---|---|
| Signal direction | Input/output |
| Channels quantity | 4 channels |
| Digital input channels quantity | 4 channels |
| Digital output channels quantity | 4 channels |
| Serial interface type | RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | Modbus TCP or DCON ASCII (over TCP or Virtual COM port) |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| Maximum output voltage | 30 V |
| Maximum output current per channel | 0.85 A |
| Maximum combined load | 3.4 A |
| Electrostatic Discharge (ESD) protection | 16 kV |
| Isolation | 1.5 kV |
| Overheat protection | Yes |
| Overheat shutdown (typical) | 175 °C |
| Overheat shutdown (min) | 150 °C |
| Short circuit protection | Yes |
| Short circuit protection up to | 36 V |
| Quick-Stop function | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 |
| Mobile operating systems supported | Android, iOS |
| Product colour | Black, Purple |
| Power consumption | 100 mA |
|---|---|
| Power consumption note | 2.5W Max: 220mA @+5VDC / 36mA @+30VDC |
| DC input voltage | 5 - 30 V |
| Maximum input voltage | 35 V |
| Power supply type | 1: PW-600, 2: PW-650 |
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | 0 - 70 °C |
| Width | 135 mm |
|---|---|
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 222 g |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 222 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
|---|
| Country of origin | United Kingdom |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
