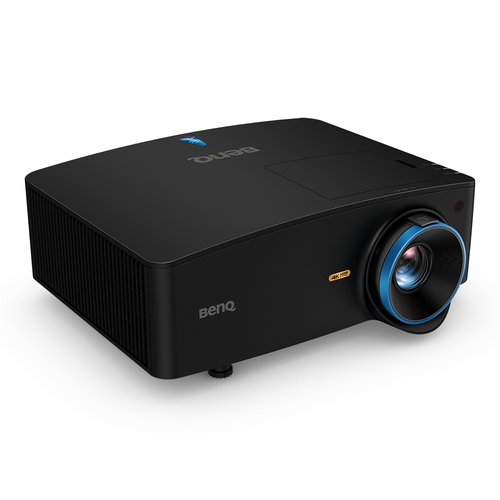

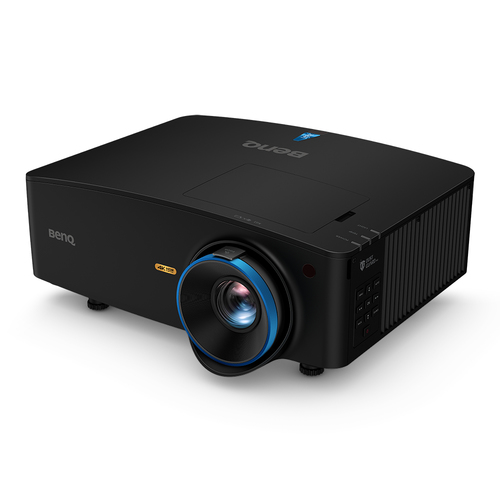

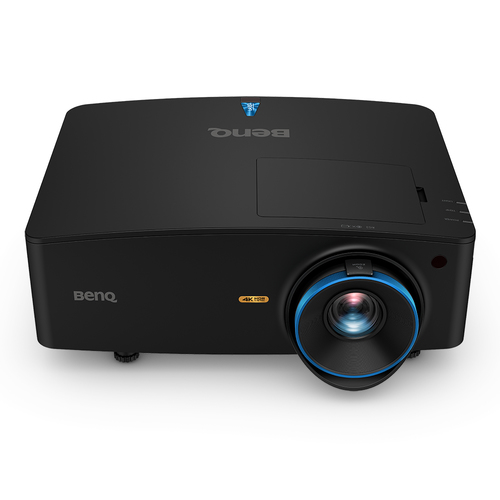

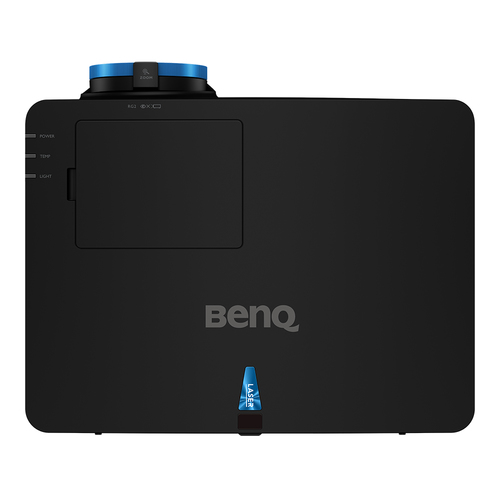

BenQ LK936ST data projector Short throw projector 5100 ANSI lumens DLP UHD 4K (3840x2160) 3D Black
Part number LK936ST
4K LASER SHORT THROW PROJ 4K LASER 3840X2160 DLP 5100AL
- TRUE 4K UHD RESOLUTION - 8.3 million pixels enable you to see every subtle detail on any image
- AMAZING COLOR ACCURACY: 92% color accuracy to Rec 709 for home theater level color accuracy on movies and games
- 5100 ANSI LASER LUMENS: For large images in rooms with ambient light
- SHORT-THROW LENS: Fill a 14-foot wide screen from less than 12 feet away
- MAINTENANCE-FREE LASER: Dustproof sealed laser engine with 20,000 hours of life at full power
- Manufacturer
- BenQ
- Part number
- LK936ST
- Condition
- New
- Category
- Presentation Devices › Projectors
Overview
Excellent Installation Flexibility & Compatibility
Fixed Short Throw Ratio with Zoom to Prevent Glare and Shadows
With an innovative 0.8 short throw ratio and 1.1x zoom capability, BenQ LK936ST are able to produce larger-than-life images in tight spaces. When installed 14 to 15 feet from the screen, it can project images nearly 10 feet tall. This allows the projector to be placed above and behind the hitting area without creating unsightly shadows and glare. No visual distractions means your practice will be more productive than ever.
Large H/V Lens Shift for Convenient Installation
Sometimes, due to obstruction or obstacles, a projector needs to be mounted off-center. In cases like these the LK936ST lens shift feature can be used to properly align the image, shifting it up to 60% vertically and 23% horizontally relative to the size of the screen. After shifting, 3D keystone correction can be applied to achieve a flawless projected image.
* For actual lens shift measurements, please refer to spec chart.
3D Keystone and Corner Fit for Ideal Projection Alignment
To counteract the trapezoid effect that can occur when a projector is installed off-center, BenQ LK936ST offers a three-dimensional keystone correction range up to ±40° on both the horizontal and vertical axes, and that can rotate the projected image clockwise or counterclockwise. Corner Fit control can adjust each corner respectively, for perfectly aligned image geometry.
360° and Portrait Projection Accommodate Different Spaces
BenQ laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.
Digital Shrink and Shift without Distortion
LK936ST’s digital image shrinking and shift lets installers shrink the image to 75% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.
S/PDIF for 5.1 audio channel surround sound output
LK936ST is equipped with a S/PDIF port that is able to support 5.1 channel surround sound output. The High-definition audio upgrade transforms your projector into a home theater system that offers immersive entertainment experience of home golf, movies, music, gaming, and more.
Integration with Home Automation Control System
LK936ST can be connected to the home automation control system, allowing you to manage and control your projector through your smartphone, tablet or personal computer.
HDBaseT for Uncompressed Transmission Up to 100m and Control
LK936ST is equipped with groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.
Superb Image Quality
Revolutionary Laser Technology
BenQ, the world’s #1 DLP brand, introduces a full line of innovative projectors featuring proprietary DLP high brightness laser technology for large venue applications. Combining high brightness, excellent image quality, installation flexibility and a maintenance-free laser light source, BenQ Laser Projectors enable immersive public displays and innovative visual communication in ways never before possible.
Superior Brightness
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy.
Superior Performance
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Superior Durability
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 20,000 hours without degradation.
4K UHD Image Quality for Flawless Presentation with Subtle Details
LK936ST produces 4K UHD 3840 x 2160 resolution with 8.3 million distinct pixels for each frame to achieve CTA’s standard, and it utilizes the revolutionary 0.47” single-DMD DLP technology to maximize the projector’s sleek, compact profile for immersive environment. With four times the resolution of Full HD 1080p, 4K UHD delivers awe-inspiring clarity and crisply defined details.
Optimize Image Quality with 4K Image Upscaling Technology
Specifications
| Supported aspect ratios | 2.4:1, 4:3, 16:10, 16:9 |
|---|---|
| Smart projector | Yes |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projector brightness | 5100 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:9 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 240 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Focal length range | 8.6 - 9.4 mm |
|---|---|
| Aperture range (F-F) | 1.83 - 1.86 |
| Zoom capability | Yes |
| Zoom ratio | 1.1:1 |
| Throw ratio | 0.81 - 0.89 |
| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
| Offset | 0% |
| Full HD | Yes |
|---|---|
| 3D | Yes |
| Supported graphics resolutions | 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 800 x 592, 800 x 600 (SVGA), 832 x 624, 832 x 642, 848 x 480, 854 x 480 (WVGA), 900 x 720, 960 x 960, 960 x 480, 960 x 540, 960 x 576, 960 x 720, 1024 x 576 (WSVGA), 1024 x 600, 1024 x 640, 1024 x 768 (XGA), 1024 x 800, 1032 x 452, 1056 x 144, 1080 x 1080, 1152 x 864 (XGA+), 1152 x 870, 1200 x 1600, 1200 x 1920, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 768, 1280 x 800 (WXGA), 1280 x 800, 1280 x 960, 1280 x 1280, 1284 x 560, 1296 x 732, 1360 x 768 (WXGA), 1366 x 480, 1366 x 760, 1366 x 768, 1366 x 768, 1368 x 768, 1376 x 768, 1400 x 1050 (SXGA+), 1400 x 1080, 1400 x 900, 1440 x 1050, 1440 x 1080, 1440 x 234, 1440 x 900 (WXGA+), 1440 x 900, 1440 x 912, 1536 X 6144, 1536 x 2048, 1536 x 1536, 1600 x 1200 (UXGA), 1600 x 1280, 1600 x 600, 1600 x 900, 1600 x 904, 1680 x 1050 (WSXGA+), 1680 x 1056, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 1440, 1920 x 1600, 1920 x 2160, 1920 x 480, 1920 x 502, 1920 x 1920, 1920 x 720, 1920 x 832, 2032 x 1920, 2048 x 1080, 2048 x 1152, 2048 x 1280, 2048 x 1520, 2048 x 1536 (QXGA), 2048 x 1640, 2048 x 2560, 2048 x 2048, 2192 x 2192, 2304 x 1296, 2304 x 1728, 2520 x 1520, 2550 x 1440, 2560 x 1080, 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1656, 2560 x 1920, 2560 x 1944, 2560 x 2048, 2592 x 1520, 2592 x 1944, 2640 x 2640, 2688 x 1512, 2688 x 1520, 2800 x 2100, 2880 x 1264, 2880 x 1620, 2880 x 2880, 2880 x 2160, 2944 x 1656, 2992 x 2244, 3072 x 1728, 3072 x 2048, 3200 x 1800, 3264 x 2448, 3280 x 2048, 3440 x 1440, 3648 x 2736, 3840 x 1200, 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| HDMI version | 2.0b |
|---|---|

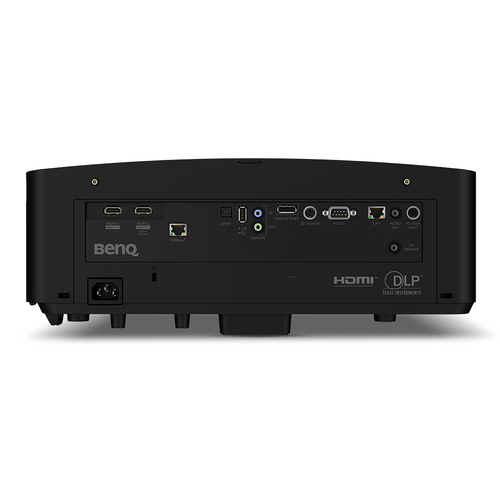

| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Noise level (economic mode) | 33 dB |
|---|---|
| HDCP | Yes |
| Preset modes | 3D, Bright, Presentation, sRGB |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 30 |
| Noise level | 40 dB |
| Built-in speaker(s) | Yes |
|---|---|
| RMS rated power | 10 W |
| Number of built-in speakers | 1 |
| Market positioning | Presentation |
|---|---|
| Product type | Short throw projector |
| Product colour | Black |
| Placement | Ceiling |
| Power source | AC |
|---|---|
| Power consumption (typical) | 440 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Width | 416 mm |
|---|---|
| Depth | 351 mm |
| Height | 166 mm |
| Weight | 7 kg |
| Remote control included | Yes |
|---|---|
| Cables included | AC, HDMI |
