Overview
Large Conference Room Solution

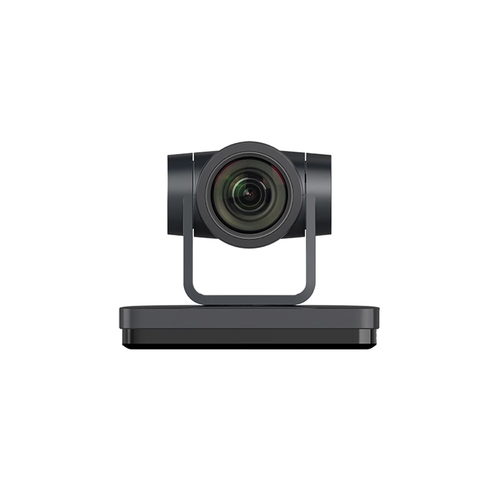

The DVY23 is a premium pan/tilt/zoom camera that offers ultra-clear video quality with 20x optical zoom and is ideal for large conferences held in large spaces. The 20x zoom is double the industry standard.
Specifications
Camera
| Camera type | Single camera |
|---|
| Zoom capability | Yes |
|---|
| Optical zoom | 20x |
|---|
| Digital zoom | 10x |
|---|
| Horizontal field of view | 55° |
|---|
| Vertical field of view | 31° |
|---|
| Minimum illumination | 0.5 lx |
|---|
| Focus adjustment | Auto/Manual |
|---|
| PTZ control | Yes |
|---|
Video
| Maximum frame rate | 30 fps |
|---|
| Supported video modes | 720p, 1080p |
|---|
Design
| Product colour | Black |
|---|
| Mounting type | Clip |
|---|
| Tilt angle range | -30 - 90° |
|---|
| Pan range | -170 - 170° |
|---|

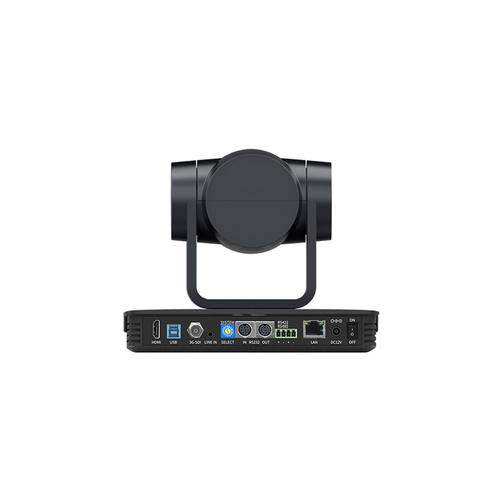

Ports & interfaces
| HDMI ports quantity | 1 |
|---|
| Power over Ethernet (PoE) ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Operating voltage | 12 V |
|---|
Packaging content
| Power supply included | Yes |
|---|
| Remote control included | Yes |
|---|
| Cables included | USB |
|---|
| Mounting kit | Yes |
|---|
System requirements
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
|---|
Performance
| Plug and Play | Yes |
|---|
Audio
| Built-in microphone | No |
|---|
Logistics data
| Harmonized System (HS) code | 85258900 |
|---|
Weight & dimensions
| Width | 181 mm |
|---|
| Depth | 116 mm |
|---|
| Height | 150 mm |
|---|
| Weight | 1.38 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
