Overview

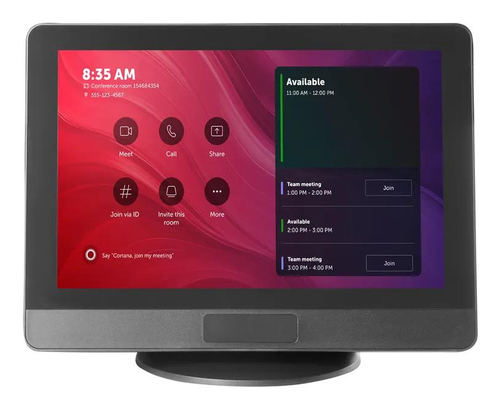

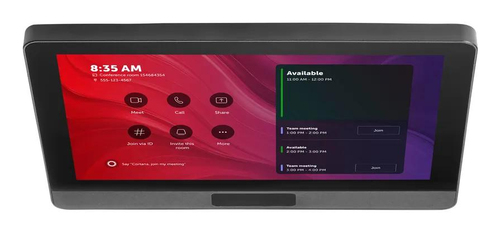

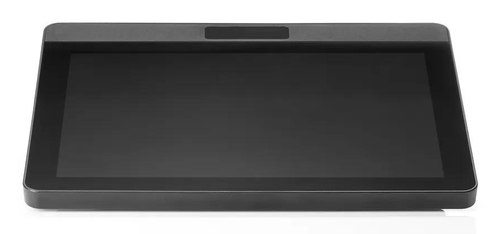

Intuitive control panel that pairs seamlessly with the ClickShare Hub wireless video conferencing room systems
The ClickShare Control Panel is an integral part of ClickShare Hub wireless video conferencing room system, providing an intuitive interface to start and manage hybrid meetings. With a single tap, you can launch your Microsoft Teams video call, ensuring a smooth and efficient meeting experience.
Specifications
Performance
| Product colour | Black |
|---|
| Product type | Video conferencing service management system |
|---|
Video
| HD type | WXGA |
|---|
| Maximum video resolution | 1280 x 800 pixels |
|---|
Ports & interfaces
| USB 2.0 Type-C ports quantity | 1 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Display
| Built-in display | Yes |
|---|
| Display diagonal | 25.6 cm (10.1") |
|---|
| Display resolution | 1280 x 800 pixels |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen type | Capacitive |
|---|
| Viewing angle, horizontal | 80° |
|---|
| Viewing angle, vertical | 80° |
|---|
| Display brightness | 300 cd/m² |
|---|
| Anti-glare screen | Yes |
|---|
Features
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
Logistics data
| Country of origin | China |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 0 - 85% |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 0 - 90% |
|---|
Power
| Power source type | USB |
|---|
| Power consumption (typical) | 7.3 W |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
Weight & dimensions
| Width | 187.9 mm |
|---|
| Depth | 76.9 mm |
|---|
| Height | 254.5 mm |
|---|
| Weight | 820 g |
|---|
Packaging content
| Control panel included | Yes |
|---|

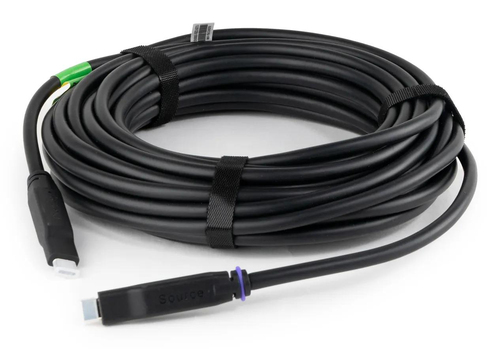

| Packaging content | ClickShare 10M 20W USB-C AOC cable, USB-C cable lock kit |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
