Barco ClickShare Bar Core video conferencing system 4 person(s) Ethernet LAN Video collaboration bar
Part number R9861632USB1
CLICKSHARE BAR CB CORE US WITH 1 BUTTON
- Crystal-clear, high-quality stereo audio
- Advanced AI-powered 4K camera
- Simplified installation
- Sound investment: fewer interventions, minimized downtime, future-proof platform
- Carbon-neutral product
- Manufacturer
- Barco
- Part number
- R9861632USB1
- Condition
- New
- Category
- Communications › Video/Audio Conf.
- 1GPA category
- Hardware
Overview

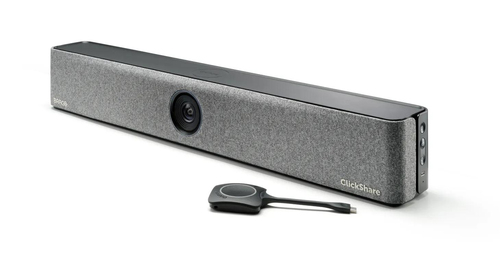

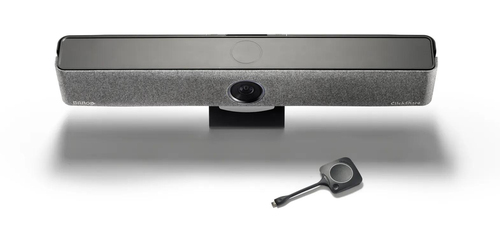

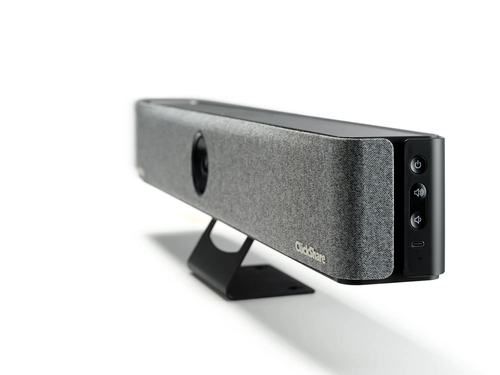

Video bar for engaging, effortless wireless conferencing
ClickShare Bar Core is a carbon-neutral, all-in-one video bar that enables engaging, effortless wireless conferencing in small and medium-sized meeting rooms with any videoconferencing platform. This solution ensures meeting participants feel heard and seen thanks to its high-quality AV capabilities while offering simplified installation and reduced Total Cost of Ownership.
Crystal-clear views and audio to make everyone feel seen and heard
- Ensure clear, natural communication between meeting participants joining from various locations thanks to stereo speakers and acoustic echo and background noise cancellation.

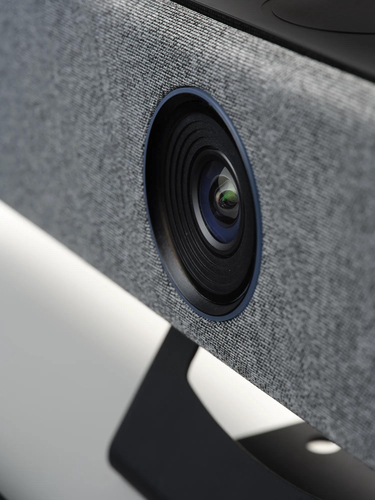

- Offer an extensive and sharp view of the meeting room and participants thanks to the 4K camera featuring 120° FOV, group framing and composition views.
Specifications
| Number of persons | 4 person(s) |
|---|---|
| Number of cameras | 1 |
| Product colour | Grey |
| Product type | Video collaboration bar |
| PTZ control | Yes |
| Wireless range | 30 m |
| HD type | 4K Ultra HD |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Built-in speaker(s) | Yes |
|---|---|
| Audio system full duplex | Yes |
| Line-out impedance | 8 Ω |
| Audio beamforming | Yes |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| RMS rated power | 10 W |
| Microphone pick-up range | 4.5 m |
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | 802.1x RADIUS, WPA2-PSK |
| Zoom capability | Yes |
|---|---|
| Digital zoom | 3x |
| Sensor type | CMOS |
| Field of view (FOV) angle | 120° |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Windows operating systems supported | Windows 11 |
|---|---|
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android 13.0, iOS 16 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Power source type | AC |
|---|---|
| AC input voltage | 110 - 220 V |
| Power consumption (typical) | 20 W |
| Power consumption (max) | 65 W |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
|---|
| Speaker dimensions (WxDxH) | 640 x 101 x 98 mm |
|---|---|
| Speaker weight | 2.5 kg |
