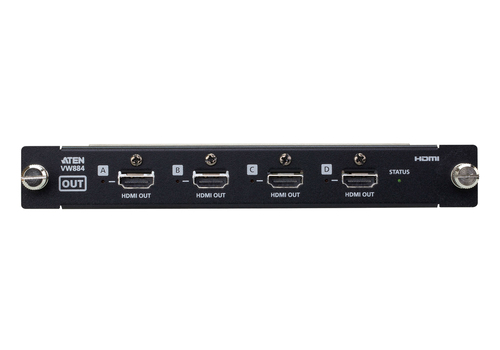

ATEN VW884 video wall processor accessory
Part number VW884
4-PORT 4K HDMI OUTPUT BOARD FOR VW SERIES
- Works with VW3620 to enable routing of 4 HDMI signals to 4 displays for optimum flexibility
- True 4K @ 60 Hz scalability – supports custom resolutions and enables upscaling of signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens
- Supports HDR, HDR+, and Dolby Vision
- Seamless Switch – unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- HDMI (Deep Color, True 4K); HDCP 2.2 Compatible
- Supports hot-swappable installation for great system integration flexibility and maintenance efficiency
- Output rates matched to input rates to prevent lagging and freezing, ensuring stable, smooth video display
- Consumer Electronics Control (CEC)
- Manufacturer
- ATEN
- Part number
- VW884
- Condition
- New
- Category
- Network Devices › Content Networking
Overview
VW884 is a 4-port 4K HDMI output board built to work with VW3620 Modular Video Wall Processor to enable routing of 4 HDMI signals to 4 displays, meeting the increasingly stringent video wall requirements in mission-critical applications. With the support for Seamless Switch™, the VW884 allows real-time video switching and stable signal transmission. The EDID Expert™ technology enables the selection of optimum EDID settings for smooth power-up, high quality display and use of the best video resolutions across different screens. A True 4K scaler is built into VW884 to handle different video resolutions. In addition, the VW884 supports hot-swappable installation to give system integrators great flexibility and efficiency for maintenance.
Specifications
| Product type | Output board |
|---|---|
| Product colour | Black |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Maximum refresh rate | 30 Hz |
| HDMI output ports quantity | 4 |
|---|
| Width | 271 mm |
|---|---|
| Depth | 193 mm |
| Height | 27.4 mm |
| Weight | 920 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
