Overview

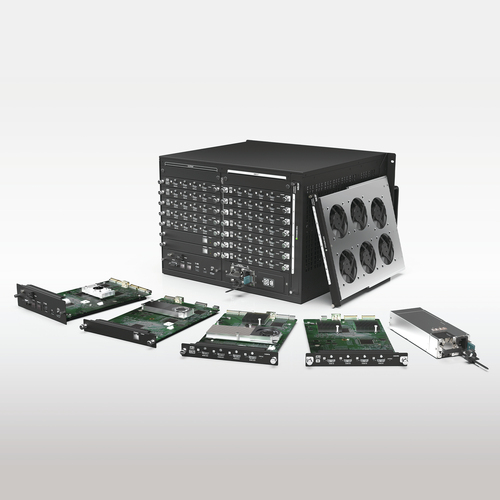

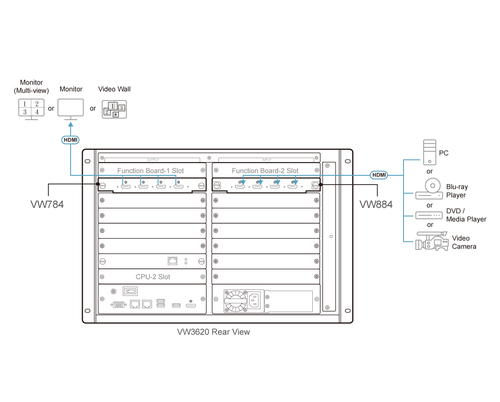

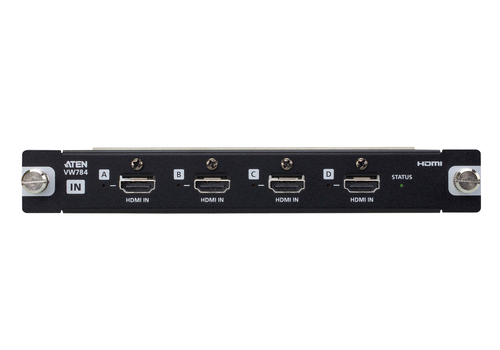

VW784 is a 4-port 4K HDMI input board built to work with VW3620 Modular Video Wall Processor to take 4 HDMI sources, meeting the increasingly stringent video wall requirements in mission-critical applications. With the support for Seamless Switch™, the VW784 allows real-time video switching and stable signal transmission. The EDID Expert™ technology enables the selection of optimum EDID settings for smooth power-up, high quality display and use of the best video resolutions across different screens. In addition, the VW784 supports hot-swappable installation to give system integrators great flexibility and efficiency for maintenance.
Specifications
Design
| Product colour | Black, Green, Metallic |
|---|
| Housing material | Metal |
|---|
Features
| HDCP | Yes |
|---|
| HDCP version | 2.2 |
|---|
| Maximum resolution | 4096 x 2160 pixels |
|---|
Ports & interfaces
| HDMI input ports quantity | 4 |
|---|
Power
| Power consumption (max) | 17.71 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
Logistics data
| Country of origin | Taiwan |
|---|
| Master (outer) case gross weight | 4.4 kg |
|---|
| Master (outer) case length | 350 mm |
|---|
| Master (outer) case width | 255 mm |
|---|
| Master (outer) case height | 272 mm |
|---|
Weight & dimensions
| Width | 271 mm |
|---|
| Depth | 193 mm |
|---|
| Height | 274 mm |
|---|
| Weight | 730 g |
|---|
| Package width | 253 mm |
|---|
| Package depth | 338 mm |
|---|
| Package height | 59 mm |
|---|
| Package weight | 1.04 kg |
|---|
