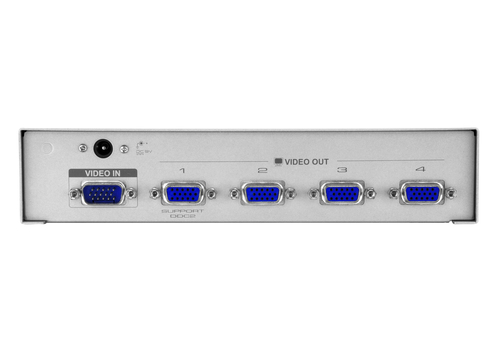

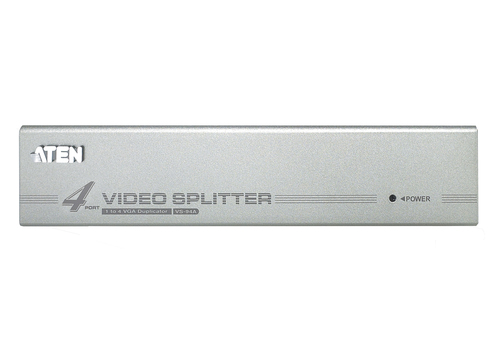

ATEN VS94A video splitter VGA 4x VGA
Part number VS94A
VS94A - MONITOR SWITCH - PORTS QTY: 4 - EXTERNAL
- One video input to 4 video outputs
- Cascadable to 3 levels - provides up to 64 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 30 m *
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
- * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
- Manufacturer
- ATEN
- Part number
- VS94A
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The VS94A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to four outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 64 displays, and offering bandwidth up to 350 MHz, the VS94A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Specifications
| Video port type | VGA |
|---|---|
| Video in | 1 x HDB-15 Male (Blue) |
| Video out | 4x VGA |
| Video ports quantity | 4 |
| DC-in jack | Yes |
| Maximum resolution | 1920 x 1400 pixels |
|---|---|
| Full HD | Yes |
| Maximum operating distance | 30 m |
| Bandwidth | 350 MHz |
| Rack mounting | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| AC input voltage | 9 V |
|---|---|
| Power consumption (typical) | 2.03 W |
| Dimensions (WxDxH) | 200 x 75.1 x 44 mm |
|---|---|
| Weight | 610 g |
| User guide | Yes |
|---|---|
| AC adapter included | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Harmonized System (HS) code | 85176990 |
|---|
