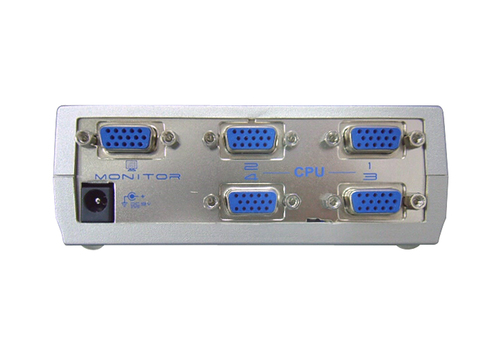

ATEN VS491 video switch VGA
Part number VS491
4PORT VIDEO SWITCH 1920X1440 VGA SVGA XGA 15PIN HDB
- Displays the video output of four computers on a single monitor or projector.
- Computer selection via pushbutton switch.
- Electronic switching for greater reliability and durability.
- Easy Installation - No Software Required.
- Long distance transmission - up to 10m
- High resolution video - up to 1920 x 1440.
- DDC, DDC2, DDC2B Compatible.
- Supports VGA, XGA. SVGA, UXGA and Multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
- Manufacturer
- ATEN
- Part number
- VS491
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
VS491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.
Specifications
| Video port type | VGA |
|---|---|
| VGA (D-Sub) ports quantity | 5 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 4 |
| Video in | 4 x HDB-15 Female (Blue) |
| Video out | 1 x HDB-15 Female (Blue) |
| DC-in jack | Yes |
| Material | Metal, Plastic |
|---|---|
| Product colour | Silver |
| Maximum operating distance | 10 m |
| Rack mounting | Yes |
| Bandwidth | 150 MHz |
| Maximum resolution | 1920 x 1440 pixels |
| Rack capacity | 1U |
| Input impedance | 75 Ω |
| Output impedance | 75 Ω |
| Power consumption (typical) | 1.35 W |
|---|
| Width | 120 mm |
|---|---|
| Depth | 65.2 mm |
| Height | 44 mm |
| Weight | 180 g |
| AC adapter included | Yes |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
|---|
