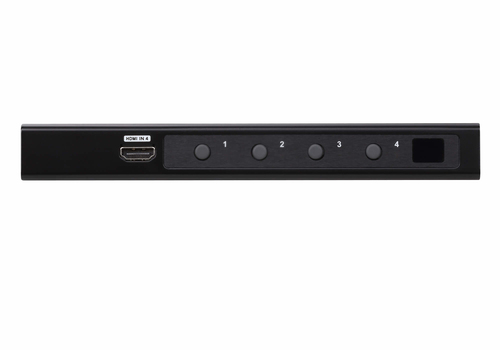

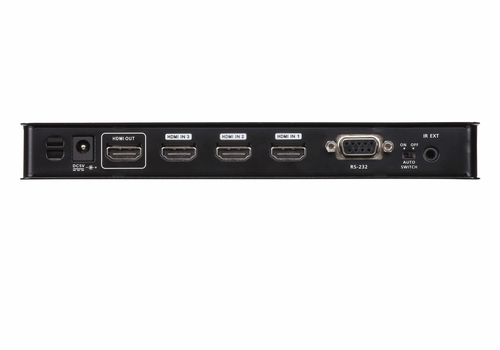

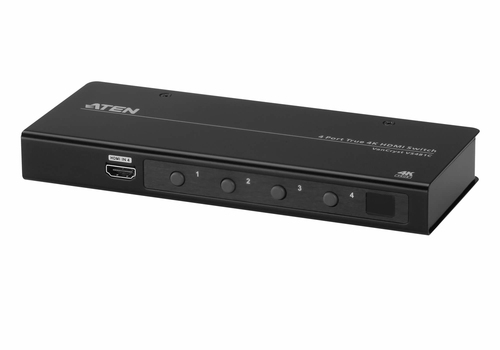

ATEN VS481C video switch HDMI
Part number VS481C
4-PORT TRUE 4K HDMI SWITCH
- Allows up to 4 HDMI sources to be connected to one HDMI display
- HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
- Supports HDR10+
- Supports IR extension
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- LED indication of source device status
- Plug-and-play
- Manufacturer
- ATEN
- Part number
- VS481C
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Specifications
| Video port type | HDMI |
|---|---|
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 4 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Material | Metal |
|---|---|
| Product colour | Black |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 3 m |
| Bandwidth | 18 Gbit/s |
| LED indicators | Yes |
| Bandwidth | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| Remote control type | IR |
| 3D | Yes |
| HD type | HD |
| Colour depth | 12 bit |
| Input impedance | 100 Ω |
| HDCP version | 2.2 |
| Power consumption (typical) | 5 W |
|---|---|
| Power plug type | Type A |
| Width | 821 mm |
|---|---|
| Depth | 200 mm |
| Height | 250 mm |
| Weight | 470 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Harmonized System (HS) code | 85176990 |
|---|---|
| Products per master (outer) case | 10 pc(s) |
