ATEN VS481B video switch HDMI
Part number VS481B
4-PORTHDMISWITCHSUPPORT4K2K
- Allows up to four HDMI A/V sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- HDMI (3D, Deep Color, 4kx2k); HDCP compatible
- Auto switching modes for auto port selection
- Long distance transmission – up to 15 m (24 AWG)
- Consumer Electronics Control (CEC) support
- Supports Dolby True HD and DTS HD Master Audio

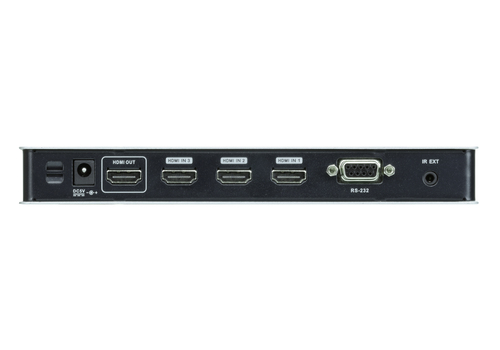

- Built-in bi-directional RS-232 serial remote port for high-end system control
- Instant switching between HDMI input sources
- Supports IR extension using a IR extension cable *
- LED indication of video source devices
- Manufacturer
- ATEN
- Part number
- VS481B
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview

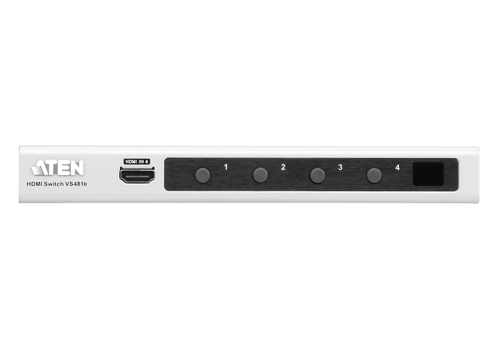

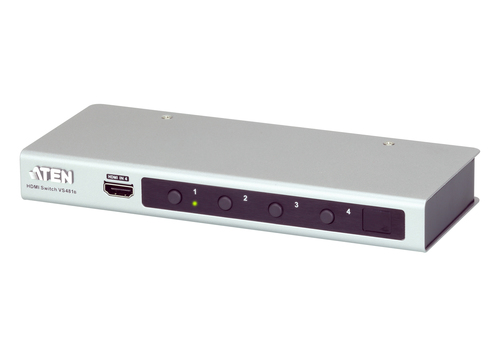

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
Specifications
| Video port type | HDMI |
|---|---|
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Material | Metal |
|---|---|
| Product colour | Black, White |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Supported video modes | 480p, 720p, 1080i, 1080p, 2160p |
| LED indicators | Yes |
| AC adapter output voltage | 5 V |
|---|---|
| Power consumption (typical) | 5 W |
| Width | 200 mm |
|---|---|
| Depth | 82.5 mm |
| Height | 25 mm |
| Weight | 470 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Harmonized System (HS) code | 85176990 |
|---|
