Products › Audio/Video Devices
ATEN
ATEN VS184A video splitter HDMI 4x HDMI
Part number VS184A
4 PORT HDMI SPLITTER SUPPORT 4K

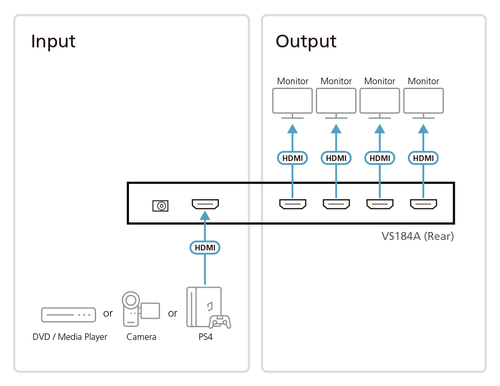

- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
- Supports resolutions of up to Ultra HD 4k x 2k
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports max. data rate of 10.2 Gbps
- Plug-and-play – no software installation required
- Note: Long distance transmission up to 20m (with ATEN 2L-7D20H)
- Manufacturer
- ATEN
- Part number
- VS184A
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
- 1GPA category
- Hardware
Overview
The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Specifications
| Video port type | HDMI |
|---|---|
| Video in | 1 |
| Video out | 4x HDMI |
| Video ports quantity | 5 |
| Connector(s) | 4 |
| DC-in jack | Yes |
| Product colour | Black |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| 3D | Yes |
| Maximum operating distance | 15 m |
| Remote control included | No |
| Rack mounting | Yes |
| HDCP | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| AC input voltage | 5.3 V |
|---|---|
| Power consumption (typical) | 6.02 W |
| USB powered | No |
| Dimensions (WxDxH) | 200 x 80 x 25 mm |
|---|---|
| Weight | 470 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Resolution | 4096 x 2160 pixels |
|---|---|
| Connector type | HDMI Type A Female |
| Number of connectors | 4 |
| Maximum cable length | 15 m |
| Maximum video resolution | 4096 x 2160 pixels |
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
