Products › Audio/Video Devices
ATEN

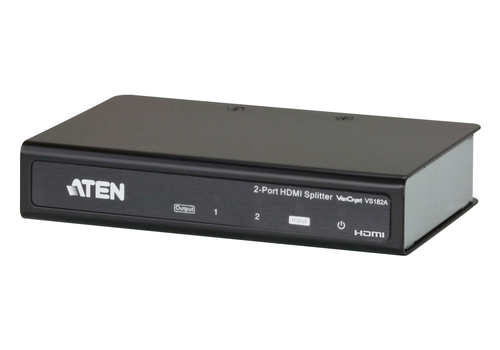

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
Part number VS182A
2 PORT HDMI SPLITTER SUPPORT 4K
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play – no software installation required
- Manufacturer
- ATEN
- Part number
- VS182A
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
- 1GPA category
- Hardware
Overview
The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Specifications
| Video port type | HDMI |
|---|---|
| Video in | 1 x HDMI Type A Female (Black) |
| Video out | 2x HDMI |
| Video ports quantity | 3 |
| DC-in jack | Yes |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 340 MHz |
| HDCP version | 1.4 |
| HDCP | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Plug and Play | Yes |
| Supported video modes | 2160i, 2160p |
| LED indicators | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| AC input voltage | 5 V |
|---|---|
| Power consumption (typical) | 3.12 W |
| Width | 80 mm |
|---|---|
| Depth | 125 mm |
| Height | 25 mm |
| Weight | 504 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 642 g |
| Manual | Yes |
|---|---|
| Cables included | HDMI |
| User guide | Yes |
| AC adapter included | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
