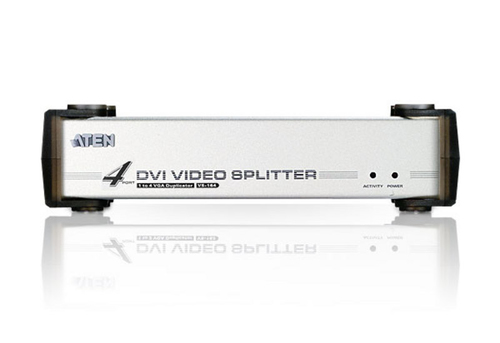

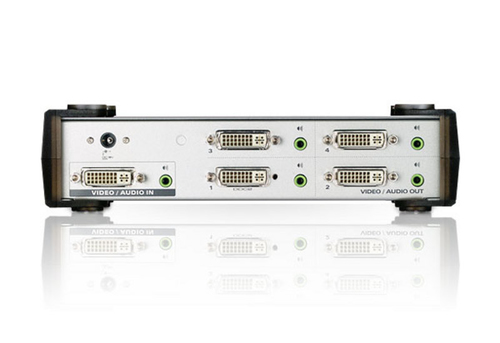

ATEN VS164 video splitter DVI 4x DVI-I
Part number VS164
4 PORT DVI VIDEO/AUDIO SPLITTER
- Video port type: DVI Video ports quantity: 5 Black, Silver
- DC-in jack
- 1920 x 1200 pixels
- Maximum operating distance: 5 m
- Bandwidth: 255 MHz
- Manufacturer
- ATEN
- Part number
- VS164
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
Features
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels - provides up to 64 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
- Installs in minutes.
- Maintains highest single link video resolution (up to 1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- HDCP Compliant.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Package Contents
- 1x 4-Port DVI Video Splitter
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
Specifications
| Video port type | DVI |
|---|---|
| Video in | 1 x DVI-I Female |
| Video out | 4x DVI-I |
| Video ports quantity | 5 |
| Audio ports quantity | 5 |
| Connector(s) | 4 |
| DC-in jack | Yes |
| Product colour | Black, Silver |
|---|---|
| Housing material | Metal |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| Maximum operating distance | 5 m |
| Bandwidth | 255 MHz |
| Rack mounting | Yes |
| HDCP | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Power LED | Yes |
| LED indicators | Link, Power |
| Mac compatibility | Yes |
| Ethernet LAN | No |
|---|
| Output voltage | 5.3 V |
|---|---|
| Power consumption (typical) | 4 W |
| USB powered | No |
| Dimensions (WxDxH) | 210 x 88 x 55 mm |
|---|---|
| Weight | 720 g |
| Package type | Box |
|---|
| Cables included | DC |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Audio input | 1 |
|---|---|
| Audio output | 4 |
| Resolution | 1920 x 120 pixels |
| Connector type | DVI-I Female |
| Number of connectors | 4 |
| Maximum cable length | 5 m |
| Cascadable | Yes |
| Maximum video resolution | 1920 x 1200 pixels |
| Exterior material | Plastic |
| Harmonized System (HS) code | 85176990 |
|---|
