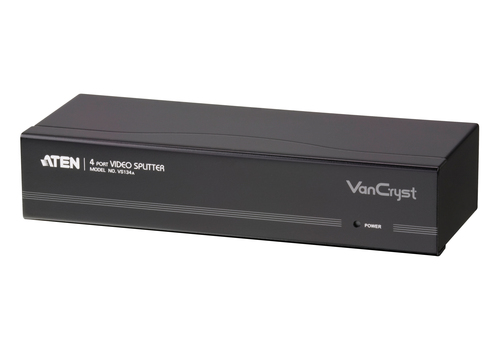

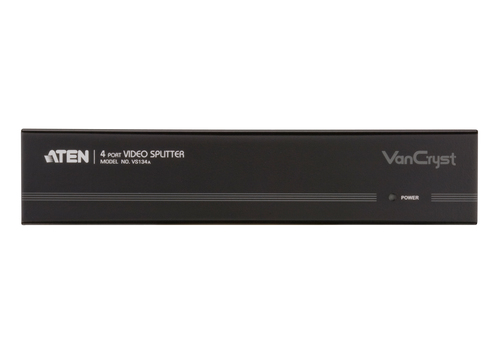

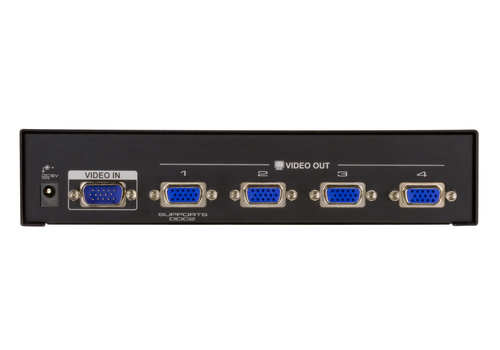

ATEN VS134A video splitter VGA 4x VGA
Part number VS134A
4-PORT VGA VIDEO SPLITTER
- One video input to 4 video outputs
- Supports up to 450 MHz bandwidth
- Cascadable to 3 levels - provides up to 64 video signals
- Long distance transmission - up to 30m *
- Superior video quality - up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
- Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
- All-metal casing
- * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
- Manufacturer
- ATEN
- Part number
- VS134A
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
- 1GPA category
- Hardware
Overview
The VS134A Video Splitter is a boosting device that duplicates a video signal from one source to 4 output devices. Cascadable to three levels, the VS134A provides up to 64 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS134A is your best choice.
Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos
Specifications
| Video port type | VGA |
|---|---|
| Video out | 4x VGA |
| Video ports quantity | 4 |
| DC-in jack | Yes |
| Product colour | Black |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| 3D | No |
| Maximum operating distance | 65 m |
| Bandwidth | 450 MHz |
| Remote control included | No |
| HDCP | No |
| Supported graphics resolutions | 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Power LED | Yes |
| Ethernet LAN | No |
|---|
| Power consumption (typical) | 0.95 W |
|---|---|
| USB powered | No |
| Dimensions (WxDxH) | 200 x 75 x 45 mm |
|---|---|
| Weight | 610 g |
| Manual | Yes |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
