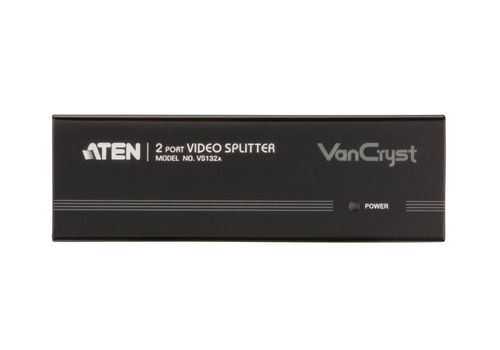

ATEN VS132A video splitter VGA 2x VGA
Part number VS132A
THE VS132A VIDEO SPLITTER IS A BOOSTING DEVICE THAT DUPLICATES A VIDEO SIGNAL FR
- One video input to 2 video outputs
- Supports up to 450 MHz bandwidth
- Cascadable to 3 levels - provides up to 8 video signals
- Long distance transmission - up to 30m *
- Superior video quality - up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
- Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
- All-metal casing
- * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
- Manufacturer
- ATEN
- Part number
- VS132A
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.
Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos
Specifications
| Video port type | VGA |
|---|---|

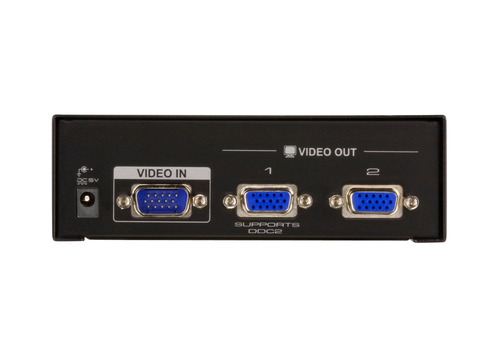

| Video in | 1 x HDB-15 Male (Blue) |
| Video out | 2x VGA |
| Video ports quantity | 3 |
| Product colour | Black |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Maximum operating distance | 30 m |
| Bandwidth | 450 MHz |
| Supported graphics resolutions | 2048 x 1536 (QXGA) |
| AC input voltage | 5 V |
|---|---|
| Power consumption (typical) | 0.78 W |
| Dimensions (WxDxH) | 130 x 75.1 x 44 mm |
|---|---|
| Weight | 420 g |
| Packaging content | 1x VS132A Video Splitter 1x Power Adapter 1x User Guide |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
