ATEN VS1208T video splitter VGA
Part number VS1208T
8PORT CAT5 AUDIOVIDEO DISTRIBUTION UNIT
- One audio/video input to 8 audio/video outputs via Cat 5e cable
- Supports local display + 8 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality – up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Manufacturer
- ATEN
- Part number
- VS1208T
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview

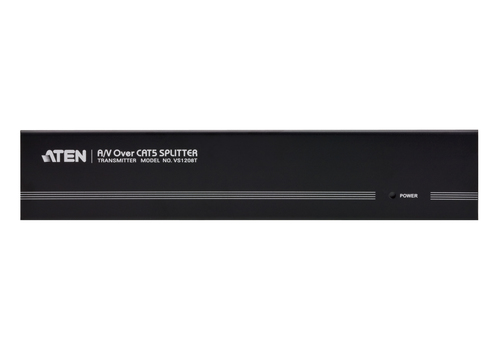

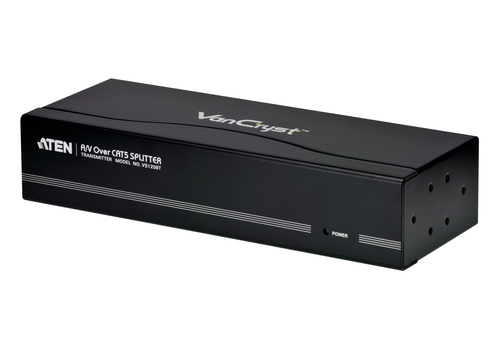

The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers*, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
Specifications
| Video port type | VGA |
|---|---|
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 8 |
| Video ports quantity | 2 |
| Audio ports quantity | 2 |

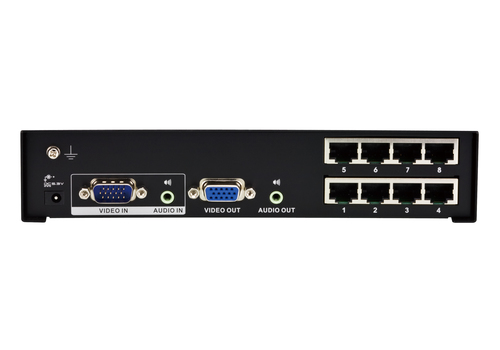

| Connector(s) | HDB-15, Mini Audio, RJ-45, DC-in |
| DC-in jack | Yes |
| Product colour | Black |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| Maximum operating distance | 300 m |
| Bandwidth | 225 MHz |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Power LED | Yes |
| Plug and Play | Yes |
| Certification | RoHS |
| Cable types supported | Cat5e |
|---|
| AC input voltage | 5 V |
|---|---|
| Power consumption (typical) | 1.64 W |
| Dimensions (WxDxH) | 74.5 x 200 x 42 mm |
|---|---|
| Weight | 640 g |
| User guide | Yes |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Harmonized System (HS) code | 85176990 |
|---|
