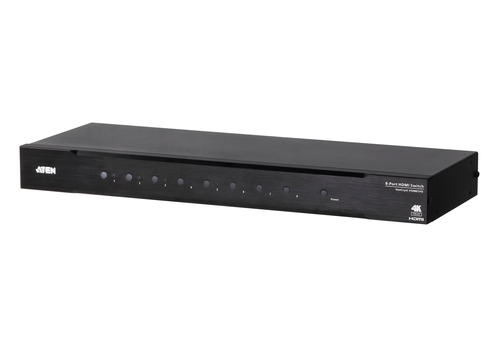

ATEN VS0801HB video switch HDMI
Part number VS0801HB
8-PORT TRUE 4K HDMI SWITCH
- Allows up to 8 HDMI sources to be connected to one HDMI display
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
- Supports HDR10+
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- Supports IR extension

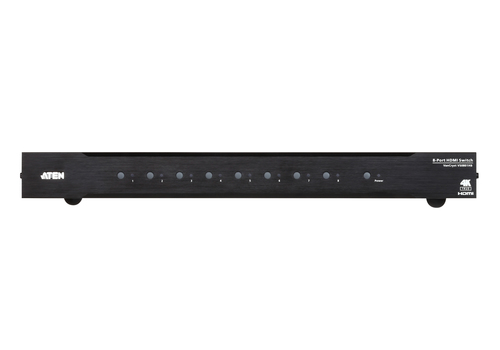

- Clear LED indication of device status
- Plug-and-play
- Rack Mountable
- Manufacturer
- ATEN
- Part number
- VS0801HB
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Specifications
| Video port type | HDMI |
|---|---|
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| HDMI in | 8 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |

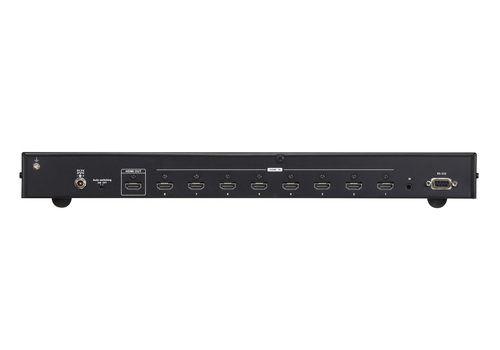

| Video in | 8 x HDMI Type A Female (Black) |
| Video out | 1 x HDMI Type A Female (Black) |
| DC-in jack | Yes |
| Material | Metal |
|---|---|
| Product colour | Black |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 3 m |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Bandwidth | 6 Gbit/s |
| Bandwidth | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| AC adapter input voltage | 5.3 V |
|---|---|
| Power consumption (typical) | 3.73 W |
| Width | 158.3 mm |
|---|---|
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2.14 kg |
| Depth (imperial) | 43.7 cm (17.2") |
| Height (imperial) | 4.39 cm (1.73") |
| Width (imperial) | 15.8 cm (6.23") |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
